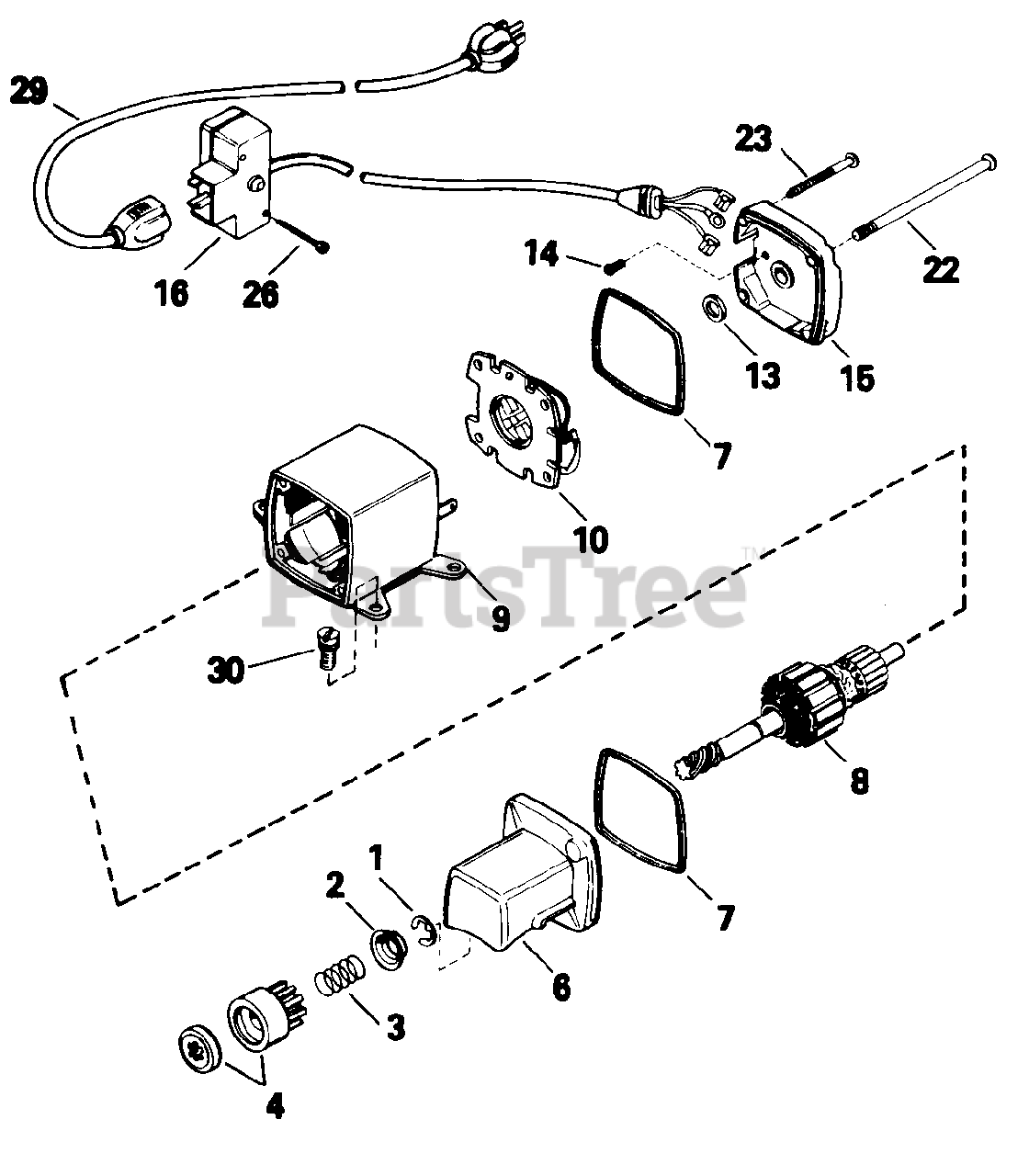

524 (318-550-100) - Cub Cadet 24" Snow Thrower Engine (1988) Tec 5.0 HP-Hs50-67267g-Starter Motor Parts Diagram

24" Snow Thrower Engine

Tec 5.0 HP-Hs50-67267g-Starter Motor Parts Diagram

  • Title

Cub Cadet 33290C

Motor, Electric Starter

$

$

Currently unavailable

1

Cub Cadet TC-31749

Ring, Retainer

$1.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-33552

Retainer, Spring

$

$

Currently unavailable

3

Cub Cadet TC-33769

Spring, Anti-Drift

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet TC-33524

Nut & Gear
(Superseded to TC-37332)

$56.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-35461

Cap Ass'y., Drive End

Note: (Incl. No. 7)

$59.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-35450

"O"-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-35460

Armature
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0

9

Cub Cadet TC-35459

Housing Ass'y.
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0

10

Cub Cadet TC-35452

Card Ass'y., Brush
(Superseded to TC-35452A)

$58.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-590500

Washer, Thrust

$1.99

$

In Stock, only 1 left!

0

14

Cub Cadet TC-33441

Screw, Ground

$

$

Not available

15

Cub Cadet TC-35453

Cap Ass'y., Commutator End

Note: (Incl. No. 7)

$41.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-35454

Box Ass'y., Switch

Note: (Incl. No. 26)

$

$

Not available

22

Cub Cadet TC-35462

Bolt, Case

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet TC-35456

Screw, Grounding

$1.99

$

In Stock, only 3 left!

0

26

Cub Cadet TC-650819

Screw, Hex Hd. Self-Tap, 6-32 x 21/2

$1.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-32450A

Cord, Extension (10'6")
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-650759

Screw, Hex Hd. Self-Tap, 1/4-20 x 11/16

$1.99

$

Usually ships in 3-12 days

0
