524 (315-616E100) - Cub Cadet 24" Snow Thrower (1995) Frame Assembly Parts Diagram

24" Snow Thrower

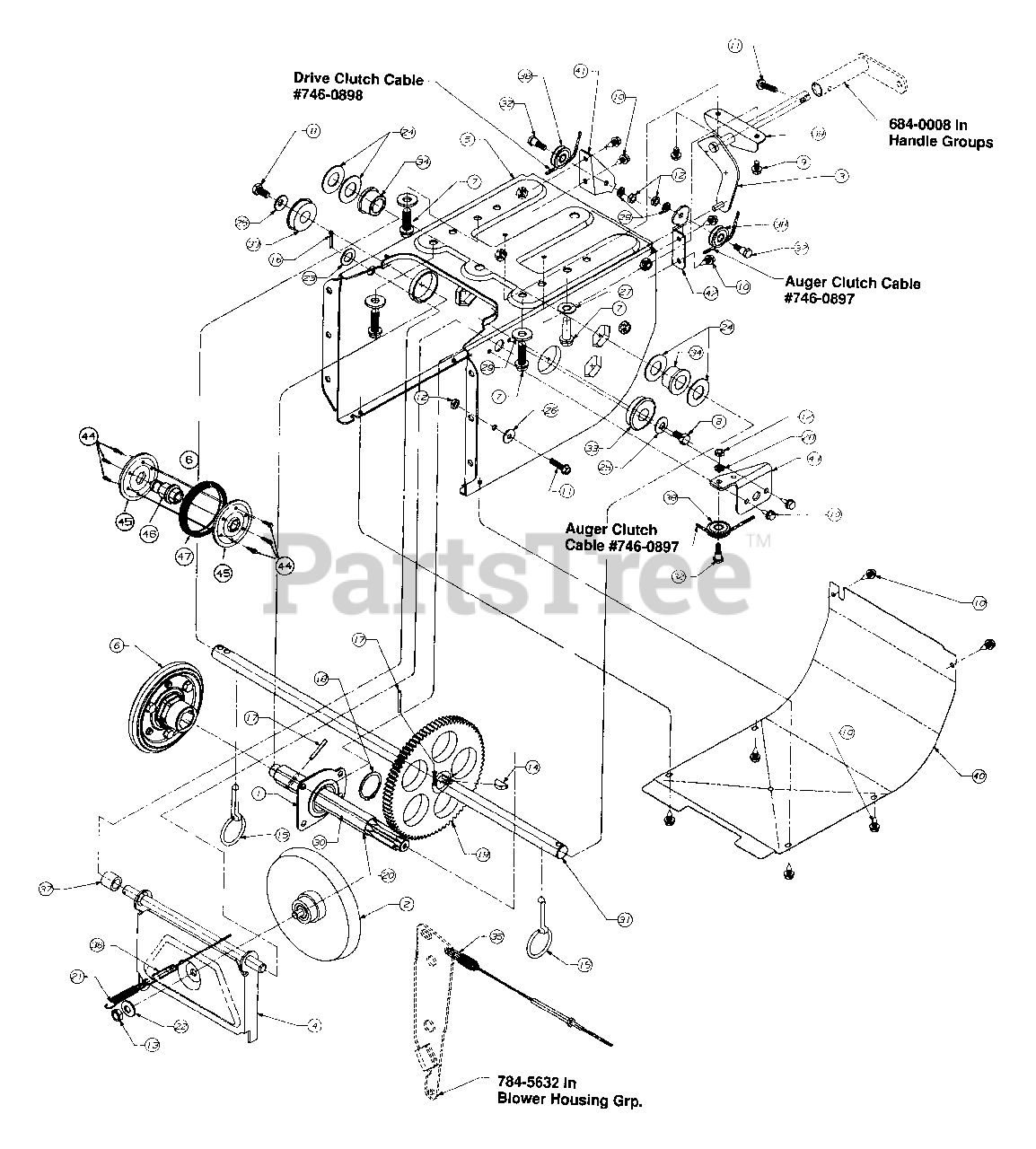

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0063

Bearing Ass'y.

$92.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 656-0009

Ass'y., Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 8

0

3

Cub Cadet 684-0013

Rod Shift, Wheel Drive

$

$

Not available

4

Cub Cadet 684-0021

Brkt. Ass'y. Friction Wheel
(Superseded to 984-0021-0637)

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 684-0030

Frame Ass'y., 600 S/T

Variations

Cub Cadet 684-0030-0629

FRAME - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0030-0637

FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0030-0638

FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0030-0665

FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

Cub Cadet 684-0042

Wheel Friction
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

7

Cub Cadet 710-0502A

Hex Self-Tap Screw

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0538

Hex, Screw

$4.49

$

In Stock, Qty 9

0

9

Cub Cadet 710-0653

Scr., Hex Wash. Hd., TT 1/4-20 x .3

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet 710-0776A

Hex Self-Tap Scr.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0788

Screw, Hex

$7.49

$

In Stock, only 2 left!

0

12

Cub Cadet 712-0298

Nut, Hex
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0711

Nut, Hex

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0126

Key

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet 714-0143

Pin, Klick
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

16

Cub Cadet 714-0474

Pin, Cotter

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 715-0249

Pin, Roll
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 716-0185

Ring, Retainer

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-1414

Gear

$

$

Not available

20

Cub Cadet 717-1415A

Shaft, Hex

$

$

Not available

21

Cub Cadet 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0188

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0270

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 736-3052

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

30

Lubricant

$

$

Not available

31

Cub Cadet 738-0869

Axles

$139.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-0830

Axle

$

$

Not available

32

Cub Cadet 738-0870

Screw, Shoulder

$

$

Not available

33

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

34

Cub Cadet 741-0598

Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

35

Cub Cadet 746-0897

Cable, Auger
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

36

Cub Cadet 746-0898

Cable, Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

37

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

38

Cub Cadet 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

39

Cub Cadet 784-5590

Frame, Shift Bracket

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 784-5638

Cover, Frame
(Superseded to 784-5638A)

Variations

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

Cub Cadet 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

41

Cub Cadet 784-5644

Bracket, Drive Cable Roller

Variations

Cub Cadet 784-5644-0637

BRACKET-DRIVE CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 784-5646

Brkt., Auger Clutch Cable Guide

Variations

Cub Cadet 784-5646-0637

BRACKET-AUGER CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 784-5658

Brkt., Front Support Guide
(Superseded to 784-5658-0637)

Variations

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

44

Cub Cadet 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5677

Friction Plate

$

$

Not available

46

Cub Cadet 718-0240

Friction Wheel Hub

$

$

Not available

47

Cub Cadet 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0
