Cub Cadet 524 (314-616E100) - Cub Cadet 24" Snow Thrower (1994) Snow Thrower - Part III Parts Lookup with Diagrams

1

Cub Cadet 684-0042

Friction Wheel Ass'y. Comp.

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

1A

Cub Cadet 618-0063

Friction Wheel Brg. Ass'y.

$92.99

$

Usually ships in 3-6 days

2

Cub Cadet 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

(Superseded to 684-0008A-0637) 

Variations

Cub Cadet 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

Cub Cadet 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

$50.99

$

Usually ships in 3-6 days

3

Cub Cadet 684-0013

Shift Rod Ass'y.

$

Not available 

4

Cub Cadet 684-0030-0629

FRAME - SILVER FLAKE (0629)

Variations

Cub Cadet 684-0030-0629

FRAME - SILVER FLAKE (0629)

$

Not available 

Cub Cadet 684-0030-0637

FRAME - POWDER BLACK (0637)

$

Not available 

Cub Cadet 684-0030-0638

FRAME - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 684-0030-0665

FRAME - YARDMAN GREEN (0665)

$

Not available 

$

Not available 

5

Cub Cadet 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

6

Cub Cadet 710-0653

Hex Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 7

7

Cub Cadet 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 1 left!

8

Cub Cadet 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 16

10

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.

(Superseded to 912-0287) 

$4.99

$

Usually ships in 3-6 days

11

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.

(Superseded to 912-0298) 

$6.49

$

Usually ships in 3-6 days

12

Cub Cadet 717-1415

Gear Shaft

$

Not available 

14

Cub Cadet 736-0176

Fl-Wash. .265" I.D. x .938" O.D.

$4.99

$

In Stock, Qty 20+

15

Cub Cadet 736-0329

L-Wash. 1/4" I.D.

(Superseded to 936-0329) 

$4.49

$

In Stock, Qty 16

16

Cub Cadet 738-0870

Shld. Bolt 5/16 Dia. x .35" Lg.

$

Not available 

17

Cub Cadet 741-0563

Ball Brg. w/Snap Ring

(Superseded to 941-0563) 

$36.99

$

In Stock, only 3 left!

18

Cub Cadet 756-0625

Cable Roller Guide

$9.49

$

In Stock, Qty 11

19

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

Not available 

$15.99

$

Usually ships in 3-6 days

20

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

(Superseded to 784-5638A) 

Variations

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

Not available 

Cub Cadet 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

Not available 

Cub Cadet 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

Not available 

Cub Cadet 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

Not available 

Cub Cadet 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

Not available 

Cub Cadet 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

Not available 

Cub Cadet 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

Not available 

Cub Cadet 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

Not available 

$

Not available 

21

Cub Cadet 784-5644-0637

BRACKET-DRIVE CABLPOWDER BLAC - POWDER BLACK (0637)

Variations

Cub Cadet 784-5644-0637

BRACKET-DRIVE CABLPOWDER BLAC - POWDER BLACK (0637)

$

Not available 

$

Not available 

22

Cub Cadet 784-5646-0637

BRACKET-AUGER CABLPOWDER BLAC - POWDER BLACK (0637)

Variations

Cub Cadet 784-5646-0637

BRACKET-AUGER CABLPOWDER BLAC - POWDER BLACK (0637)

$

Not available 

$

Not available 

23

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

(Superseded to 784-5658-0637) 

Variations

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

Not available 

$

Not available 

25

Cub Cadet 734-1714-0911

WHEEL ASSEMBLY 13 x 5 - Carlisle Gray (0911)

Variations

Cub Cadet 734-1714-0911

WHEEL ASSEMBLY 13 x 5 - Carlisle Gray (0911)

$

Not available 

Cub Cadet 734-1714-0915

WHEEL ASSEMBLY 13 x 5 - Duro Gray (0915)

$

Not available 

Cub Cadet 734-1714-0931

WHEEL ASSEMBLY 13 x 5 - Carlisle Beige (0931)

$

Not available 

Cub Cadet 734-1714-0985

WHEEL ASSEMBLY 13 x 5 - Duro Green (0985)

$

Not available 

$

Not available 

26

Cub Cadet 734-0255

Air Valve

(Superseded to 934-0255) 

$4.49

$

In Stock, Qty 20+

27

Cub Cadet 734-1527-0901

TIRE-SNOW HOG 13X5CARLISLE - Carlisle (0901)

Variations

Cub Cadet 734-1527-0901

TIRE-SNOW HOG 13X5CARLISLE - Carlisle (0901)

$

Not available 

Cub Cadet 734-1527-0905

TIRE-SNOW HOG 13X5DURO - Duro (0905)

$

Not available 

$

Not available 

28

Cub Cadet 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

Variations

Cub Cadet 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

Not available 

Cub Cadet 734-1713-0499

RIM ASSEMBLY 6.0 x 3.25 - CUB BEIGE (0499)

$

Not available 

Cub Cadet 734-1713-0674

RIM ASSEMBLY 6.0 x 3.25 - YARDMAN YELLOW (0674)

$

Not available 

Cub Cadet 734-1713-0688

RIM ASSEMBLY 6.0 x 3.25 - SPRING GREEN (0688)

$

Not available 

$

Not available 

29

Cub Cadet 741-0401

Sleeve Bearing .752" I.D.

(Superseded to 941-0401) 

$7.49

$

In Stock, Qty 6

30

Cub Cadet 714-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia.

$4.99

$

In Stock, Qty 20+

31

Cub Cadet 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

32

Cub Cadet 714-0143

Klik Pin

(Superseded to 714-0143A) 

$6.49

$

In Stock, only 2 left!

33

Cub Cadet 717-1414

79 Tooth Gear

$

Not available 

34

Cub Cadet 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

35

Cub Cadet 738-0869

Wheel Axle

$139.99

$

Usually ships in 3-6 days

36

Cub Cadet 741-0598

Hex Flange Brg. .752" I.D.

(Superseded to 941-0598) 

$12.99

$

In Stock, Qty 20+

40

Cub Cadet 710-0502

Hex Bolt 3/8-16 x 1.25"

(Superseded to 710-0502A) 

$6.99

$

In Stock, Qty 11

41

Cub Cadet 715-0249

Spr. Roll Pin 1.12" Lg.

(Superseded to 915-0249) 

$6.99

$

In Stock, Qty 19

42

Cub Cadet 736-3052

Fl-Wash. .406" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

43

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

44

Cub Cadet 718-0240

Friction Wheel Hub

$

Not available 

45

Cub Cadet 784-5677

Friction Plate

$

Not available 

46

Cub Cadet 735-0243

Friction Wheel Rubber

(Superseded to 935-0243B) 

$15.99

$

In Stock, Qty 20+

47

Cub Cadet 710-3007

Hex Wash. Tap Scr. 3/8" Lg.

$4.49

$

In Stock, Qty 20+

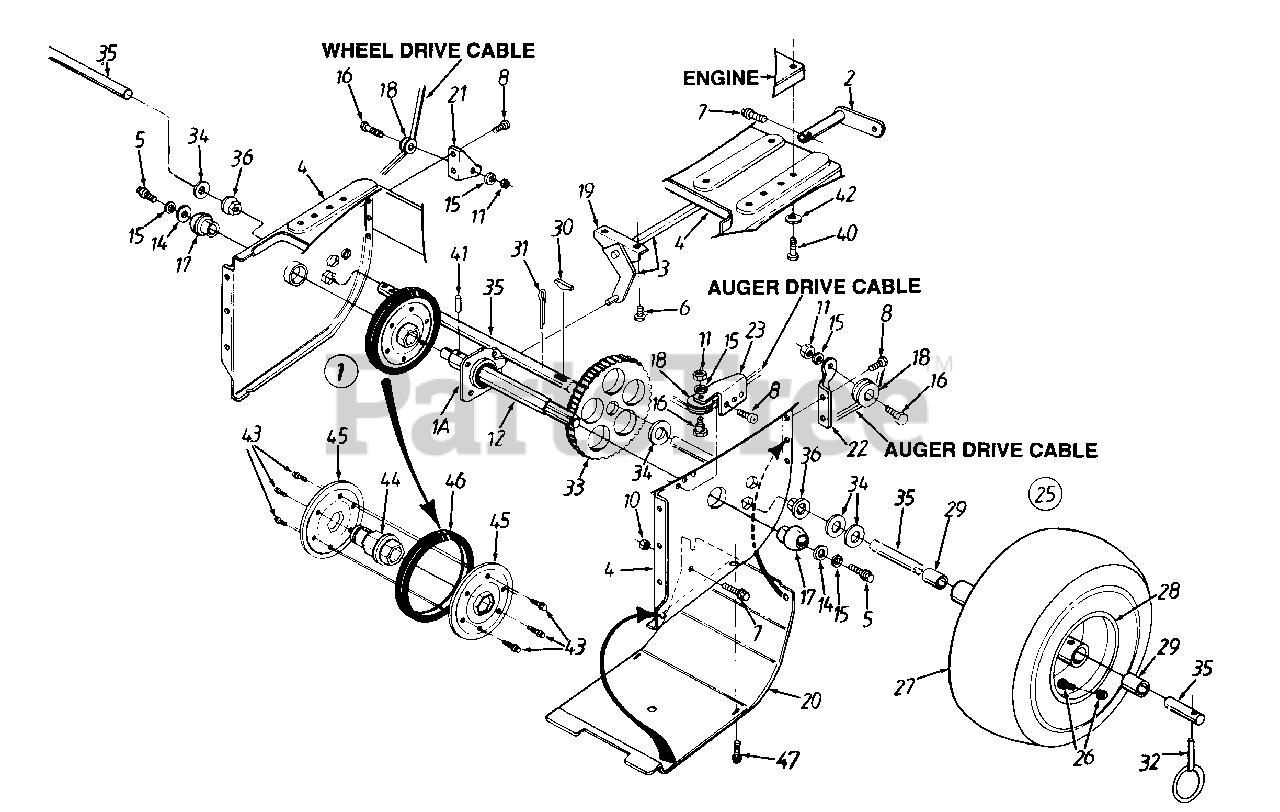

524 (314-616E100) - Cub Cadet 24" Snow Thrower (1994) Snow Thrower - Part III Parts Diagram
