524 (314-616E100) - Cub Cadet 24" Snow Thrower (1994) Snow Thrower - Part I Parts Diagram

24" Snow Thrower

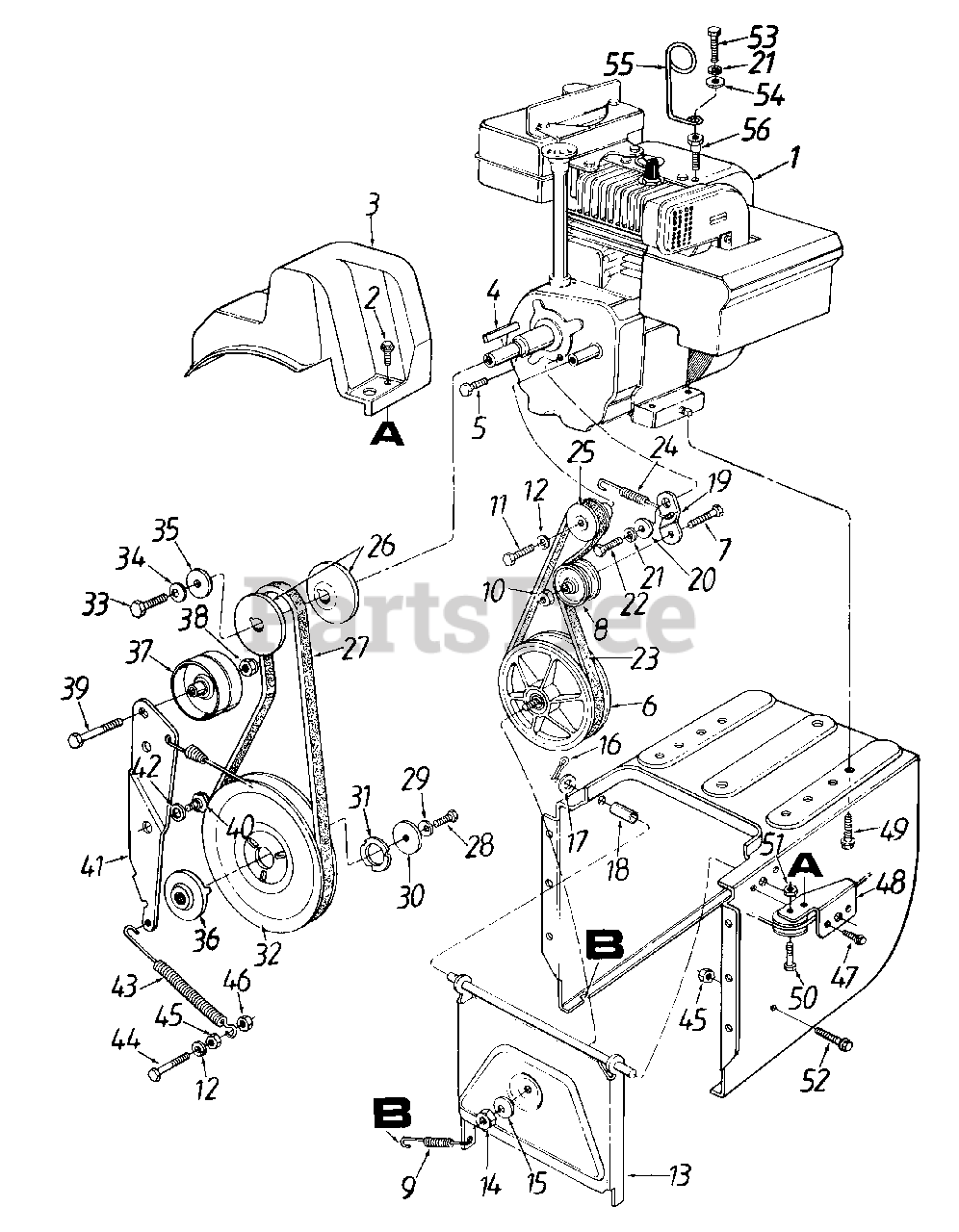

Snow Thrower - Part I Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

4

Cub Cadet 714-0122

Sq.-Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3166

Hex Patch Bolt 5/16-24 x 1" Lg. (Gr.5)
(Superseded to 710-0627)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 656-0009

Friction Wheel Disc Ass'y.
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

7

Cub Cadet 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

9

Cub Cadet 732-0264

Ext. Spring 2.5" Lg.
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0230

Hex Bolt 1/4-28 x .5" Lg.

$

$

Not available

12

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 684-0021

Friction Wheel Support Brkt. Ass'y.
(Superseded to 984-0021-0637)

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0474

Cotter Pin 1/8" x .75" Lg.

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 748-0190

Spacer .508" I.D. x .75" O.D.

$6.49

$

In Stock, Qty 11

0

19

Cub Cadet 05896

Drive Clutch Idler Bracket

$

$

Not available

20

Cub Cadet 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

24

Cub Cadet 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

25

Cub Cadet 756-0959

2" Dia. Pulley
(Superseded to 956-0959)

$

$

Not available

26

Cub Cadet 756-0569

3/8 "V"-Pulley Half

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 754-0431

"V"-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0627

Hex Cap L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0505

Fl-Wash. .34" I.D. x 1.5" O.D.

$6.49

$

In Stock, Qty 11

0

31

Cub Cadet 736-0507

Brg. Retaining Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

34

Cub Cadet 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

36

Cub Cadet 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

37

Cub Cadet 756-0178

Fl-Idler 2.75" O.D.

$20.99

$

In Stock, only 4 left!

0

38

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 2 left!

0

41

Cub Cadet 784-5632

Auger Idler Brkt.
(Superseded to 984-0064-0637)

Variations

Cub Cadet 784-5632-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

42

Cub Cadet 736-0174

Wave Wash. .66" I.D. x .88"

$6.99

$

In Stock, Qty 7

0

43

Cub Cadet 732-0611

Ext. Spring 3.6" Lg.
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

44

Cub Cadet 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

45

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

46

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

47

Cub Cadet 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

48

Cub Cadet 784-5658

Front Support Brkt. Guide
(Superseded to 784-5658-0637)

Variations

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

49

Cub Cadet 710-0502

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

50

Cub Cadet 738-0870

Shld. Bolt 5/16" Dia. x .35" Lg.

$

$

Not available

51

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 2 left!

0

53

Cub Cadet 710-1087

Hex Bolt 5/16-18 x 5/8" Lg.
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

54

Cub Cadet 736-0159

Fl-Wash. .349" I.D. x .879" O.D.

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 711-0953

Engine Stud

$

$

Not available
