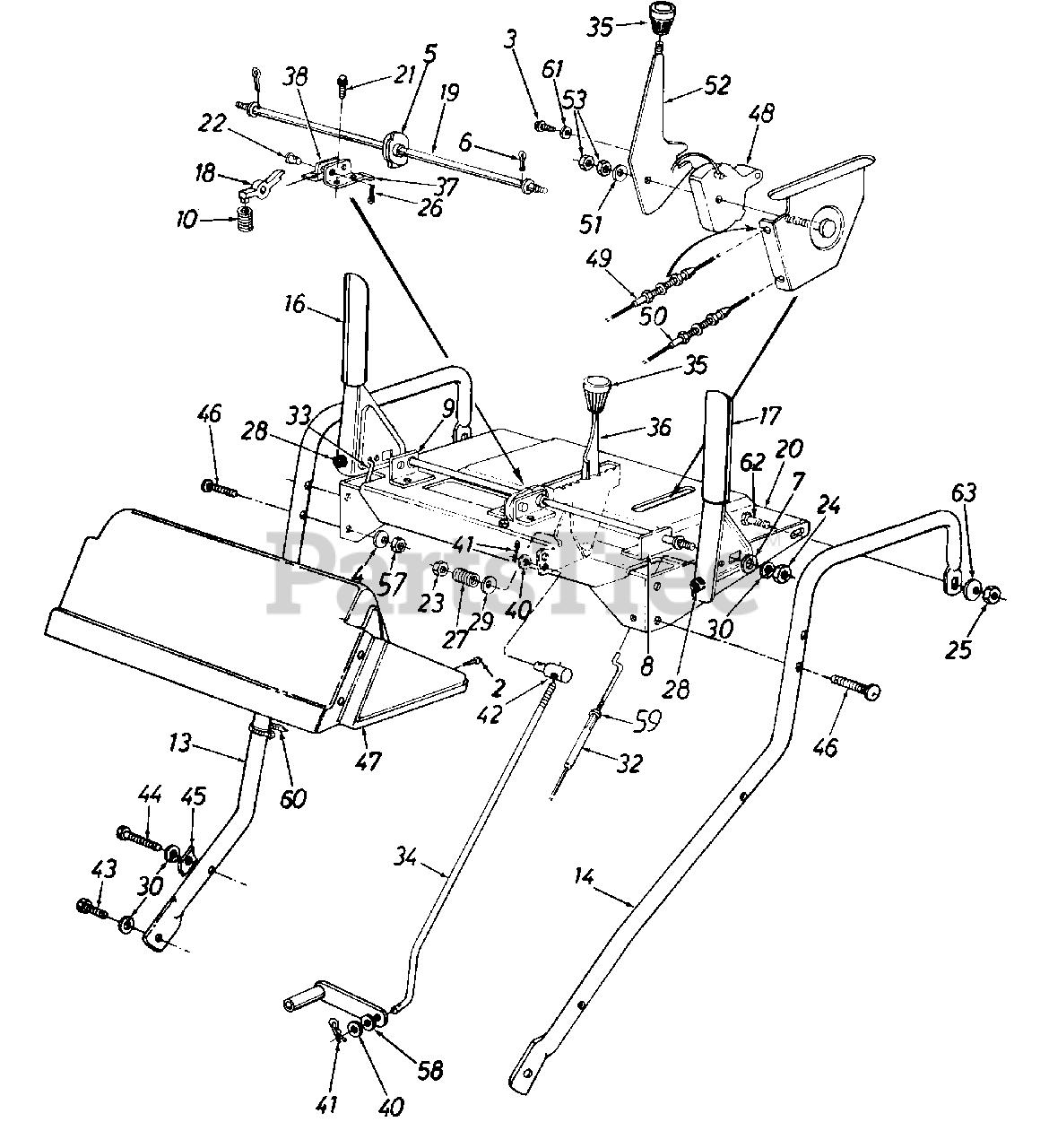

524 (314-616E100) - Cub Cadet 24" Snow Thrower (1994) Snow Thrower Parts Diagram

24" Snow Thrower

Snow Thrower Parts Diagram

  • Title
2

Cub Cadet 710-0351

Truss Mach. B-Tap Scr. #10 x .5

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0242

Bell-Wash. .325" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 736-0509

Washer (Special) .72" O.D.

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 784-5681

Handle Support Brkt.--L.H.

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 784-5682

Handle Support Brkt.--R.H.
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 749-0908

Handle--R.H.
(Superseded to 749-0908A-0637)

$

$

Not available

14

Cub Cadet 749-0909

Handle--L.H.
(Superseded to 749-0909-0637)

Variations

Cub Cadet 749-0909-0637

HANDLE-LH-C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 684-0036

Engagement Handle--R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 684-0037

Engagement Handle--L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

18

Cub Cadet 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

19

$22.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 684-0032A

Handle Panel Support

Variations

Cub Cadet 684-0032A-0483

HANDLE PANEL SUPPORT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0032A-0498

HANDLE PANEL SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0032A-0637

HANDLE PANEL SUPPORT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0032A-0638

HANDLE PANEL SUPPORT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0032A-0662

HANDLE PANEL SUPPORT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0032A-0665

HANDLE PANEL SUPPORT - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 711-0946

Clevis Pin .437" Dia. x .65" Lg.

$

$

Not available

23

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

24

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

26

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

27

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 2 left!

0

29

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

33

Cub Cadet 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

34

Cub Cadet 747-0798

Shift Rod
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

36

Cub Cadet 784-0297

Shift Handle

$

$

Not available

37

Cub Cadet 784-5679

Handle Brkt.--L.H.
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 784-5680

Handle Brkt.--R.H.
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

41

Cub Cadet 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

43

Cub Cadet 710-0538

Hex Bolt 5/16-18 X .62" Lg. (Special)

$4.49

$

In Stock, Qty 7

0

44

Cub Cadet 710-3180

Hex Bolt 5/16-18 X 1.75" Lg. (Gr. 5)

$5.49

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 18

0

46

Cub Cadet 710-1250

Curved Carr. Bolt 5/16-18 X 1.5" Lg.

$4.99

$

In Stock, only 3 left!

0

47

Cub Cadet 731-1333

Handle Panel

$

$

Not available

48

Cub Cadet 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

49

Cub Cadet 746-0896

Chute Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

50

Cub Cadet 746-0901

Chute Control Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 13

0

52

Cub Cadet 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

57

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0271

Spr. Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

Cub Cadet 712-0121

Hex Nut #10-24 Thd.

Note: (Incl. w/Ref. 32 & 33

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0506

Washer (Special) 1.25" O.D.
(Superseded to 736-0506A)

$

$

Not available

62

Cub Cadet 710-0252

Hex Bolt 1/4-20 X .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0
