524 (312-550-110) - Cub Cadet 24" Snow Thrower Engine (1992) Tec 5 HP Engine Assembly Parts Diagram

24" Snow Thrower Engine

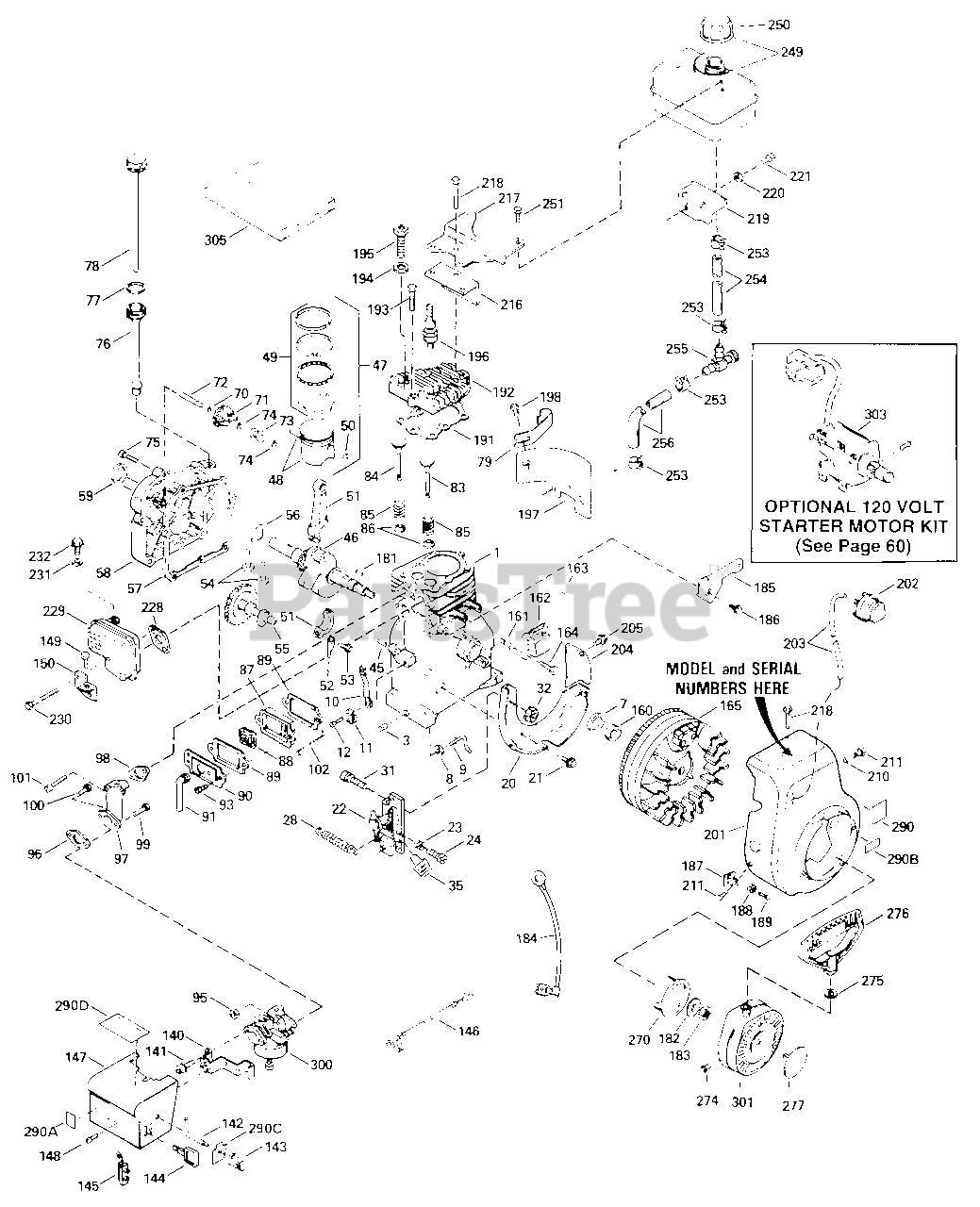

Tec 5 HP Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-33674B

Cylinder Ass'y.

Note: (Incl. Nos. 3, 7 & 45)

$

$

Currently unavailable

3

Cub Cadet TC-27642

Plug, Pipe, 1/4-18

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-32600

Seal, Oil

$

$

Not available

8

Cub Cadet TC-28277

Washer, Flat

$1.99

$

In Stock, only 4 left!

0

9

Cub Cadet TC-31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet TC-31510

Lever, Governor

$

$

Not available

11

Cub Cadet TC-31335

Clamp, Governor Lever

$1.99

$

In Stock, only 3 left!

0

12

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

20

Cub Cadet TC-33342

Baffle, Blower Housing

$

$

Currently unavailable

21

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4 -20 x 5/8

$1.99

$

In Stock, only 2 left!

0

22

Cub Cadet TC-33858A

Control Ass'y., Bracket
(Superseded to TC-36677)

Note: (Incl. Nos. 23, 27, 31 & 32)

$47.99

$

In Stock, only 1 left!

0

23

Cub Cadet TC-31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-650549

Screw, Fil. Hd., 5-40 x 7/16
(Superseded to TC-651029)

$1.99

$

In Stock, only 2 left!

0

28

Cub Cadet TC-31426

Spring, Extension

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-650139

Screw, Fil. Hd. Sems, 8-32 x 1/2

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-30322

Nut, Lock, 8-32

$1.99

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-35440

Knob, Speed Control

$3.99

$

In Stock, only 1 left!

0

45

Cub Cadet TC-26727

Pin, Dowel

$1.99

$

In Stock, Qty 5

0

46

Cub Cadet TC-34740

Crankshaft Ass'y.

$137.99

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-34535

Piston, Pin & Ring Ass'y. (Std.)

Note: (Incl. Nos. 48, 49 & 50)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet TC-34536

Piston, Pin & Ring Ass'y. (.010 Oversize)

Note: (Incl. Nos. 48,49 & 50)

$

$

Not available

Cub Cadet TC-34537

Piston, Pin & Ring Ass'y. (.020 Oversize)

Note: (Incl. Nos. 48, 49 & 50)

$

$

Not available

48

Cub Cadet TC-33562B

Piston & Pin Ass'y. (Std.)

Note: (Incl. No. 50)

$44.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-33563B

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 50)

$

$

Not available

Cub Cadet TC-33564B

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 50)

$

$

Currently unavailable

49

Cub Cadet TC-33567

Ring Set, Piston (Std.)

$26.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-33568

Ring Set, Piston (.010 Oversize)

$

$

Not available

Cub Cadet TC-33569

Ring Set, Piston (.020 Oversize)

$

$

Currently unavailable

50

Cub Cadet TC-20381

Ring, Piston Pin Retaining

$1.99

$

In Stock, Qty 7

0

51

Cub Cadet TC-32875

Rod Ass'y., Connecting
(Superseded to TC-32875B)

Note: (Incl. Nos. 52 & 53)

$47.99

$

In Stock, only 1 left!

0

52

Cub Cadet TC-32654

Dipper, Oil

$

$

Currently unavailable

53

Cub Cadet TC-32610A

Screw, Connecting Rod

$1.99

$

In Stock, Qty 6

0

54

Cub Cadet TC-27241

Lifter, Valve

$

$

Currently unavailable

55

Cub Cadet TC-33158

Camshaft (Compression Release)

$46.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-32323

Washer, Thrust

$8.49

$

In Stock, only 1 left!

0

57

Cub Cadet TC-27677A

Gasket, Cylinder Cover

$7.49

$

In Stock, Qty 8

0

58

Cub Cadet TC-34674A

Cover, Cylinder

Note: (Incl. Nos. 59 & 72)

$

$

Not available

59

Cub Cadet TC-27897

Seal, Oil

$8.49

$

In Stock, only 3 left!

0

70

Cub Cadet TC-35479

Washer, Flat

$

$

Not available

71

Cub Cadet TC-30591

Gear, Governor

$13.99

$

In Stock, only 1 left!

0

72

Cub Cadet TC-30574

Shaft, Mechanical Governor

$

$

Not available

73

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

74

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

75

Cub Cadet TC-650488

Screw, Hex Hd. Sems, 1/4-20 X 1 1/4

$1.99

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-35554

Tube Ass'y., Oil Fill

$19.99

$

In Stock, only 1 left!

0

77

Cub Cadet TC-35499

0" Ring

$1.49

$

In Stock, only 3 left!

0

78

Cub Cadet TC-35556

Dipstick

$7.49

$

Usually ships in 3-12 days

0

79

Cub Cadet TC-35539

Clip, Oil Fill

$1.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-29313C

Valve, Exhaust (Std.)

Note: (Incl. No. 86)

$

$

Not available

83

Cub Cadet TC-29315C

Valve, Exhaust (1/32" Oversize)

Note: (Incl. No. 86)

$

$

Not available

84

Cub Cadet TC-32644A

Valve, Intake (Std.)

Note: (Incl. No. 86)

$9.99

$

In Stock, only 2 left!

0

84

Cub Cadet TC-32645A

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 86)

$

$

Currently unavailable

85

Cub Cadet TC-31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

86

Cub Cadet TC-31673

Cap, Valve Spring

$1.99

$

In Stock, only 1 left!

0

87

Cub Cadet TC-27666

Body, Valve Cover

$14.99

$

In Stock, only 4 left!

0

88

Cub Cadet TC-31410

Element, Valve Body

$1.99

$

In Stock, Qty 20+

0

89

Cub Cadet TC-27234A

Gasket, Valve Cover

$5.99

$

In Stock, only 1 left!

0

90

Cub Cadet TC-34146

Cover, Breather

$3.99

$

In Stock, only 2 left!

0

91

Cub Cadet TC-35350

Tube, Breather

$6.49

$

In Stock, only 1 left!

0

93

Cub Cadet TC-650128

Screw, Fil. Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

95

Cub Cadet TC-29752

Nut & Lock Washer Ass'y., 1/4-28

$1.99

$

In Stock, Qty 5

0

96

Cub Cadet TC-26756

Gasket, Carburetor

$2.99

$

In Stock, Qty 10

0

97

Cub Cadet TC-33691

Pipe, Intake

$25.99

$

Usually ships in 3-12 days

0

98

Cub Cadet TC-33673A

Gasket, Intake

$5.99

$

In Stock, only 2 left!

0

99

Cub Cadet TC-6201

Screw, Hex Hd., 1/4-28 x 7/8

$

$

Currently unavailable

100

Cub Cadet TC-650870

Screw, Hex Hd., 1/4-28 x 1-11/16

$1.99

$

In Stock, Qty 5

0

101

Cub Cadet TC-650664

Screw, Fil. Hd. Sems, 1/4-20 x 1-19/32

$

$

Currently unavailable

102

Cub Cadet TC-32698

Link, Governor to Throttle

$1.99

$

Usually ships in 3-12 days

0

140

Cub Cadet TC-34583

Bracket, Choke
(Superseded to TC-34583A)

$12.99

$

In Stock, Qty 7

0

141

Cub Cadet TC-28820

Screw, Fil. Hd. Sems, 10-32 x 1/2
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

142

Cub Cadet TC-34582

Rod, Choke

$5.49

$

In Stock, only 1 left!

0

143

Cub Cadet TC-35438

Knob, Choke Control

$3.99

$

In Stock, only 1 left!

0

144

Cub Cadet TC-35062

Key, Ignition

$3.99

$

In Stock, only 2 left!

0

145

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, only 1 left!

0

146

Cub Cadet TC-35285

Wire, Ground

$

$

Not available

147

Cub Cadet TC-35072

Cover, Carburetor
(Superseded to TC-35072B)

$

$

Not available

148

Cub Cadet TC-650257

Screw, Pan Hd. Sems, 8-32 x 5/16

$1.49

$

In Stock, Qty 18

0

149

Cub Cadet TC-650735

Screw, Hex Hd. Sems, Taptite,10-24 x 3/8

$1.99

$

In Stock, only 2 left!

0

150

Cub Cadet TC-33333

Bracket, Carburetor Cover

$3.99

$

Usually ships in 3-12 days

0

160

Cub Cadet TC-34080

Spacer, Flywheel Key

$1.99

$

In Stock, only 2 left!

0

161

Cub Cadet TC-650872

Stud, Solid State Mounting

$

$

Not available

162

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

163

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 4 left!

0

164

Cub Cadet TC-650814

Screw, Hex Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

165

Cub Cadet TC-611081

Flywheel (w/Ring Gear)

$

$

Not available

181

Cub Cadet TC-610961

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

182

Cub Cadet TC-650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

183

Cub Cadet TC-650863

Nut, Flywheel

$

$

Not available

184

Cub Cadet TC-35234

Wire, Ground

$

$

Not available

185

Cub Cadet TC-34212

Bracket, Hold Down

$

$

Currently unavailable

186

Cub Cadet TC-30200

Screw, Hex Washer Hd. Self-Tap Sems, 1/4-15 x 7/8

$1.49

$

In Stock, Qty 10

0

187

Cub Cadet TC-34126

Bracket, Grommet Mounting

$1.99

$

Usually ships in 3-12 days

0

188

Cub Cadet TC-28545

Grommet, Plastic

$1.99

$

In Stock, Qty 5

0

189

Cub Cadet TC-650760

Screw, Pan Hd. Taptite, 8-32 x 3/8

$1.99

$

In Stock, only 3 left!

0

191

Cub Cadet TC-33554A

Gasket, Cylinder Head
(Superseded to TC-36443)

$5.99

$

In Stock, Qty 11

0

192

Cub Cadet TC-33016A

Head, Cylinder

$

$

Not available

193

Cub Cadet TC-6021A

Screw, Hex Flange Hd., 5/16-18 X 1 1/2

$1.99

$

In Stock, only 3 left!

0

194

Cub Cadet TC-650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

195

Cub Cadet TC-650818

Screw, Special Hex Hd., 5/16-18 X 1 1/2

$3.99

$

In Stock, only 2 left!

0

196

Cub Cadet 759-3331

Plug, Spark

Note: (Champion J-8C or Equivalent)

$3.99

$

In Stock, only 2 left!

0

197

Cub Cadet TC-29745

Extension, Blower Housing

$

$

Currently unavailable

198

Cub Cadet TC-650128

Screw, Fil. Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

201

Cub Cadet TC-35656

Housing, Blower

$

$

Not available

202

Cub Cadet TC-570682

Primer Ass'y.
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

203

Cub Cadet TC-32180C

Line, Primer

$6.99

$

In Stock, Qty 9

0

204

Cub Cadet TC-33341

Extension, Baffle

$

$

Not available

205

Cub Cadet TC-650701

Screw, Hex Washer Hd. Shake-proof Self-Drilling, 8-18 x 7/16

$

$

Currently unavailable

210

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

211

Cub Cadet TC-29212

Screw, Hex Hd. Sems,1/4-28 x 7/16

$

$

Currently unavailable

216

Cub Cadet TC-33344

Baffle, Heat

$5.49

$

In Stock, only 1 left!

0

217

Cub Cadet TC-28371B

Plate, Fuel Tank

$

$

Not available

218

Cub Cadet TC-650694A

Screw, Hex Flange Hd., 5/16-18 x 2

$3.49

$

In Stock, Qty 20+

0

219

Cub Cadet TC-34182

Bracket, Fuel Tank Mounting

$13.99

$

Usually ships in 3-12 days

0

220

Cub Cadet TC-650675

Washer, Flat

$

$

Currently unavailable

221

Cub Cadet TC-650805

Screw, Hex Hd., w/Belleville Washer, 1/4-20 x 11/16

$

$

Currently unavailable

228

Cub Cadet TC-33670A

Gasket, Exhaust

$2.49

$

In Stock, only 4 left!

0

229

Cub Cadet TC-35771

Muffler
(Superseded to TC-35771A)

$32.99

$

In Stock, only 1 left!

0

230

Cub Cadet TC-650327

Screw, Fil. Hd. Sems, 1/4-20 x 2 1/2
(Superseded to TC-650327A)

$6.99

$

In Stock, Qty 13

0

231

Cub Cadet TC-8345

Washer, Flat

$

$

Currently unavailable

232

Cub Cadet TC-30063

Screw, Hex Washer Hd. Sems, 1/4 - 20 x 1/2

$1.99

$

In Stock, Qty 20+

0

249

Cub Cadet TC-35584

Tank Ass'y., Fuel

Note: (Incl. Nos. 250 & 253)

$45.99

$

In Stock, only 4 left!

0

250

Cub Cadet TC-35355

Cap, Fuel Tank
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 11

0

251

Cub Cadet TC-650665

Screw, Hex Washer Hd. Self-Tap Sems, 1/4-15 x 7/8

$1.99

$

Usually ships in 3-12 days

0

253

Cub Cadet TC-26460

Clamp, Fuel Line

$1.49

$

In Stock, Qty 10

0

254

Cub Cadet TC-29774

Line, Fuel

$34.99

$

In Stock, Qty 6

0

255

Cub Cadet TC-32961

Valve, Shut-Off
(Superseded to TC-35857)

$13.99

$

Usually ships in 3-12 days

0

256

Cub Cadet TC-30705

Line, Fuel

$16.99

$

In Stock, only 4 left!

0

270

Cub Cadet TC-34694

Cup, Starter

$11.99

$

Usually ships in 3-12 days

0

274

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

276

Cub Cadet TC-590574

Handle, Starter

$5.49

$

In Stock, only 1 left!

0

277

Cub Cadet TC-35392

Plug, Starter

$1.99

$

In Stock, only 1 left!

0

290

Cub Cadet TC-550223

Decal, Name

$

$

Not available

290A

Cub Cadet TC-34346

Decal, Instruction
(Superseded to TC-36261)

$

$

Not available

290B

Cub Cadet TC-34144

Decal, Primer

$

$

Currently unavailable

290C

Cub Cadet TC-35282

Decal, Choke

$2.49

$

In Stock, Qty 5

0

290D

Cub Cadet TC-34414

Decal, Warning

$

$

Not available

300

Cub Cadet TC-632107A

Carburetor
(Superseded to TC-640084B)

Note: (Incl. No. 96)

$109.99

$

Usually ships in 3-12 days

0

301

Cub Cadet TC-590646

Starter, Rewind
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0

303

Electric Starter Kit (Optional)

Note: Sold as Accessory-See Page 60

$

$

Not available

305

Cub Cadet TC-33683B

Gasket Set
(Superseded to TC-33683C)

Note: Incls. Items 57, 89, 96, 98, 191 and 228.

$20.99

$

In Stock, only 4 left!

0
