5234 DE (54AE544-710) - Cub Cadet Compact Tractor ROPS Foldable Parts Diagram

Compact Tractor

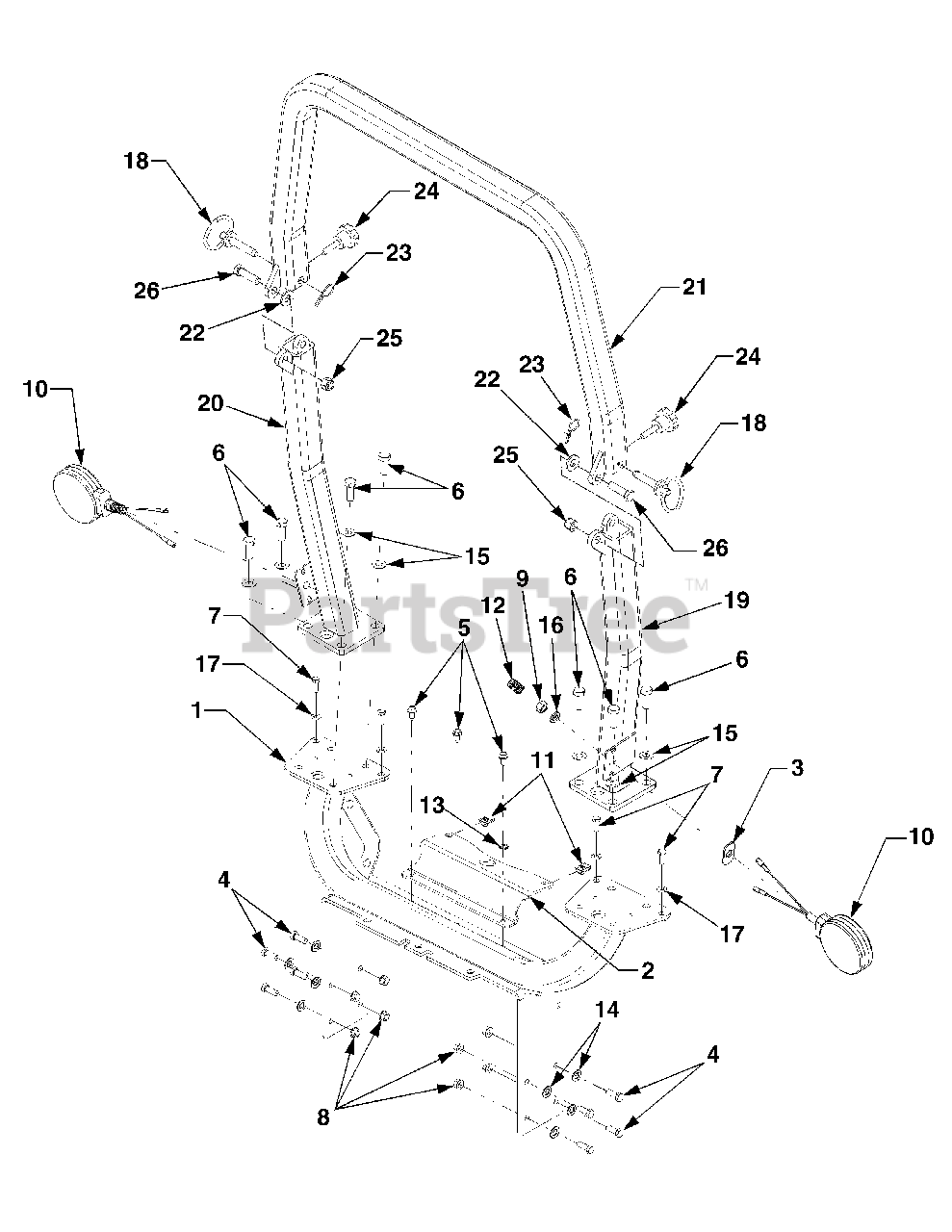

ROPS Foldable Parts Diagram

  • Title
1

Cub Cadet 603-04012

Rops, Lower

$

$

Not available

2

Cub Cadet 703-05032-0637

Bracket, Rear Seat Mtg.

$

$

Not available

3

Cub Cadet 703-05770-0637

Plate, Spacer

$

$

Not available

4

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 712-04065

Nut, Hx. Insert Flange Lck, 3/8-16 GRF

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3066

Nut, Hex, 1/2-20 GR5
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 725-04266

Light, Hazard
(Superseded to 925-04266)

$76.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0211

Nut, Speed, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 731-0757

Conduit, 12 inch

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0148

Washer, Ext. Tooth Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0185

Washer, Flat, .375 x .74x.063

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 736-3089

Washer, Flat, .345 x 1.0 x .10

$

$

Not available

18

$

$

Not available

19

Cub Cadet 603-04275

Base, ROPS RH

$

$

Not available

20

Cub Cadet 603-04277

Base, ROPS LH

$

$

Not available

21

$

$

Currently unavailable

22

Cub Cadet 736-0600

Washer, Flat

$

$

Not available

23

Cub Cadet 714-3003

Pin, Internal Cotter
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-05131

Knob Assembly
(Superseded to 731-05131A)

$14.99

$

In Stock, only 3 left!

0

25

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3067

Screw, Hex Cap, 1/2-13 x 1.75 GR5

$6.99

$

In Stock, only 2 left!

0
