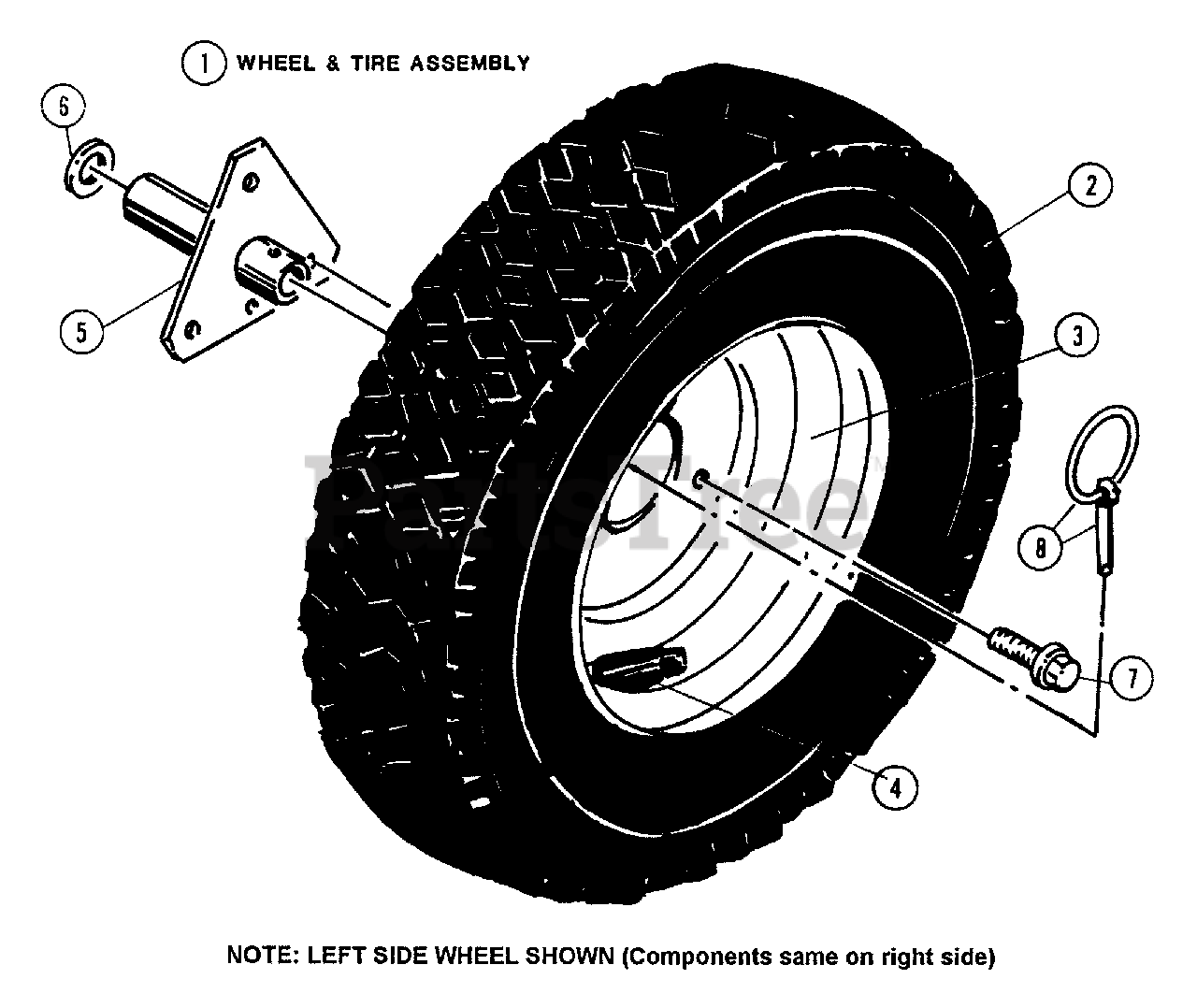

5230 (86136) - Snapper 23" Snow Thrower, 5hp Wheels, Hub Parts Diagram

23" Snow Thrower, 5hp

Wheels, Hub Parts Diagram

  • Title

1

Snapper 7052269

WHEEL & TIRE ASSEMBLY- 23" & 26" Units
(Superseded to 7052269YP)

Note: Was 50714 (Includes items 2, 3 & 4)

$152.99

$

In Stock, only 2 left!

0

2

Snapper 7010524

TIRE, 16 x 4.80 - 8 (23" & 26" Units)
(Superseded to 7023889YP)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7017145

RIM (23" & 26" Units)
(Superseded to 7017145YP)

Note: Was 12162

$134.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

1

Snapper 57270

WHEEL & TIRE ASSEMBLY- 30" Units

Note: Was 50713 (Includes items 2, 3 & 4)

$

$

Currently unavailable

2

Snapper 7046245

TIRE, 16 x 6.50 x 8 (30" Units)
(Superseded to 7073584YP)

Note: Was 11097

$170.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM (30" Units)
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7040464

HUB, Wheel (Used on right & left side)

$

$

Not available

6

Snapper 7010935

WASHER, 3/4" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Head Cap, Grade 2
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7012022

RETAINER (Klick-pin)
(Superseded to 7012022YP)

$9.49

$

Usually ships in 2-12 days

0
