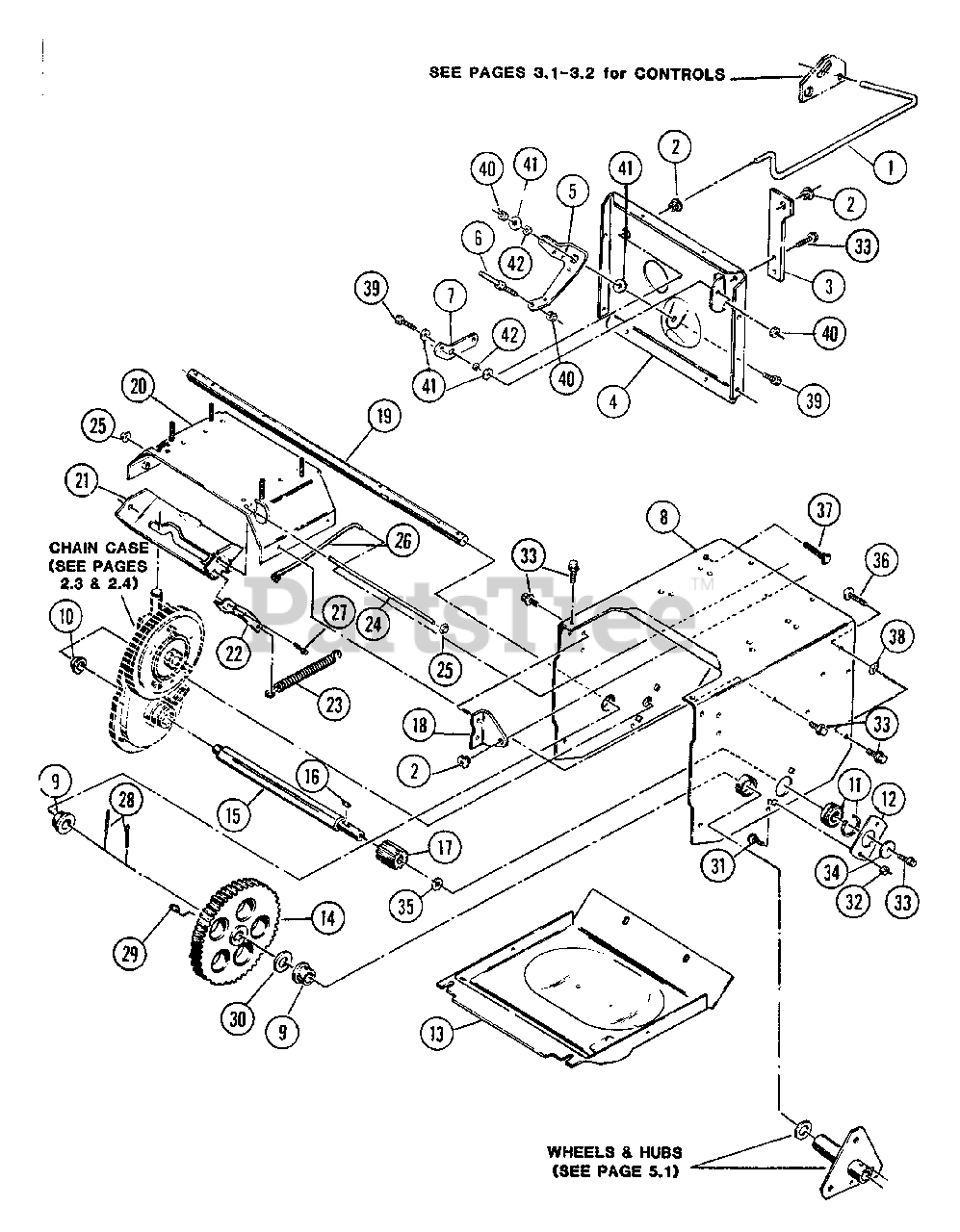

5230 (86136) - Snapper 23" Snow Thrower, 5hp Frame, Traction Drive Parts Diagram

23" Snow Thrower, 5hp

Frame, Traction Drive Parts Diagram

  • Title

1

Snapper 7019684

ROD, Activating
(Superseded to 7019684YP)

$30.99

$

In Stock, only 1 left!

0

2

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

3

Snapper 7032125

BRACKET, Support

$

$

Not available

4

Snapper 7039768

COVER, Frame Back
(Superseded to 7039768YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7037967

COVER, Frame Back

$

$

Not available

6

Snapper 7013872

STUD, Shift Lever
(Superseded to 7013872YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7032124

BELL-CRANK, Traction

$

$

Not available

8

Snapper 7039970

FRAME
(Superseded to 7039970YP)

Note: (Order items 9 & 10 when replacing)

$82.99

$

Usually ships in 2-12 days

0

9

Snapper 7015363

BUSHING, Axle Shaft
(Superseded to 7015363SM)

Note: Was 13989

$

$

Not available

10

Snapper 7013874

BUSHING, Hex Shaft

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

12

Snapper 7032121

RETAINER, Bearing

$

$

Not available

13

Snapper 7039769

COVER, Frame Bottom

$

$

Not available

14

Snapper 7018460

GEAR, Axle Shaft

$

$

Not available

15

Snapper 7027610

HEX-SHAFT
(Superseded to 7027610YP)

$94.99

$

Usually ships in 2-12 days

0

16

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

Note: (For Hex Shaft)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7013884

PINION, Hex Shaft
(Superseded to 7013884YP)

$78.99

$

In Stock, only 1 left!

0

18

Snapper 7032120

BRACKET, Idler Mounting

$

$

Not available

19

Snapper 7029549

AXLE-SHAFT
(Superseded to 7029549YP)

$152.99

$

Usually ships in 2-12 days

0

20

Snapper 7057275

BRACE, Frame

Note: (For Briggs 8HP Engine)

$

$

Not available

Snapper 7057277

BRACE, Frame

Note: (For Tecumseh 5HP Engine)

$

$

Currently unavailable

Snapper 7057276

BRACE, Frame
(Superseded to 7057276YP)

Note: (For Tecumseh 10 HP Engine)

$110.99

$

Usually ships in 2-12 days

0

Snapper 7057367

BRACE, Frame

Note: (For Briggs 5 HP Engine)

$

$

Not available

21

Snapper 7037965

BRACKET, Clutch

$

$

Not available

22

Snapper 7032130

BRACKET, Spring

$

$

Not available

23

Snapper 7012264

SPRING
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

24

Snapper 7021843

CROSS-SHAFT
(Superseded to 7021843YP)

Note: Was 21827

$19.99

$

Usually ships in 2-12 days

0

25

Snapper 7013900

CAP, 5/16" Push

Note: (Not used with new #21843 shaft)

$

$

Not available

26

Snapper 7013875

ROD, Push
(Superseded to 7013875YP)

$6.49

$

Usually ships in 2-12 days

0

27

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7013878

PIN, 3/16" x 1-1/4" Roll

Note: (For Axle Shaft)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

Note: (For Axle Shaft Gear)

$3.49

$

In Stock, Qty 5

0

30

Snapper 7010935

WASHER, 3/4 x 1-1/8" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90771

$4.49

$

In Stock, Qty 5

0

33

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Snapper 7090188

WASHER, 3/8 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7010690

WASHER, Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7091508

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 12

0

37

Snapper 7090790

BOLT, 5/16-18 x 1-3/8" Short Neck Carriage, Grade 5

$

$

Not available

38

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 8

0

40

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 17

0

41

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

42

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0
