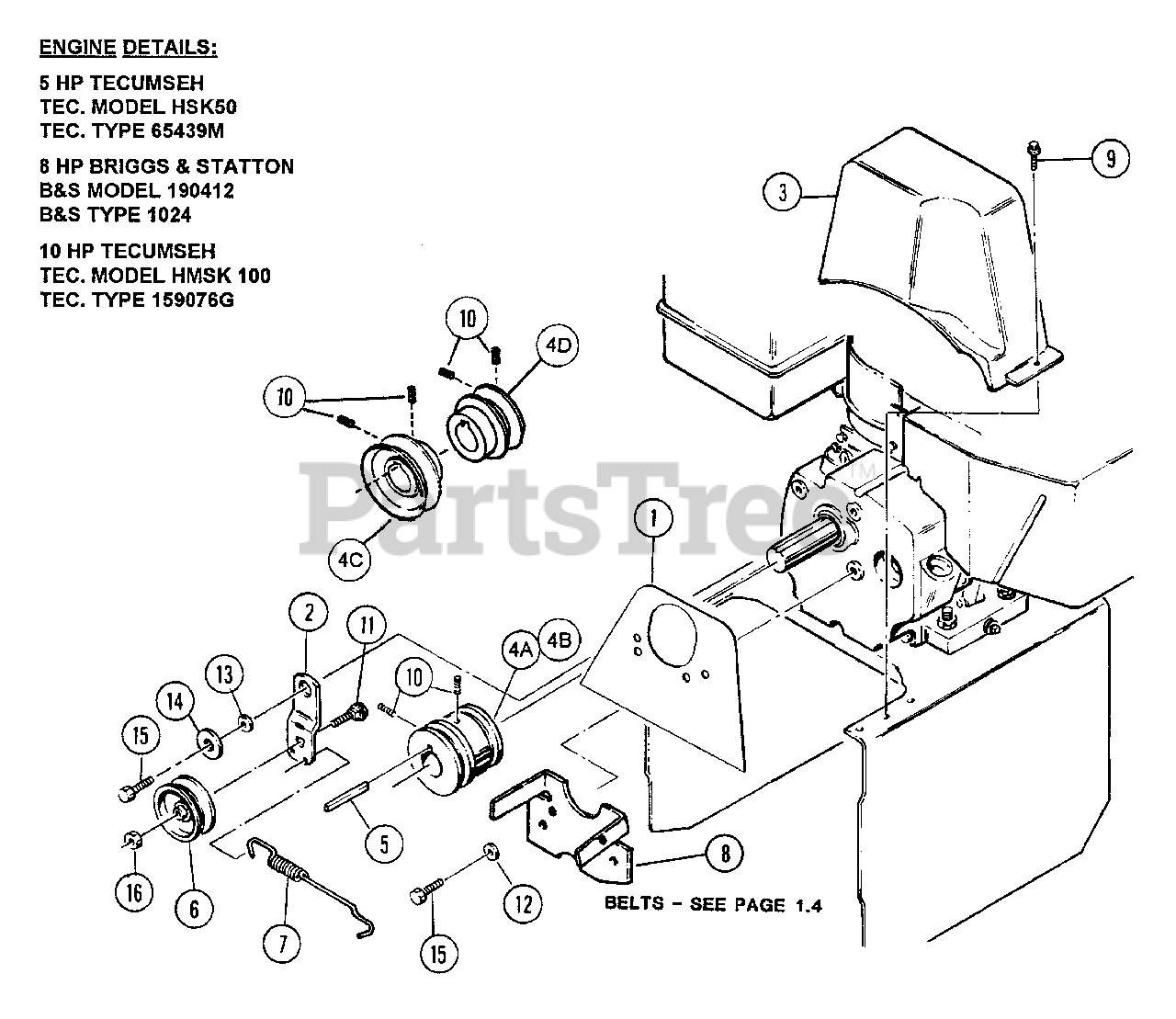

5230 (86136) - Snapper 23" Snow Thrower, 5hp Engines, Pulley Idler Parts Diagram

23" Snow Thrower, 5hp

Engines, Pulley Idler Parts Diagram

  • Title
1

Snapper 7037969

GUARD, Engine
(Superseded to 7038545YP)

$17.99

$

Usually ships in 2-12 days

0

2

Snapper 7032128

ARM, Idler
(Superseded to 7032128YP)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7019689

COVER, Belt
(Superseded to 7017734YP)

$53.99

$

In Stock, only 3 left!

0

4A

Snapper 7014145

PULLEY, Double 1x2.5, 2.75

Note: (Was 27611)

$

$

Not available

4B

Snapper 7014900

PULLEY, Double .75x2.5, 2.75

$

$

Not available

4C

Snapper 7015376

PULLEY, Blower 4L, 2.75
(Superseded to 7015376YP)

$104.99

$

Usually ships in 2-12 days

0

4D

Snapper 7015377

PULLEY, Traction 3L, 2.25
(Superseded to 7015377YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7010210

KEY, 1/4 Square x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

6

Snapper 7013850

IDLER, 2-1/4" Dia.
(Superseded to 7013850YP)

$20.99

$

In Stock, Qty 7

0

7

Snapper 7013918

SPRING
(Superseded to 7013918YP)

$13.99

$

In Stock, only 1 left!

0

8

Snapper 7032150

FINGER, Belt
(Superseded to 7032150YP)

$45.99

$

Usually ships in 2-12 days

0

9

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

11

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Square Neck. Carriage, Gr. 2
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7090227

SCREW, 5/16-24 x 5/8" Hex Head Cap, Grade 2

$

$

Not available

16

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0
