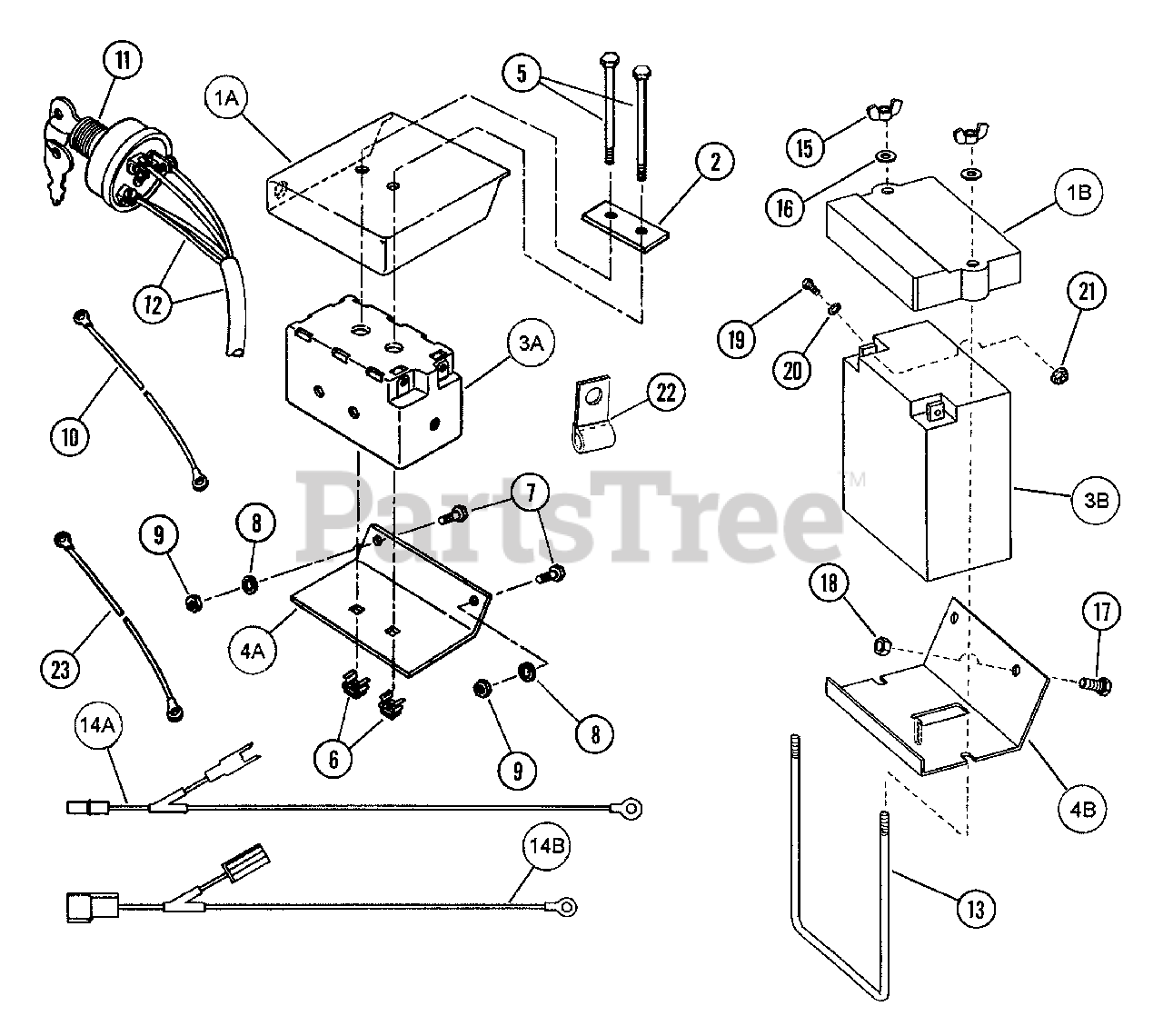

5230 (86136) - Snapper 23" Snow Thrower, 5hp 12V Battery System Parts Diagram

23" Snow Thrower, 5hp

12V Battery System Parts Diagram

  • Title

1A

Snapper 18520

COVER, Battery

Note: (For 18535)

$

$

Currently unavailable

1B

Snapper 19751

COVER, Battery

Note: (For 60660); Included in 60651 On Board Battery Kit

$

$

Currently unavailable

2

Snapper 32250

PLATE, Hold Down

$

$

Currently unavailable

3A

Snapper 18535

BATTERY, 12 V Sealed Lead Acid (5 A. H.

$

$

Currently unavailable

3B

Snapper 60660

BATTERY, 12 V (12 A.H.)

Note: Included in 60651 On Board Battery Kit

$

$

Currently unavailable

4A

Snapper 38019

BRACKET, Battery Mtg.

$

$

Currently unavailable

4B

Snapper 7038166

BRACKET, Battery Mtg.

Note: Included in 60651 On Board Battery Kit

$

$

Currently unavailable

5

Snapper 90808

SCREW, #10-32x4-1/2"

$

$

Currently unavailable

6

Snapper 7014121

CLIP-NUT, #10-32

$

$

Currently unavailable

7

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

8

Snapper 7090395

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

9

Snapper 7091511

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7014063

WIRE, Negative
(Superseded to 7011859YP)

$8.99

$

Usually ships in 2-12 days

0

11

Snapper 7011155

SWITCH, Electric Start
(Superseded to 7011155YP)

Note: (Includes two Keys, 11138)

$38.99

$

Usually ships in 2-12 days

0

12

Snapper 7018554

HARNESS, Wiring

$

$

Currently unavailable

13

Snapper 7014910

CLAMP, Battery
(Superseded to 7014910YP)

Note: Included in 60651 On Board Battery Kit

$37.99

$

Usually ships in 2-12 days

0

14A

Snapper 7018701

HARNESS, Charging (B&S)

Note: Included in 60651 On Board Battery Kit

$

$

Not available

14B

Snapper 7018702

HARNESS, Charging (Tec.)

Note: Included in 60651 On Board Battery Kit

$

$

Currently unavailable

15

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311 (Included in 60651 On Board Battery Kit)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055 (Included in 60651 On Board Battery Kit)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091138

SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184 (Included in 60651 On Board Battery Kit)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090411

SCREW, #10-24 x 1/2" Hex Head Cap

Note: Included in 60651 On Board Battery Kit

$

$

Not available

20

Snapper 7090601

WASHER, #10 External Tooth Lock
(Superseded to 7090601YP)

Note: Included in 60651 On Board Battery Kit

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7012688

NUT, #10-24 Hex "Whiz Lock"
(Superseded to 7012688YP)

Note: Included in 60651 On Board Battery Kit

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7014951

HARNESS CLIP

Note: Included in 60651 On Board Battery Kit

$

$

Currently unavailable

23

Snapper 7015008

WIRE, Battery to Switch

Note: Included in 60651 On Board Battery Kit

$

$

Not available

?24

Snapper 7015009

DECAL, Charging

Note: Included in 60651 On Board Battery Kit

$

$

Not available

Snapper 7060651

KIT, On Board Battery (8-10 HP)

Note: (Includes items 1B,3B,4B,13,14A,14B,15,16,18,19,20,21,22,23,24 as well as 14952 Instructions)

$

$

Not available
