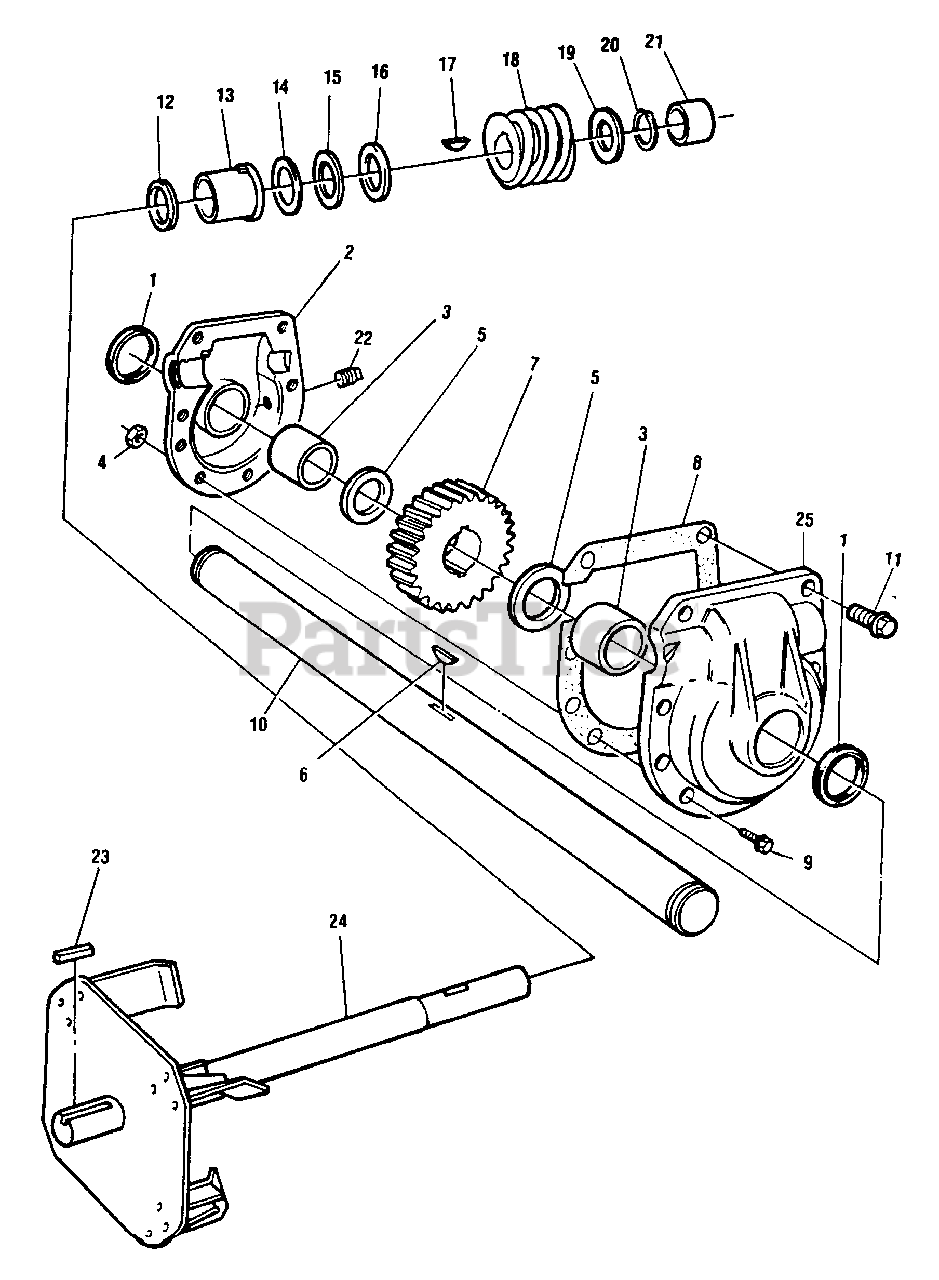

523 (UT-35023) - Homelite Snow Thrower Worm Gear Parts Diagram

Snow Thrower

Worm Gear Parts Diagram

  • Title

$

$

Currently unavailable

2

Homelite 0110919

HOUSING - L.H.

$

$

Currently unavailable

3

$

$

Not available

4

Homelite 0111059

WASHER - Lock Flange 5/16-24

$

$

Currently unavailable

5

Homelite 0110936

RACE - Thrust

$

$

Currently unavailable

6

Homelite 0110937

KEY - Woodruff #91

$

$

Currently unavailable

7

Homelite 0110935

GEAR - Worm

$

$

Currently unavailable

8

$

$

Not available

9

Homelite 0111038

BOLT - 5/16-24 x 1

$

$

Currently unavailable

10

Homelite 0110934

SHAFT - Auger 23"

$

$

Currently unavailable

11

Homelite 0111039

BOLT - 5/16-24 x 1-1/2

$

$

Currently unavailable

12

Homelite 0110933

RING - Quad

$

$

Currently unavailable

13

Homelite 0110932

SHAFT - Bearing Impeller

$

$

Currently unavailable

14

Homelite 0110931

RACE - Thrust

$

$

Currently unavailable

15

Homelite 0110930

BEARING - Needle

$

$

Currently unavailable

16

Homelite 0110929

RACE - Thrust

$

$

Currently unavailable

17

Homelite 0110926

KEY - 3/16"

$

$

Currently unavailable

$

$

Currently unavailable

19

Homelite 0110924

RACE - Thrust

$

$

Currently unavailable

20

Homelite 0110925

RETAINER - Ring

$

$

Currently unavailable

21

Homelite 0110927

SHAFT - Bearing Impeller

$

$

Currently unavailable

22

Homelite 0110938

PLUG - Grease

$

$

Currently unavailable

23

Homelite 0110965

KEY 3/16"

$

$

Currently unavailable

24

Homelite 0110923

IMPELLER SHAFT ASSY.

$

$

Currently unavailable

25

Homelite 0110939

HOUSING - R.H.

$

$

Currently unavailable
