5225 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: X0001000 - X0012159) TINES & WHEELS Parts Diagram

Tuffy Rear-Tine Tiller

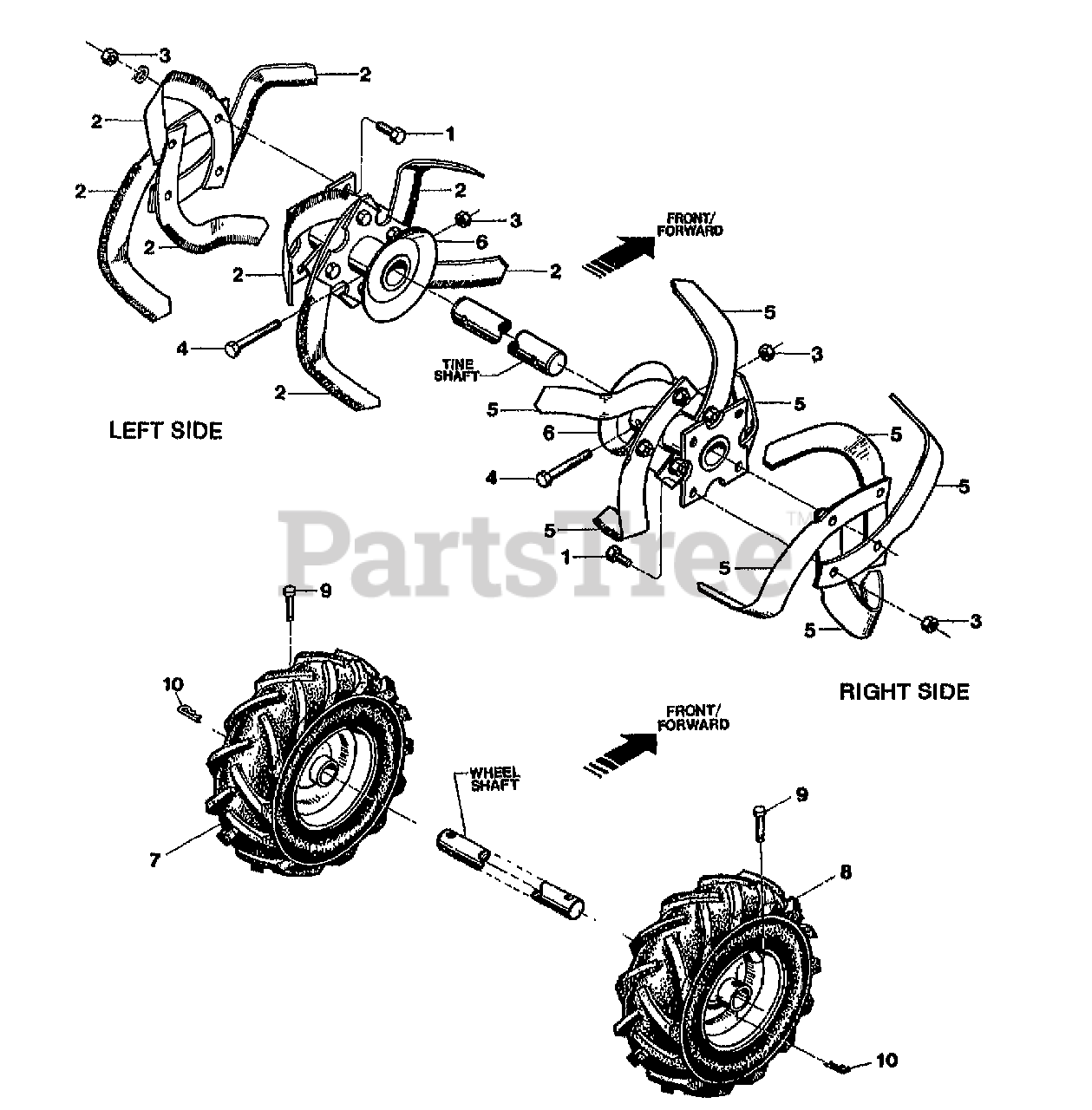

TINES & WHEELS Parts Diagram

  • Title
1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 50049-01

TINE-BOLO RIGHT
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

3

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

4

MTD 9555

BOLT-HH 3/8-16X1.75 G8 ZP (TINE HOLDER TO TILLER SHAFT)

$

$

Not available

5

Troy-Bilt 50049-02

TINE-BOLO LEFT
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 55089

HOLDER-TINE PNT

$

$

Currently unavailable

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY (INCL. 8 RH TINES 8 LH TINES, & ALL REQUIRED HARDWARE)
(Superseded to GW-1901)

$

$

Not available

7

Troy-Bilt 55045-01

ASSM-TIRE&WHL LH GRAY

$

$

Currently unavailable

8

Troy-Bilt 55045-02

ASSM-TIRE&WHL RH GRAY

$

$

Currently unavailable

9

Troy-Bilt 9380

PIN-CLEVIS
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
