52204 - Troy-Bilt 13-Bushel Dump Cart MAIN ASSEMBLY Parts Diagram

13-Bushel Dump Cart

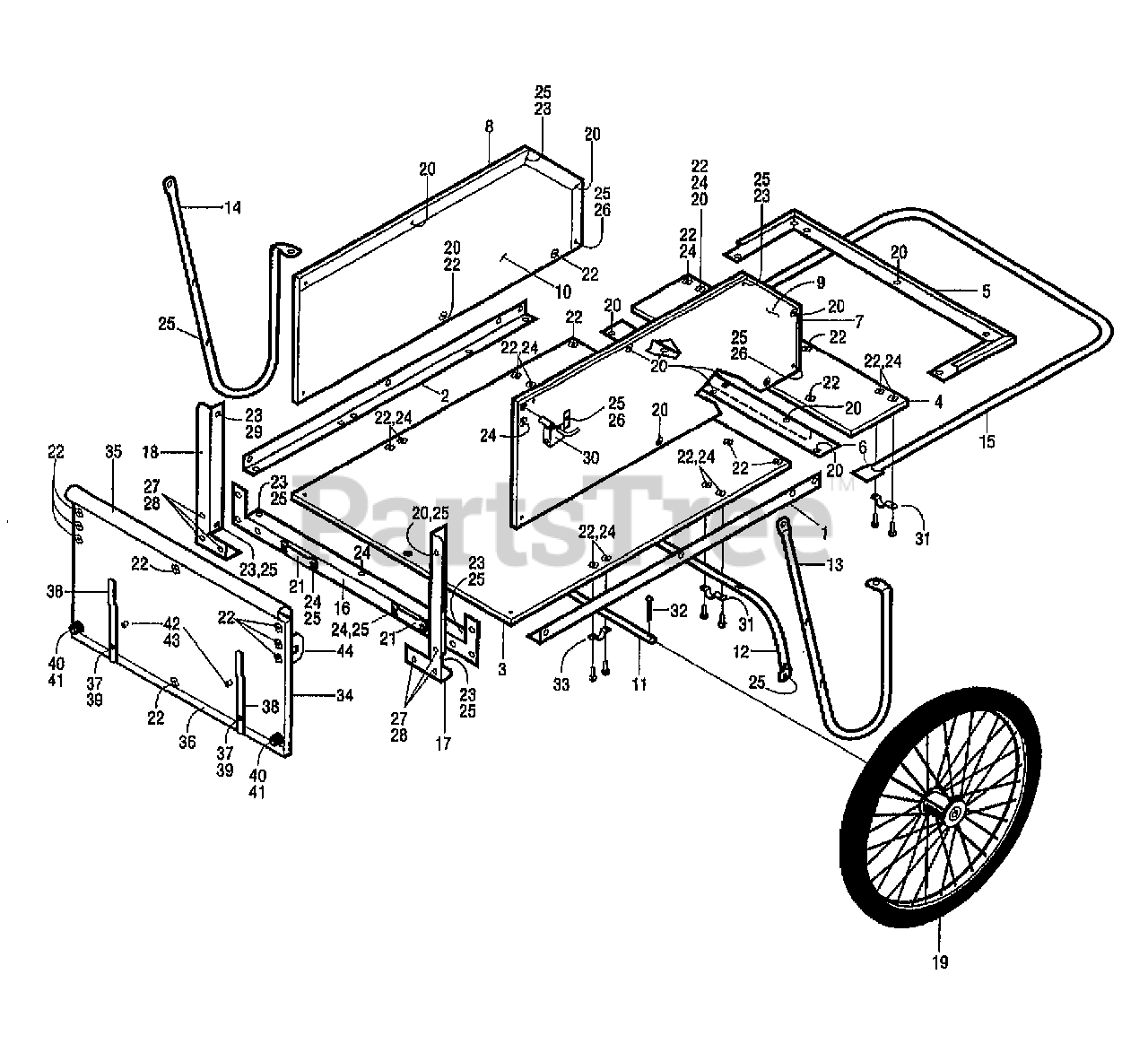

MAIN ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 03057

ANGLE-26 SOLID FRONT BOT LT

$

$

Currently unavailable

2

Troy-Bilt 03055

ANGLE-BOTM 26 SOLID FRONT RT

$

$

Currently unavailable

3

Troy-Bilt 03153

PANEL-BOTTOM FRT W/TNUTS

$

$

Currently unavailable

4

Troy-Bilt 03152

PANEL-REAR BOTTOM W/TNUTS

$

$

Currently unavailable

5

Troy-Bilt 03626

PROTECTOR-M26 REAR EDGE

$

$

Currently unavailable

6

Troy-Bilt 03147

SUPT-REAR BOTTOM KM26

$

$

Currently unavailable

7

Troy-Bilt 03059

PROTECTOR-SIDE LT

$

$

Currently unavailable

8

Troy-Bilt 03058

PROTECTOR-26 TOP EDGE RT

$

$

Currently unavailable

9

Troy-Bilt 03149

PANEL-03052 LFT KM26 W/NUTS

$

$

Currently unavailable

10

Troy-Bilt 1902083

PANEL-RH W/TNUTS M26

$

$

Currently unavailable

11

Troy-Bilt 03616

AXLE-MODEL 26

$

$

Currently unavailable

12

Troy-Bilt 03766

BRACE-CROSS M26

$

$

Currently unavailable

13

Troy-Bilt 03747

STAND-M26(LEG) LEFT

$

$

Currently unavailable

14

Troy-Bilt 03757

STAND-M26 (LEG) RIGHT

$

$

Currently unavailable

15

Troy-Bilt 03606

M26 HANDLE-ALL MODELS

$

$

Currently unavailable

16

Troy-Bilt 03065

SUPT-BOT 26 SWING FRONT

$

$

Currently unavailable

17

Troy-Bilt 03067

SUPT-SIDE 26 SWING FRONT LT

$

$

Currently unavailable

18

Troy-Bilt 03068

SUPT-SIDE 26 SWING FRONT RT

$

$

Currently unavailable

19

Troy-Bilt 03870

WHEEL&TIRE-COMP. M26

$

$

Currently unavailable

20

Troy-Bilt 03208

SCR-PH 1/4-20 X .5

$

$

Currently unavailable

21

Troy-Bilt 03073

PLATE-LATCH 20&26 SWING FRONT

$

$

Currently unavailable

22

Troy-Bilt 03205

NUT-HT/LK 1/4-20X.375

$

$

Currently unavailable

23

Troy-Bilt 03213

BOLT-1/4 X 1 PAN HD

$

$

Currently unavailable

24

Troy-Bilt 03209

BOLT-1/4 X 5/8 PAN HD

$

$

Currently unavailable

25

Troy-Bilt 03207

NUT-LK 1/4-20

$

$

Currently unavailable

26

Troy-Bilt 9675

BOLT-SLPH 1/4-20 X.875-ZP

$

$

Currently unavailable

27

Troy-Bilt 9550

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Currently unavailable

28

Troy-Bilt 92016

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

29

Troy-Bilt 03658

PIVOT-HINGE M26 R/D

$

$

Currently unavailable

30

Troy-Bilt 03069

ASSM-20&26 PLUNGER

$

$

Currently unavailable

31

Troy-Bilt 03202

BRKT-AXLE MTG

$

$

Currently unavailable

32

Troy-Bilt 03204

PIN-COTTER 3/32 X 1 1/4

$

$

Currently unavailable

33

Troy-Bilt 03203

CLAMP-AXLE 20 & 26

$

$

Currently unavailable

34

Troy-Bilt 03151

PANEL-FRNT DOOR W/T NUTS

$

$

Currently unavailable

35

Troy-Bilt 03064

EDGE-TOP 26 SWING FRONT

$

$

Currently unavailable

36

Troy-Bilt 03063

EDGE-BOT 26 SWING FRONT

$

$

Currently unavailable

37

Troy-Bilt 9676

BOLT-SLPH 1/4-20X1.125ZP

$

$

Currently unavailable

38

Troy-Bilt 03074

LATCH-20&26 SWING FRONT

$

$

Currently unavailable

39

Troy-Bilt 03075

SPACER-20&26 SWING FRONT

$

$

Currently unavailable

40

Troy-Bilt 03211

BOLT-1/4 X 1 1/4 PAN HD

$

$

Currently unavailable

41

Troy-Bilt 03617

CASE FEET

$

$

Currently unavailable

42

Troy-Bilt 9427

BUSHING-.31X.188X.38

$

$

Currently unavailable

43

Troy-Bilt 9667

SCR-WOOD RHS M8X.75 ZP

$

$

Currently unavailable

44

UNKNOWN

$

$

Not available

MTD 1902014

KIT-HDW BY-STEPS M26 CART

$

$

Not available
