522 WE (31AH623D100) - Cub Cadet 22" Snow Thrower Engine (2000) Fuel Tank & Flywheel (Model 522WE) Parts Diagram

22" Snow Thrower Engine

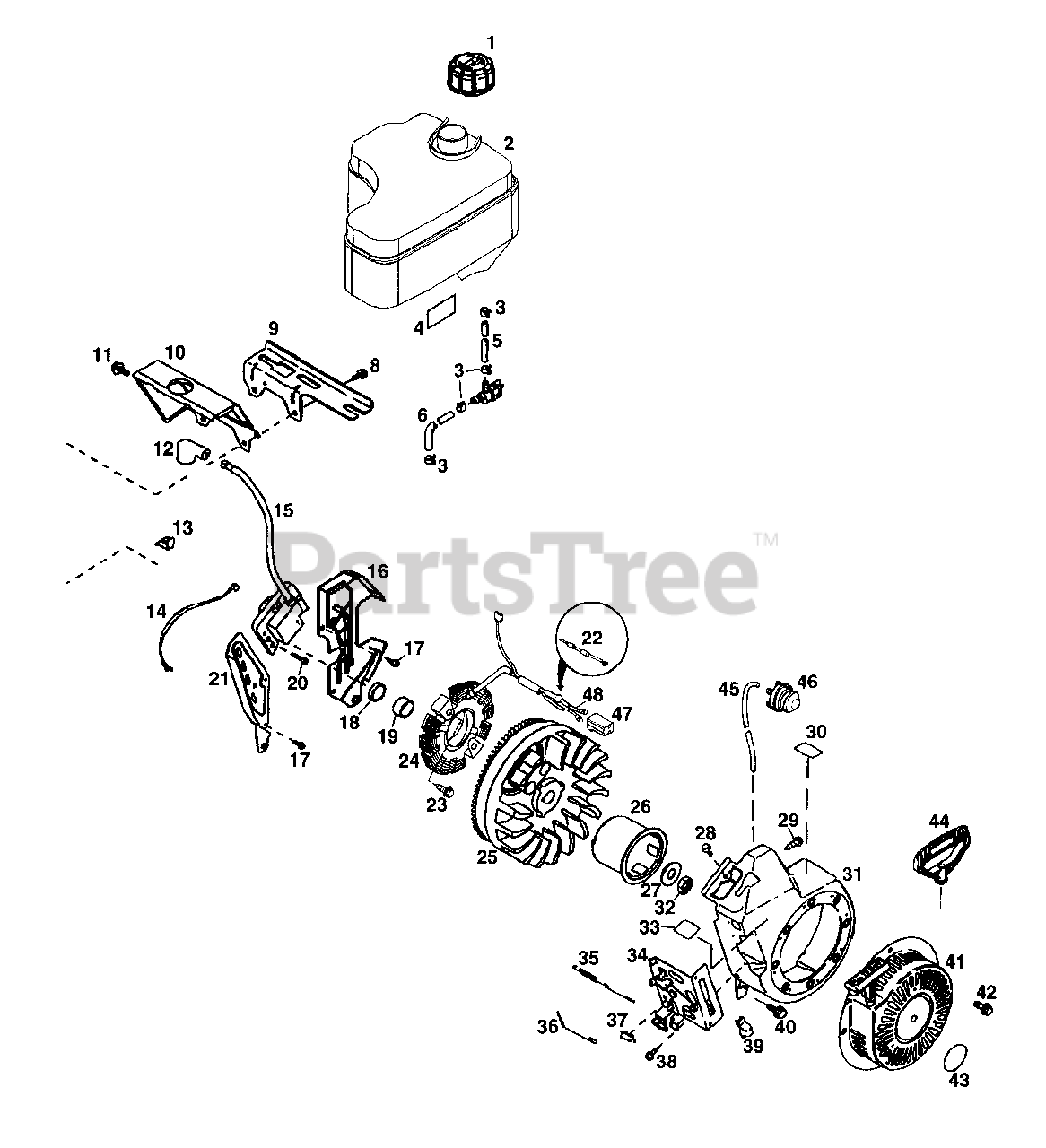

Fuel Tank & Flywheel (Model 522WE) Parts Diagram

  • Title

1

Cub Cadet TC-35355

Fuel Cap
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 11

0

2

Cub Cadet TC-37048

Fuel Tank

Note: (Incl. 1 & 3)

$44.99

$

In Stock, only 1 left!

0

3

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

4

Cub Cadet TC-36534

Instruction Decal

$

$

Not available

5

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 4 left!

0

6

Cub Cadet TC-29774

Fuel Line

$34.99

$

In Stock, Qty 6

0

?7

Cub Cadet TC-35857

Fuel Shut-Off Valve

$13.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-651010

Screw, 1/4-20 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-36644

Fuel Tank Bracket

$

$

Not available

10

Cub Cadet TC-36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

12

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

13

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

14

Cub Cadet TC-36230

Ground Wire

$1.99

$

In Stock, only 2 left!

0

15

Cub Cadet TC-34443A

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-36869

Air Baffle (Right)

$

$

Not available

17

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

18

Cub Cadet TC-32600

Oil Seal

$

$

Not available

19

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-651007

Screw, Torx T-15, 15/16"

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

22

Cub Cadet TC-611161

Diode

$17.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-611104

Alternator Coil

$146.99

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-611234

Flywheel

$214.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

27

Cub Cadet TC-650815

Bell Washer

$1.99

$

In Stock, Qty 10

0

28

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-36261

Lube Decal

$

$

Not available

31

Cub Cadet TC-36901

Blower Housing

$34.99

$

Usually ships in 3-12 days

0

32

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet TC-36899

Control Decal

$

$

Not available

34

Cub Cadet TC-36824A

Control Bracket

Note: (Includes Ref 37)

$

$

Not available

35

Cub Cadet TC-37111

Extension Spring

$6.99

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

37

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

39

Cub Cadet TC-32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

40

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-590733

Rewind Starter
(Superseded to TC-590789)

$87.99

$

In Stock, only 1 left!

0

Cub Cadet TC-590749

Rewind Starter
(Superseded to TC-590789)

Note: (See "Carburetor & Starter (Model 522WE)" illustration and parts list)

$87.99

$

In Stock, only 1 left!

0

42

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

44

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

45

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 9

0

46

Cub Cadet TC-570682A

Primer Assembly

$10.99

$

In Stock, Qty 7

0

47

Cub Cadet TC-611142

Connector

$3.99

$

Usually ships in 3-12 days

0

48

Cub Cadet TC-611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-36720

Gasket Set

Note: (Incl. TC-26756, TC-27272A, TC-29673, TC-35626, TC-36581, TC-36624 and TC-36719)

$10.99

$

Usually ships in 3-12 days

0
