522 WE (31AH623D100) - Cub Cadet 22" Snow Thrower Engine (2000) Engine Assembly (Model 522WE) Parts Diagram

22" Snow Thrower Engine

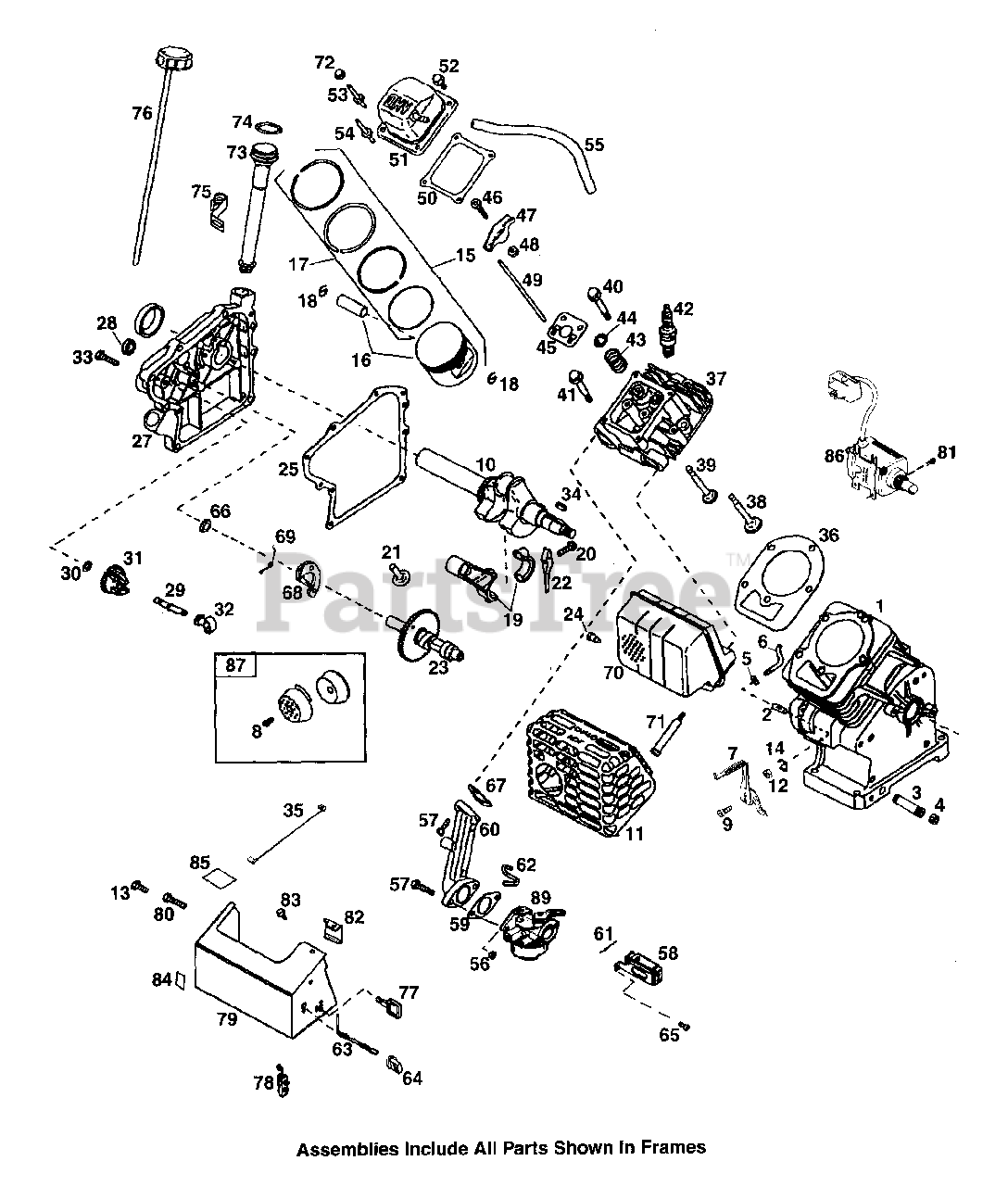

Engine Assembly (Model 522WE) Parts Diagram

  • Title

1

Cub Cadet TC-36866

Cylinder

Note: (Includes Dowel Pin & Seal)

$

$

Not available

2

Cub Cadet TC-26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-31857

Oil Drain Extension

$9.49

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-30969

Extension Cap

$5.49

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-651052

Washer

$1.99

$

In Stock, Qty 5

0

6

Cub Cadet TC-37108

Governor Rod

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-37110

Governor Lever

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet TC-650821

Screw, 10-21 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-651053

Screw, 10-32 x 63/64"

$1.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-35975

Crankshaft

$

$

Not available

11

Cub Cadet TC-37069

Heat Shield

$

$

Not available

12

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

13

Cub Cadet TC-28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 1 left!

0

14

Cub Cadet TC-37109

Retaining Ring

$1.99

$

In Stock, Qty 5

0

15

Cub Cadet TC-40004

Piston, Pin & Ring Set

Note: (Standard)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet TC-40005

Piston, Pin & Ring Set (.010" OS)
(Superseded to TC-40045)

$

$

Not available

16

Cub Cadet TC-36070

Piston & Pin Ass'y

Note: (Standard); (Incl. 18)

$

$

Not available

Cub Cadet TC-36071

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 18)

$

$

Not available

17

Cub Cadet TC-40006

Ring Set

Note: (Standard)

$42.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-40007

Ring Set (.010" OS)

$34.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

19

Cub Cadet TC-32875A

Connecting Rod Ass'y
(Superseded to TC-32875B)

Note: (Incl. 20 & 22)

$47.99

$

In Stock, only 1 left!

0

20

Cub Cadet TC-32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

21

Cub Cadet TC-35616

Valve Lifter

$

$

Not available

22

Cub Cadet TC-36611

Oil Dipper

$1.99

$

In Stock, only 1 left!

0

23

Cub Cadet TC-36903

Camshaft

$

$

Not available

24

Cub Cadet TC-651027

Screw, 1 /4-20 x 27/32"

$3.49

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-36624

Cylinder Cover Gasket

$6.99

$

In Stock, only 1 left!

0

?26

Cub Cadet TC-36724

Cylinder Cover

Note: (Incl. 27-32)

$115.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

28

Cub Cadet TC-30318

Camshaft Seal

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet TC-30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

30

Cub Cadet TC-30590A

Washer

$1.99

$

In Stock, Qty 7

0

31

Cub Cadet TC-30591

Governor Gear Ass'y

Note: (Incl. 30)

$13.99

$

In Stock, only 1 left!

0

32

Cub Cadet TC-36057

Governor Spool

$1.99

$

In Stock, only 4 left!

0

33

Cub Cadet TC-650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

34

Cub Cadet TC-610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

35

Cub Cadet TC-36874

Ground Wire

$

$

Not available

36

Cub Cadet TC-36719

Cylinder Head Gasket

$10.99

$

In Stock, only 2 left!

0

37

Cub Cadet TC-36721

Cylinder Head

$

$

Not available

38

Cub Cadet TC-36471

Exhaust Valve

Note: (Standard); (Incl. 44)

$13.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-36472

Exhaust Valve (1/32" OS)

Note: (Incl. 44)

$

$

Not available

39

Cub Cadet TC-29314C

Intake Valve

Note: (Standard); (Incl. 44)

$5.99

$

In Stock, only 1 left!

0

Cub Cadet TC-29315C

Intake Valve (1/32" OS)

Note: (Incl. 44)

$

$

Not available

40

Cub Cadet TC-650912

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 2 left!

0

41

Cub Cadet TC-650999

Screw, 5/16-18 x 2-41/64"

$3.99

$

In Stock, Qty 5

0

42

Cub Cadet 725-3339

Resistor Spark Plug (N4C)

$

$

Currently unavailable

43

Cub Cadet TC-37039

Valve Spring

$3.99

$

In Stock, only 2 left!

0

44

Cub Cadet TC-31673

Valve Spring Cap

$1.99

$

In Stock, only 1 left!

0

45

Cub Cadet TC-36649

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-650913

Rocker Arm Stud

$1.99

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-35624A

Rocker Arm

$26.99

$

Usually ships in 3-12 days

0

48

Cub Cadet TC-650914

Nut, 1/4-28

$1.99

$

Usually ships in 3-12 days

0

49

Cub Cadet TC-36629

Push Rod

$3.99

$

In Stock, only 2 left!

0

50

Cub Cadet TC-35626

Rocker Arm Cover Gasket

$3.99

$

In Stock, only 1 left!

0

51

Cub Cadet TC-36630A

Rocker Arm Cover

$

$

Not available

52

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

53

Cub Cadet TC-651034

Stud

$4.49

$

Usually ships in 3-12 days

0

54

Cub Cadet TC-651012

Stud

$1.99

$

In Stock, only 1 left!

0

55

Cub Cadet TC-36675A

Breather Tube

$5.49

$

In Stock, only 1 left!

0

56

Cub Cadet TC-650852

Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

57

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

58

Cub Cadet TC-36867

Choke Bracket

$

$

Not available

59

Cub Cadet TC-26756

Carb. to Intake Pipe Gasket

$2.99

$

In Stock, Qty 10

0

60

Cub Cadet TC-36631

Intake Pipe

$43.99

$

Usually ships in 3-12 days

0

61

Cub Cadet TC-36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

62

Cub Cadet TC-36632

Throttle Link

$1.49

$

In Stock, Qty 18

0

63

Cub Cadet TC-36868

Choke Rod

$

$

Not available

64

Cub Cadet TC-35438

Choke Knob

$3.99

$

In Stock, only 1 left!

0

65

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-651013

Washer

$1.99

$

In Stock, only 2 left!

0

67

Cub Cadet TC-36581

Intake Pipe Gasket

$1.49

$

In Stock, Qty 13

0

68

Cub Cadet TC-36701

Compression Release Weight

$5.49

$

In Stock, only 2 left!

0

69

Cub Cadet TC-36702

Compression Release Spring

$1.99

$

In Stock, only 2 left!

0

70

Cub Cadet TC-36722

Muffler
(Superseded to TC-37595A)

$30.99

$

Usually ships in 3-12 days

0

71

Cub Cadet TC-650988

Screw, 1/4-20 x 2-9/32"

$4.49

$

In Stock, only 3 left!

0

72

Cub Cadet TC-650852

Nut & Lock Washer

$1.99

$

In Stock, only 1 left!

0

73

Cub Cadet TC-36877

Oil Fill Tube

$3.99

$

In Stock, only 3 left!

0

74

Cub Cadet TC-35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

75

Cub Cadet TC-37079

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-36878

Dipstick

$7.49

$

In Stock, only 2 left!

0

77

Cub Cadet 725-0616

Ignition Key

$

$

Currently unavailable

78

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

79

Cub Cadet TC-36873

Carburetor Cover
(Superseded to TC-36873A)

$

$

Not available

80

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

81

Cub Cadet TC-650990

Screw, 1/4-20 x 5/8"

$3.99

$

In Stock, only 4 left!

0

82

Cub Cadet TC-36872

Carburetor Cover Bracket

$1.99

$

In Stock, only 2 left!

0

83

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

84

Cub Cadet TC-36501

Primer Decal

$2.49

$

In Stock, only 2 left!

0

85

Cub Cadet TC-37119

Warning Decal

$2.49

$

Usually ships in 3-12 days

0

86

Cub Cadet TC-33290E

Electric Starter Motor (110 Volt)
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0

87

Cub Cadet TC-36085

Spark Arrestor Kit

Note: (Optional)

$12.99

$

Usually ships in 3-12 days

0

?88

Cub Cadet TC-27897

Screw, 8-32 x 3/8"

$8.49

$

In Stock, only 3 left!

0

89

Cub Cadet TC-640058

Carburetor
(Superseded to TC-640058A)

Note: (Includes Ref 59)

$109.99

$

In Stock, only 1 left!

0

Cub Cadet TC-754322

Short Block
(Superseded to TC-754322A)

$

$

Not available
