522 WE (31AH623D100) - Cub Cadet 22" Snow Thrower Engine (2000) Carburetor & Starter (Model 522WE) Parts Diagram

22" Snow Thrower Engine

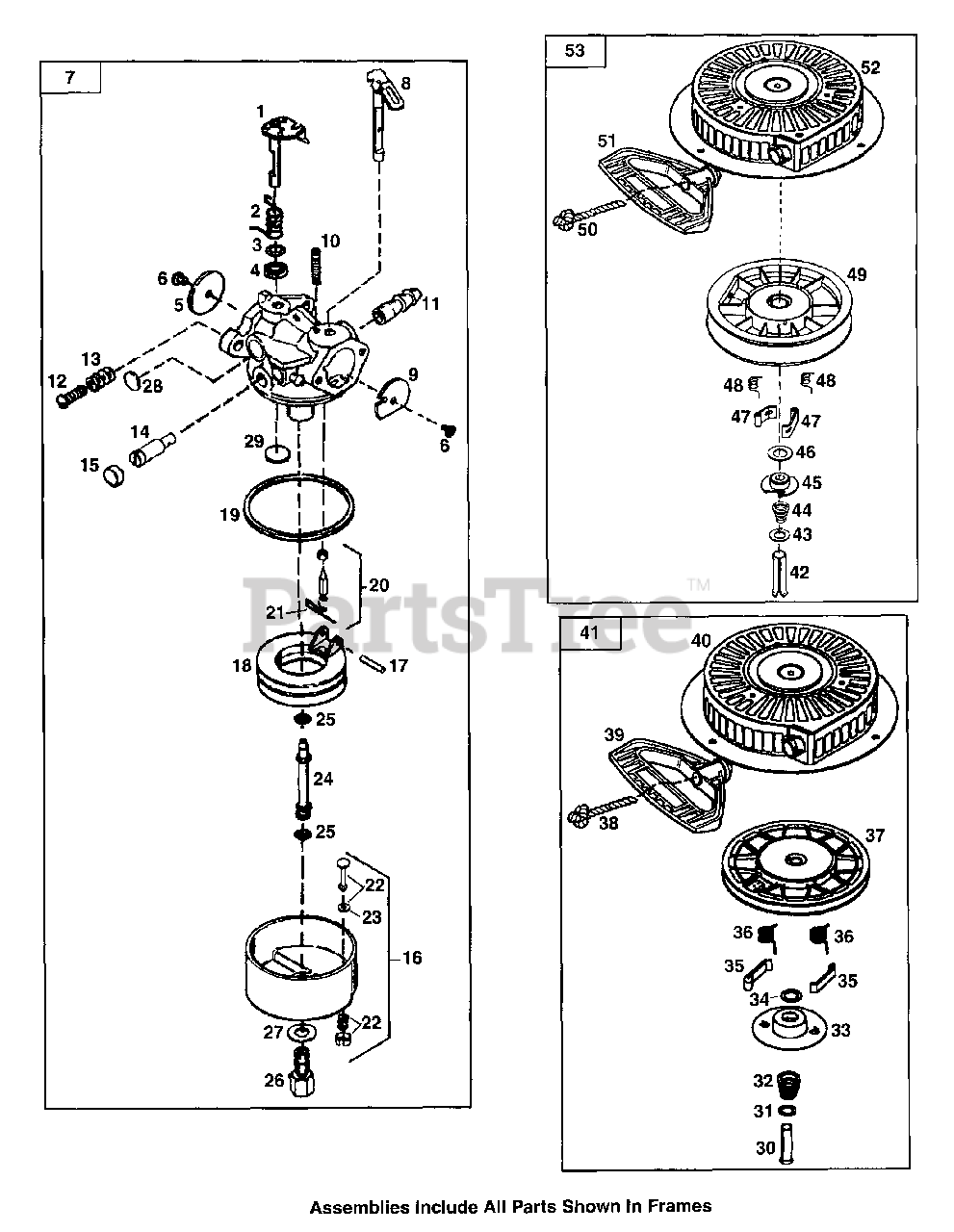

Carburetor & Starter (Model 522WE) Parts Diagram

  • Title
1

Cub Cadet TC-631615

Throttle Shaft & Lever Ass'y

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

3

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

4

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 7

0

5

Cub Cadet TC-631036

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

7

Cub Cadet TC-640058

Carburetor Ass'y
(Superseded to TC-640058A)

$109.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-632118

Choke Shaft & Lever Ass'y

$7.49

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-631890

Choke Shutter

$1.99

$

In Stock, only 1 left!

0

10

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

11

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet TC-650417

Throttle Crack/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, only 4 left!

0

13

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, Qty 5

0

14

Cub Cadet TC-640018

Idle Restrictor Screw

$8.99

$

In Stock, only 1 left!

0

15

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 5

0

16

Cub Cadet TC-631951

Float Bowl

$17.99

$

In Stock, only 2 left!

0

17

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

18

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 7

0

19

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

20

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

22

Cub Cadet TC-27136A

Bowl Drain Ass'y

$7.49

$

In Stock, only 1 left!

0

23

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 15

0

24

Cub Cadet TC-640019

Main Nozzle Tube

$6.99

$

In Stock, Qty 12

0

25

Cub Cadet TC-632547

Main Nozzle Tube "O" Ring

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet TC-640059

High Speed Bowl Nut

$5.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-27110A

Bowl Nut Washer

$2.49

$

In Stock, only 3 left!

0

28

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

30

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl. Ref #31)

$5.49

$

In Stock, only 3 left!

0

$1.99

$

In Stock, Qty 5

0

32

Cub Cadet TC-590697

Brake Spring

$3.99

$

In Stock, only 1 left!

0

33

$7.49

$

In Stock, only 1 left!

0

$1.99

$

In Stock, only 4 left!

0

35

Cub Cadet TC-590698

Starter Dog

$6.99

$

In Stock, only 4 left!

0

36

Cub Cadet TC-590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

37

Cub Cadet TC-590709

Pulley & Rewind Spring Ass'y

$18.99

$

In Stock, only 1 left!

0

38

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 12

0

39

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

40

Cub Cadet TC-590734

Starter Housing Ass'y

$34.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-590733

Rewind Starter Ass'y
(Superseded to TC-590789)

$87.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-590599A

Spring Pin

Note: (Incl. Ref #31)

$5.49

$

In Stock, only 3 left!

0

$1.99

$

In Stock, Qty 5

0

44

Cub Cadet TC-590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

45

$3.99

$

Usually ships in 3-12 days

0

$1.99

$

In Stock, only 4 left!

0

47

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

48

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

49

Cub Cadet TC-590682

Pulley & Rewind Spring Ass'y

$

$

Not available

50

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 12

0

51

Cub Cadet TC-590574

Mitten Grip Starter Handle

$5.49

$

In Stock, only 1 left!

0

52

Cub Cadet TC-590750

Starter Housing Ass'y

$

$

Not available

53

Cub Cadet TC-590749

Rewind Starter Ass'y
(Superseded to TC-590789)

$87.99

$

Usually ships in 3-12 days

0
