522 WE (31AH623D100) - Cub Cadet 22" Snow Thrower (2001) Gear Assembly Parts Diagram

22" Snow Thrower

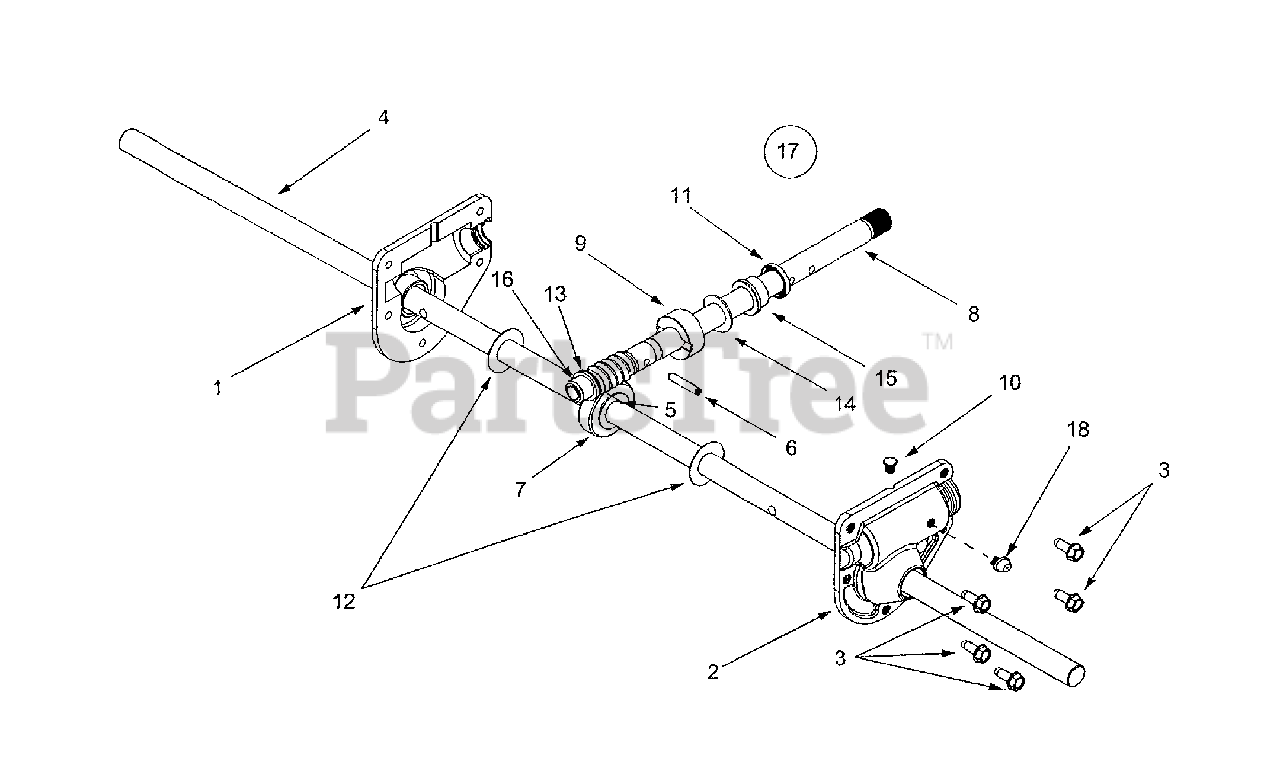

Gear Assembly Parts Diagram

  • Title
1

Cub Cadet 618-0123

RH Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 11

0

2

Cub Cadet 618-0418

LH Housing w/Fitting
(Superseded to 918-0418A)

$62.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1020

Spiral Axle, 22"
(Superseded to 711-1020A)

Note: (Model 522 WE)

$

$

Not available

Cub Cadet 711-0908

Spiral Axle, 24"
(Superseded to 711-0908A)

Note: (Model 724 WE)

$

$

Not available

5

Cub Cadet 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0143

Spring Spirol Pin, .25 x 1.25

$4.99

$

In Stock, Qty 9

0

7

Cub Cadet 717-0528

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

Cub Cadet 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

9

Cub Cadet 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 11

0

10

Cub Cadet 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0445

Flat Washer, .76 x 1.5 x .060

$4.49

$

In Stock, Qty 11

0

15

Cub Cadet 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 16

0

16

Cub Cadet 741-0663

Flange Bearing, .503 ID x .75 OD

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 618-0413A

Gear Assy Complete, 22"

Note: (Model 522 WE)

$

$

Not available

Cub Cadet 618-0414

Gear Assy Complete, 24"
(Superseded to 918-0414B)

Note: (Model 724 WE)

$

$

Not available

18

Cub Cadet 737-3000

Grease Fitting, 3/16" Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 737-0168

Grease (Two Ounces)
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0
