522 LS (246-631-100) - Cub Cadet Log Splitter Engine (1996) Rewind Starter And Flywheel Assemblies Parts Diagram

Log Splitter Engine

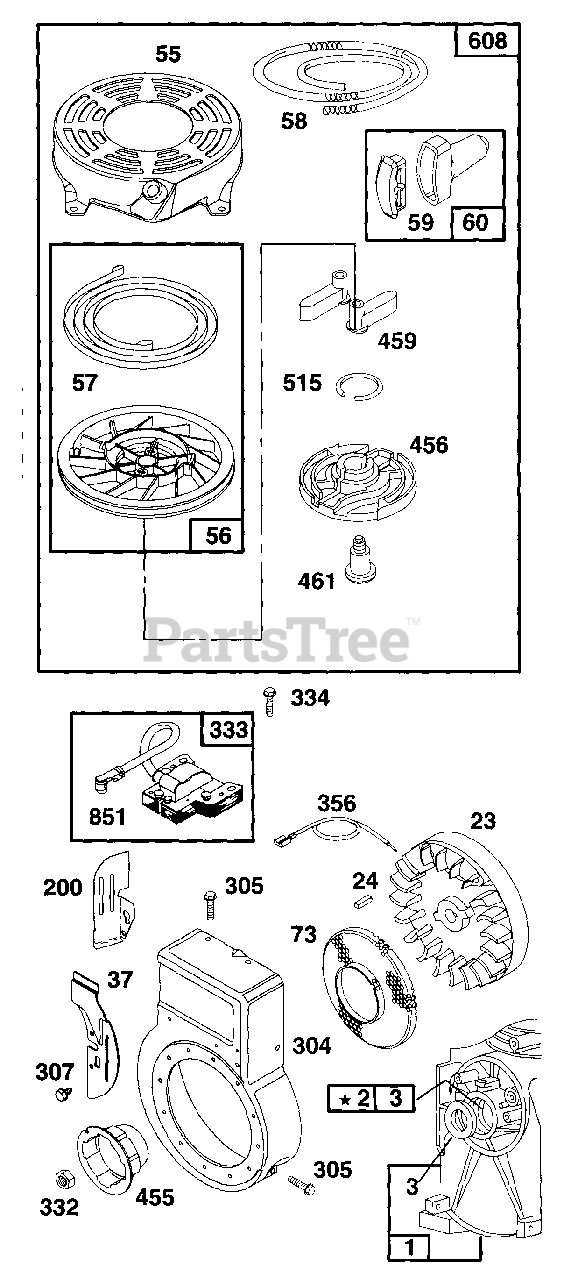

Rewind Starter And Flywheel Assemblies Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399268

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included in Gasket Set - Part No. BS-495603.

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-297229

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

55

Cub Cadet BS-497440

Housing-Rewind Starter
(Superseded to BS-691421)

$64.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-498144

Pulley-Rewind Starter

$19.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-263074

Spring-Rewind Starter
(Superseded to BS-498144)

$19.99

$

In Stock, Qty 20+

0

58

Cub Cadet BS-281288

Rope-Rewind Starter
(Superseded to BS-692298)

Note: Cut to Required Length.

$27.99

$

In Stock, only 1 left!

0

59

Cub Cadet BS-396892

Insert-Starter Grip

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Grip-Rewind Starter

$4.99

$

Usually ships in 2-12 days

0

73

Cub Cadet BS-225176

Screen-Rotating

$

$

Not available

200

Cub Cadet BS-223886

Guide-Air

$

$

Not available

304

Cub Cadet BS-495759

Housing-Blower

$

$

Not available

305

Cub Cadet BS-94619

Screw-Blower Housing Mounting
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 13

0

307

Cub Cadet BS-94680

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

332

Cub Cadet BS-92284

Nut Flywheel
(Superseded to 712-3056)

$4.99

$

In Stock, only 3 left!

0

333

Cub Cadet BS-397358

Armature Group

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-93414

Screw-Armature Mtg.

$

$

Not available

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-225121

Cup-Starter
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-281503

Retainer
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-281505

Pawl-Starter
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

461

Cub Cadet BS-94943

Screw-Shoulder
(Superseded to BS-691696)

$11.99

$

In Stock, Qty 6

0

515

Cub Cadet BS-263073

Spring-Retainer
(Superseded to BS-691855)

$4.49

$

In Stock, only 3 left!

0

608

Cub Cadet BS-497830

Starter Assy.-Rewind

Note: Note: Includes BS-94128 Hex. Screws and BS-92987 Hex. Nuts (4 Each)

$49.99

$

In Stock, only 3 left!

0

851

Cub Cadet BS-221798

Cable Term.-Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet BS-94128

Hex. Screws
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet BS-92987

Hex. Nuts
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet BS-495603

Gasket Set

Note: Includes item 3

$32.99

$

In Stock, Qty 20+

0
