522 LS (245-631-100) - Cub Cadet Log Splitter (1995) General Assembly Log Splitter Parts Diagram

Log Splitter

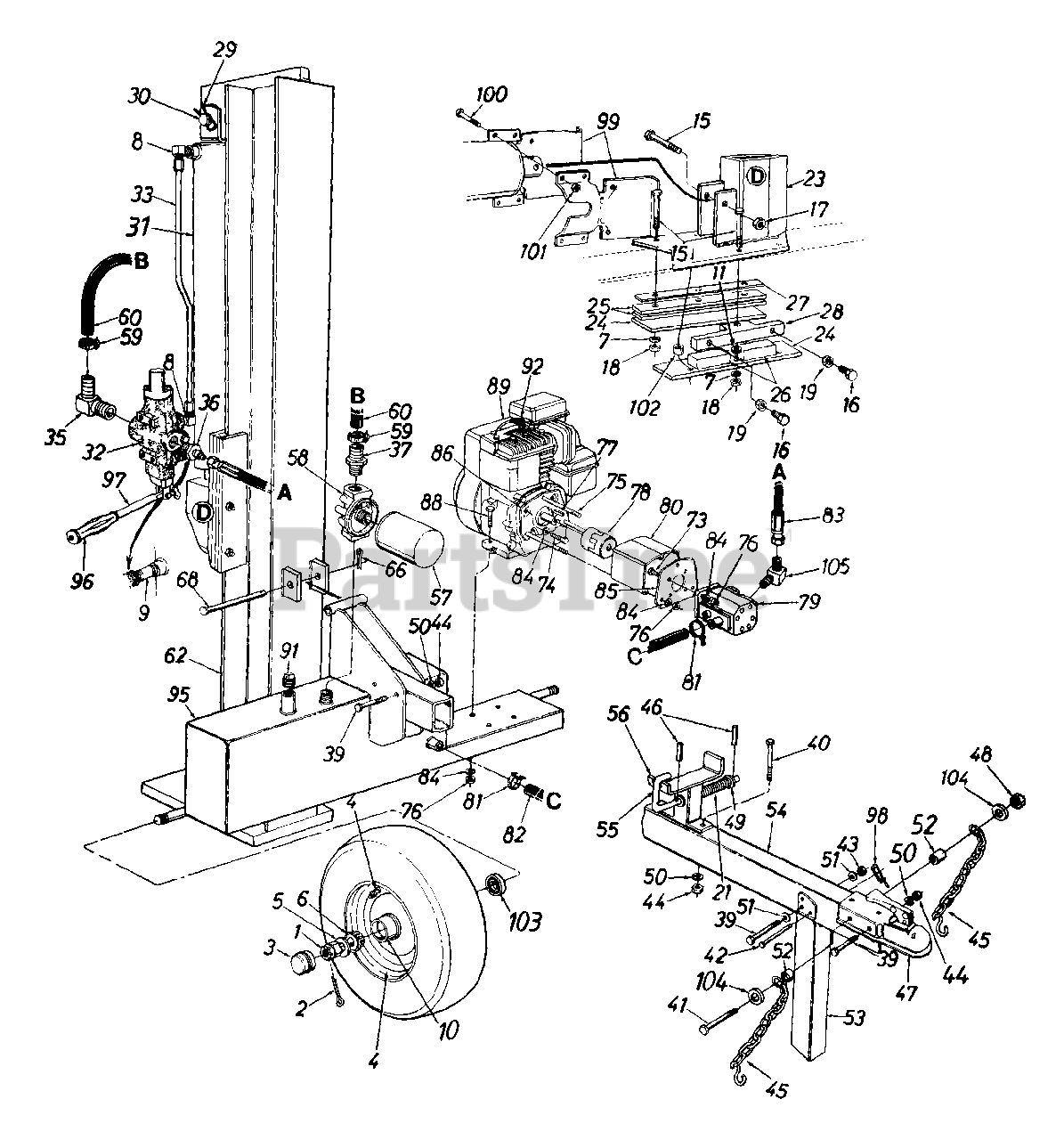

General Assembly Log Splitter Parts Diagram

  • Title

1

Cub Cadet 712-0359

Slotted Nut 3/4-16 Thd.

$11.99

$

In Stock, only 1 left!

0

2

Cub Cadet 714-0162

Cotter Pin 5/32" Dia. x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

4

Cub Cadet 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

Cub Cadet 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1016-0941

WHEEL ASSEMBLY - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0872

Tire Only

$169.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017

Rim Only
(Superseded to 634-0188)

Variations

Cub Cadet 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0499

USE 634-0189 RIM ASM-3.75 X 8 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

Cub Cadet 734-0255

Air Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0351

Fl-Wash .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 741-3028

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

7

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 737-0192

90 Deg. Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 737-0238

Pipe Nipple 1/2 NPT

$25.99

$

In Stock, Qty 6

0

10

Cub Cadet 741-3029

Bearing Cup
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0192

FI-Wash .531" i.D. x.94" O.D.

$4.49

$

In Stock, Qty 18

0

15

Cub Cadet 710-1018

Hex Bolt 1/2-20 x 2.75" Lg. (Grade 8)

$11.99

$

In Stock, Qty 19

0

16

Cub Cadet 710-1032

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

17

Cub Cadet 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0333

Hex Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available

19

Cub Cadet 712-3001

Hex Jam Nut 3/8-24 Thd. (Grade 5)
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

21

Cub Cadet 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 19

0

23

Cub Cadet 781-0323B

Wedge Ass'y.
(Superseded to 753-04120)

Variations

Cub Cadet 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0498

Wedge Assembly Replacement Kit - OLD CUB YELLOW (0498)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0323B-0716

Wedge Assembly Replacement Kit - CUB YELLOW-99 (0716)

$342.99

$

Usually ships in 3-6 days

0

$342.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-0537

Back Plate

Variations

Cub Cadet 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$44.99

$

In Stock, Qty 7

0

Cub Cadet 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

Cub Cadet 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0537-0498

USE 781-0537-0716 PLATE-PUSHE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 781-0350A

Fixed Side Gib

Variations

Cub Cadet 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

Cub Cadet 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

Cub Cadet 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

Cub Cadet 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

Cub Cadet 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

Cub Cadet 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 18

0

27

Cub Cadet 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

Cub Cadet 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

Cub Cadet 781-0356

Floating Gib Plate

Variations

Cub Cadet 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 714-0203

External Cotter Pin

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 715-0216

Cylinder Mounting Pin

$

$

Not available

31

Cub Cadet 718-0262

Hydraulic Cylinder

Variations

Cub Cadet 718-0262-0498

CYL KIT-LOG - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 718-0262-0638

CYL KIT-LOG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 718-0262-0662

CYL KIT-LOG - OYSTER GRAY (0662)

$

$

Not available

$

$

32

Cub Cadet 717-0899

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 717-0899-0483

Logsplitter Valve - CHARCOAL GRAY (0483)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 717-0899-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 717-0899-0638

Logsplitter Valve - MTD/TROY-BILT RED (0638)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 717-0899-0648

Logsplitter Valve - TECH GRAY (0648)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 717-0899-0662

Logsplitter Valve - OYSTER GRAY (0662)

$383.99

$

In Stock, only 2 left!

0

Cub Cadet 717-0899-0498

LOGSPLITTER VALVE - OLD CUB YELLOW (0498)

$

$

Not available

$383.99

$

In Stock, only 2 left!

0

33

Cub Cadet 727-0323

Metal Pressure Tube

$

$

Currently unavailable

35

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 737-0279

Adapter

$

$

Not available

37

Cub Cadet 737-0235

3/4" Hose Barb.

$23.99

$

In Stock, only 2 left!

0

39

Cub Cadet 710-3066

Hex Bolt 3/8-16 x 2.75" Lg. (Grade 8)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 17

0

41

Cub Cadet 710-3080

Hex Bolt 3/8-16 x 4" Lg. (Grade 5)
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

42

Cub Cadet 711-0813

Clevis Pin 5/16 x 2.5" Lg.
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

44

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 713-0433

Chain - Tow Hitch
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

46

Cub Cadet 715-0116

Roll Pin

$

$

Not available

47

Cub Cadet 727-0311

Hitch Coupler

$

$

Not available

48

Cub Cadet 712-3000

Hex Ctr. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 9

0

49

Cub Cadet 736-0116

FI-Wash..635" i.D. x.93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0185

FI-Wash..406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 750-0507

Spacer 3/8" I.D. x .625" O.D.
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

53

Cub Cadet 781-0162

Jack Stand

Variations

Cub Cadet 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0162-0648

USE 781-0162-0637 STAND-JACK - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

54

Cub Cadet 781-0399

Tongue Tube
(Superseded to 781-0680B)

Variations

Cub Cadet 781-0399-0483

USE 781-0680B-0637 TUBE-TONGU - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0399-0629

USE 781-0680B-0637 TUBE-TONGU - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0399-0637

USE 781-0680B-0637 TUBE-TONGU - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0399-0638

USE 781-0680B-0637 TUBE-TONGU - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0399-0665

USE 781-0680B-0637 TUBE-TONGU - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0399-0498

TONGUE TUBE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0399-0648

TONGUE TUBE - TECH GRAY (0648)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 781-0370A

Locking Rod

$

$

Not available

56

Cub Cadet 781-0398

Beam Support Ass'y.

Variations

Cub Cadet 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0398-0498

BEAM SUPPORT ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 723-0405

Filter Element
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

58

Cub Cadet 723-0406

Filter Head
(Superseded to 681-0179)

$

$

Not available

59

Cub Cadet 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

62

Cub Cadet 781-0404A

Vertical Beam Ass'y.

Variations

Cub Cadet 781-0404A-0637

BEAM ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

73

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

75

Cub Cadet 710-0363

Hex Bolt 5/16-24 x 4" Lg.

$

$

Not available

76

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

77

Cub Cadet 714-0122

Sq.-Key 3/16" x .75"

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 717-0891

Flexible Coupling
(Superseded to 917-0891)

$159.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 717-0936

Gear Pump
(Superseded to 753-05194)

$1509.99

$

In Stock, only 1 left!

0

80

Cub Cadet 719-0278

Coupling Shield

$72.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 727-0641

Suction Hose

$

$

Not available

83

Cub Cadet 727-0452

High Pressure Hydraulic Hose

$

$

Not available

84

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

85

Cub Cadet 781-0097

Rear Coupling Support Brkt.
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

86

Cub Cadet 781-0098

Front Coupling Support Bkrt.
(Superseded to 781-0098A-0637)

Variations

Cub Cadet 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

89

Engine

$

$

Not available

91

Cub Cadet 737-0236

L-Vent Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

92

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

95

Cub Cadet 781-0501A

Tank Ass'y.

$

$

Not available

96

Cub Cadet 720-0235

Grip
(Superseded to 720-04088)

$10.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 747-0583

Control Handle
(Superseded to 947-0583)

$129.99

$

In Stock, only 3 left!

0

98

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

99

Cub Cadet 781-0168A

Stripper Plate

Variations

Cub Cadet 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0168A-0498

STRIPPER HALF (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0168A-0662

USE 781-0168A-0637 STRIPPER H - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0168A-0716

STRIPPER HALF - CUB YELLOW-99 (0716)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 710-3144

Hex Bolt 3/8-16 x 2.0" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

101

Cub Cadet 712-0430

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

102

Cub Cadet 750-0743

Spacer 1/2" I.D. x.68" Lg.

$

$

Not available

103

Cub Cadet 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

104

Cub Cadet 736-0262

Fl-Wash. 3/8" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 10

0

105

Cub Cadet 737-0265

90 Deg. Male Adapter

$

$

Not available
