522 E (317E623D100) - Cub Cadet 22" Snow Thrower (1997) Gear Assembly Parts Diagram

22" Snow Thrower

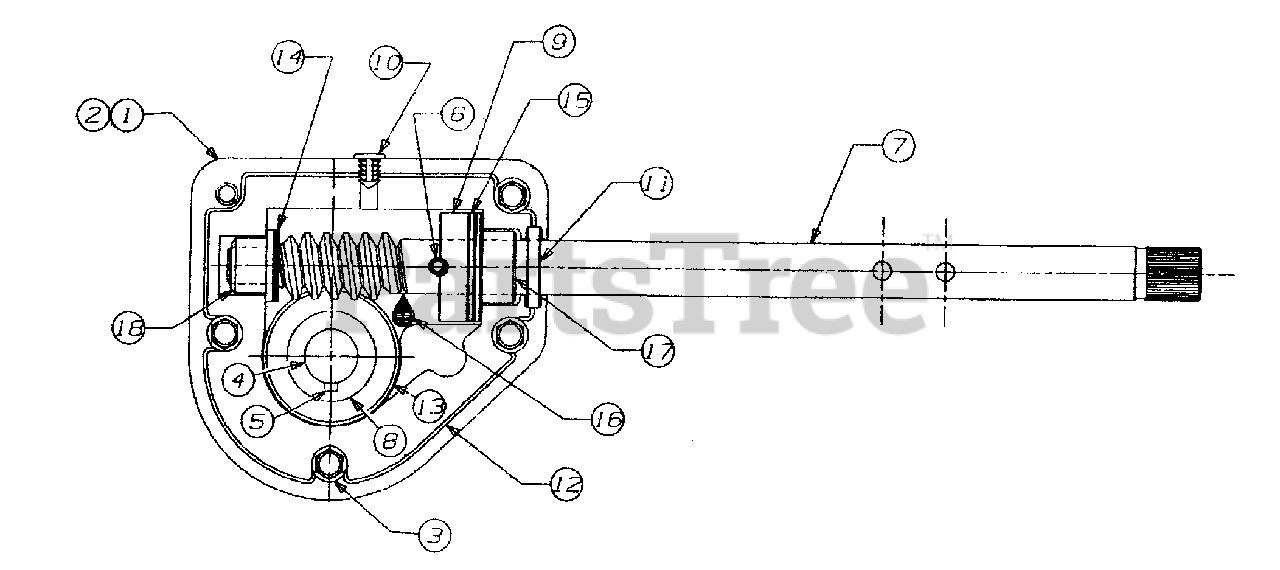

Gear Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0123

Housing-R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 9

0

2

Cub Cadet 618-0124

Housing-L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 8

0

3

Cub Cadet 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1020

Axle, Spiral 22" (522E)
(Superseded to 711-1020A)

$

$

Not available

Cub Cadet 711-0908

Axle, Spiral 24" (724E)
(Superseded to 711-0908A)

$

$

Not available

Cub Cadet 711-0909

Axle, Spiral 26" (926E)
(Superseded to 711-0909A)

$

$

Not available

Cub Cadet 711-1024

Axle, Spiral 30" (1030E)
(Superseded to 711-1024A)

$136.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-0161

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0143

Pin, Spiral, .25 x 1.25

$4.99

$

In Stock, Qty 8

0

7

Cub Cadet 717-0526

Worm, Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

8

Cub Cadet 717-0528

Gear, Worm, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

Cub Cadet 718-0186

Collar, Thrust

$8.49

$

In Stock, Qty 9

0

10

Cub Cadet 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

Seal, Oil, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 759-3746

Sealant, Loctite Ultra Grey 5699

$70.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0351

Washer, Flat, .76 x 1.5 x .03

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0369

Washer,Flat, .5 x 1.0 x .02

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0445

Washer, Flat, .76 x 1.5 x .06

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0

17

Cub Cadet 741-0662

Bearing, Flange, .75 ID x 1.0 OD

$10.99

$

In Stock, Qty 15

0

18

Cub Cadet 741-0663

Bearing, Flange, .75 x 1.0 x .925

$9.99

$

In Stock, Qty 20+

0

$

$

Not available
