522 E (1695468) - Simplicity 22" Snow Thrower Engine Drive Systems Group Parts Diagram

22" Snow Thrower

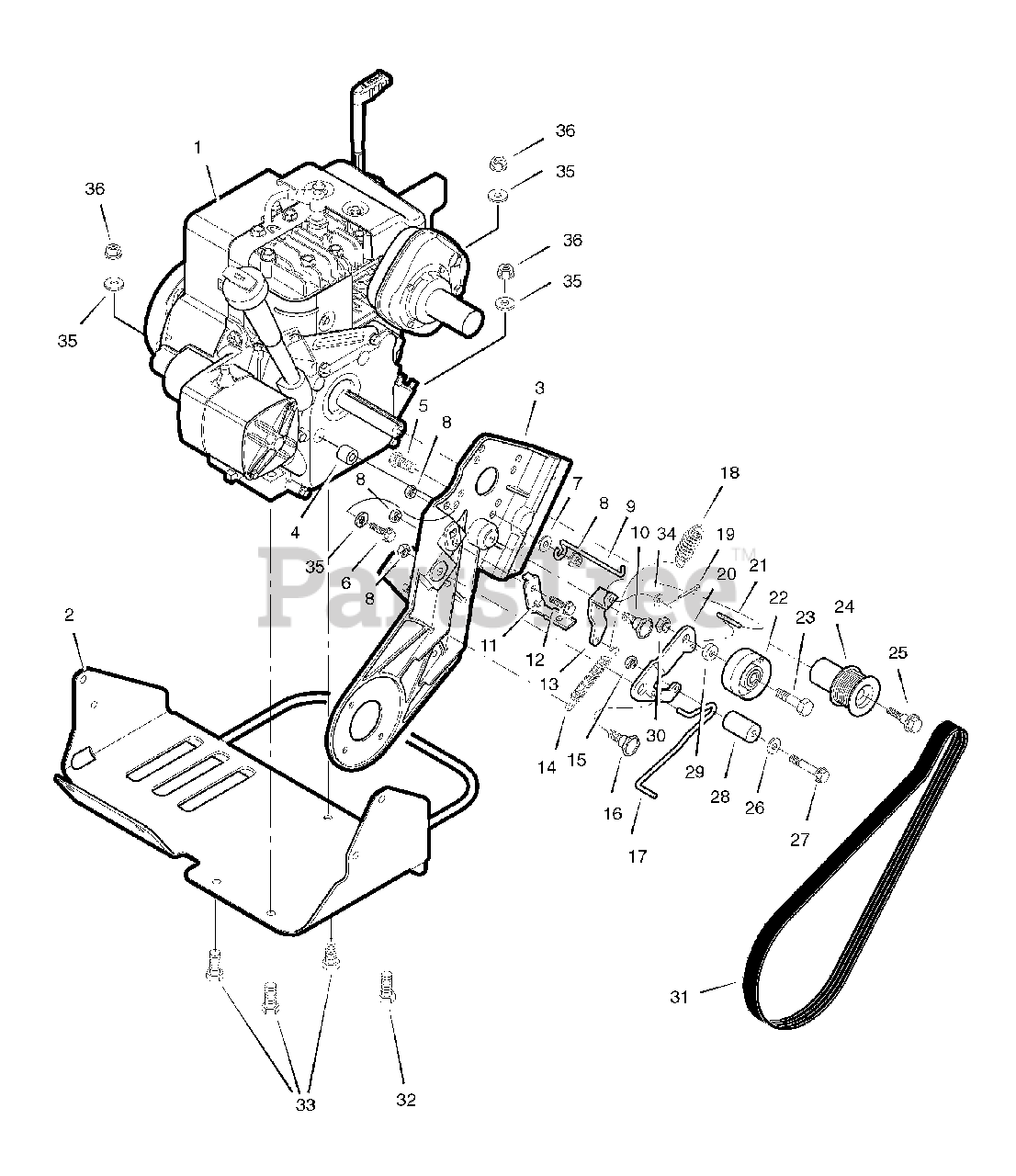

Engine Drive Systems Group Parts Diagram

  • Title

1

Simplicity 09A413-0202-E1

* ENGINE, 5.25GT 4CY Briggs & Stratton Electric Start

Note: (Model # 09A4130202E1, Domestic Only)

$

$

Not available

1

Simplicity 09A413-0203-E1

* ENGINE, 5.25GT 4CY Briggs & Stratton Electric Start

Note: (Model # 09A4130203E1, CE/Export Only)

$

$

Not available

2

Simplicity 1741989HYP

CRADLE ASSEMBLY, Engine

$176.99

$

Usually ships in 2-12 days

0

3

Simplicity 1501872E701MA

FRAME, L.H.

$

$

Not available

4

Simplicity 1502027MA

ANTI-VIBRATION MOUNT, Engine

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1X216MA

BOLT, Hex, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 6X118MA

BOLT, Hex, 5/16-24

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 71391MA

NUT, Hex Center Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 334079MA

GUIDE, Belt

$7.99

$

Usually ships in 2-12 days

0

10

Simplicity 333594MA

BOLT, 1/2 x 11/64

$20.99

$

In Stock, only 1 left!

0

11

Simplicity 333970MA

PAD, Brake

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 579052MA

SCREW, 1/4-20 x 5/8

$9.99

$

In Stock, only 1 left!

0

13

Simplicity 313444MA

IDLER, Arm Pivot

$

$

Not available

14

Simplicity 313473MA

SPRING

$6.49

$

In Stock, only 1 left!

0

15

Simplicity 73826MA

NUT, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 333594MA

BOLT, 1/2 x 11/64

$20.99

$

In Stock, only 1 left!

0

17

Simplicity 1501009MA

WIRE, Brake

$9.99

$

Usually ships in 2-12 days

0

18

Simplicity 313471MA

SPRING

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 121223MA

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1741727YP

ARM, Idler

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 313436MA

ROD, Clutch Linkage

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 48924MA

PULLEY, Idler

$31.99

$

Usually ships in 2-12 days

0

23

Simplicity 1741500MA

SCREW, 3/8-16 x 1-5/8

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1501908MA

PULLEY, Engine

$28.99

$

Usually ships in 2-12 days

0

25

Simplicity 1501907MA

BOLT, Engine Pulley

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 71067MA

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 180044MA

SCREW, 1/4-20 x 2

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1501010MA

PINCH ROLLER

$6.49

$

Usually ships in 2-12 days

0

29

Simplicity 1741499MA

SPACER, Idler

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 590MA

NUT, Hex
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

31

Simplicity 333721MA

BELT, Drive

$

$

Not available

32

Simplicity 001X81MA

BOLT, Hex, 5/16-18

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 47792MA

SCREW, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 414106MA

WASHER, Flat

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 71060MA

LOCKWASHER, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
