522 E (1695468) - Simplicity 22" Snow Thrower Chute System Parts Diagram

22" Snow Thrower

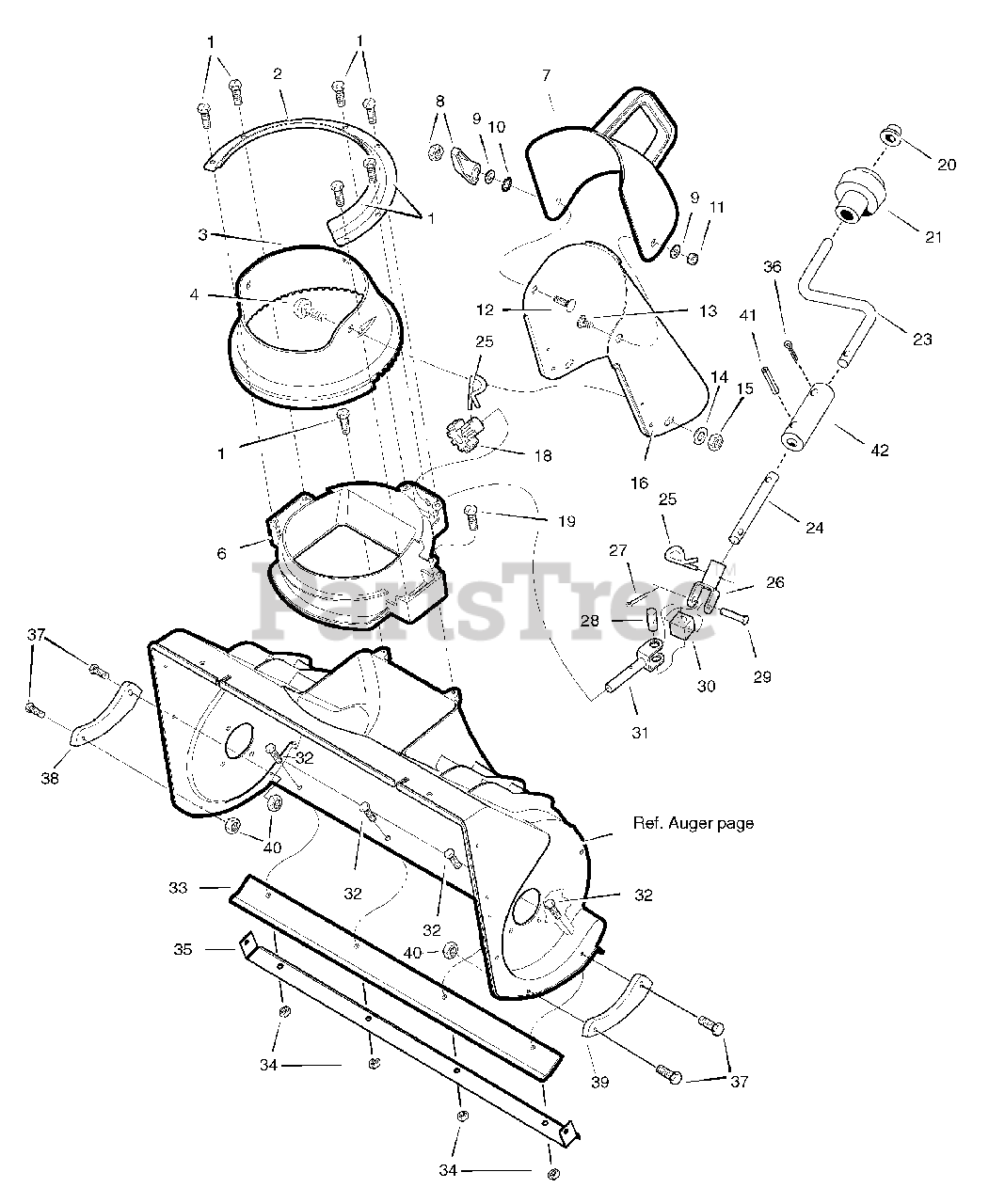

Chute System Parts Diagram

  • Title

1

Simplicity 313685MA

SCREW, 1/4-14

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1502131MA

RETAINER, Chute Ring

$

$

Not available

3

Simplicity 1502132MA

RING, Chute

$40.99

$

Usually ships in 2-12 days

0

4

Simplicity 1740430YP

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1736069YP

NECK, Chute

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 1501918MA

CHUTE, 22" Upper

$30.99

$

Usually ships in 2-12 days

0

8

Simplicity 1501260MA

KNOB, Wing

$7.99

$

In Stock, Qty 7

0

9

Simplicity 71071MA

WASHER, 11/32 x 11/16 OD
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 1742155YP

LOCKWASHER, Shakeproof
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 71391MA

LOCKNUT, Hex, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1742154YP

BOLT, Carriage, 5/16-18
(Superseded to 1740384MA)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1742157YP

BOLT, Upper Chute
(Superseded to 1740384MA)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1740431YP

WASHER, Flat, 11/16

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1740432YP

NUT, Nylock, 5/16-18

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 1736382YP

CHUTE, Lower

$62.99

$

Usually ships in 2-12 days

0

18

Simplicity 1501067MA

GEAR, 9T

$17.99

$

In Stock, only 2 left!

0

19

Simplicity 313685MA

SCREW, 1/4-14 x 3/4

$5.49

$

Usually ships in 2-12 days

0

20

Simplicity 1740420MA

NUT, Push

$

$

Not available

21

Simplicity 1714084SM

KNOB, Sleeve

$12.99

$

In Stock, only 1 left!

0

23

Simplicity 1733369SM

CRANK, Chute Rotation

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1720576SM

HANDLE, Chute Rotator, Lower

$21.99

$

Usually ships in 2-12 days

0

25

Simplicity 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1741997YP

YOKE ASSEMBLY, Adapter

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 579493MA

PIN, Cotter, 1/2

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

29

Simplicity 578309MA

PIN, Clevis

$5.49

$

In Stock, Qty 7

0

30

Simplicity 578063MA

HOUSING, Universal

$5.49

$

In Stock, only 3 left!

0

31

Simplicity 1501873MA

ROD, Lower Crank

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 302628MA

SCREW, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 7

0

33

Simplicity 1501863MA

BLADE, Scraper

$24.99

$

In Stock, only 1 left!

0

34

Simplicity 15X143MA

LOCKNUT, Hex, 1/4-20

$4.99

$

In Stock, Qty 13

0

35

Simplicity 1734321SM

PLATE, Reinforcement

$

$

Not available

36

Simplicity 1740346MA

CLIP, Hairpin, 3/32 x 1-5/8"

$2.99

$

Usually ships in 2-12 days

0

37

Simplicity 1741504YP

SCREW, Torx, 10-32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

38

Simplicity 1740398MA

SKID SHOE, R.H.

$8.49

$

In Stock, only 4 left!

0

39

Simplicity 1740397MA

SKID SHOE, L.H.

$8.49

$

In Stock, only 4 left!

0

40

Simplicity 1740382SM

NUT, Nylock, 10-32

$4.49

$

Usually ships in 2-12 days

0

41

Simplicity 1740347MA

PIN, Spring, 5/32 x 1"

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 1720577SM

SPLICE, Chute Handle

$17.99

$

Usually ships in 2-12 days

0
