522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Handle Assembly Parts Diagram

22" Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

Murray 1742020HYP

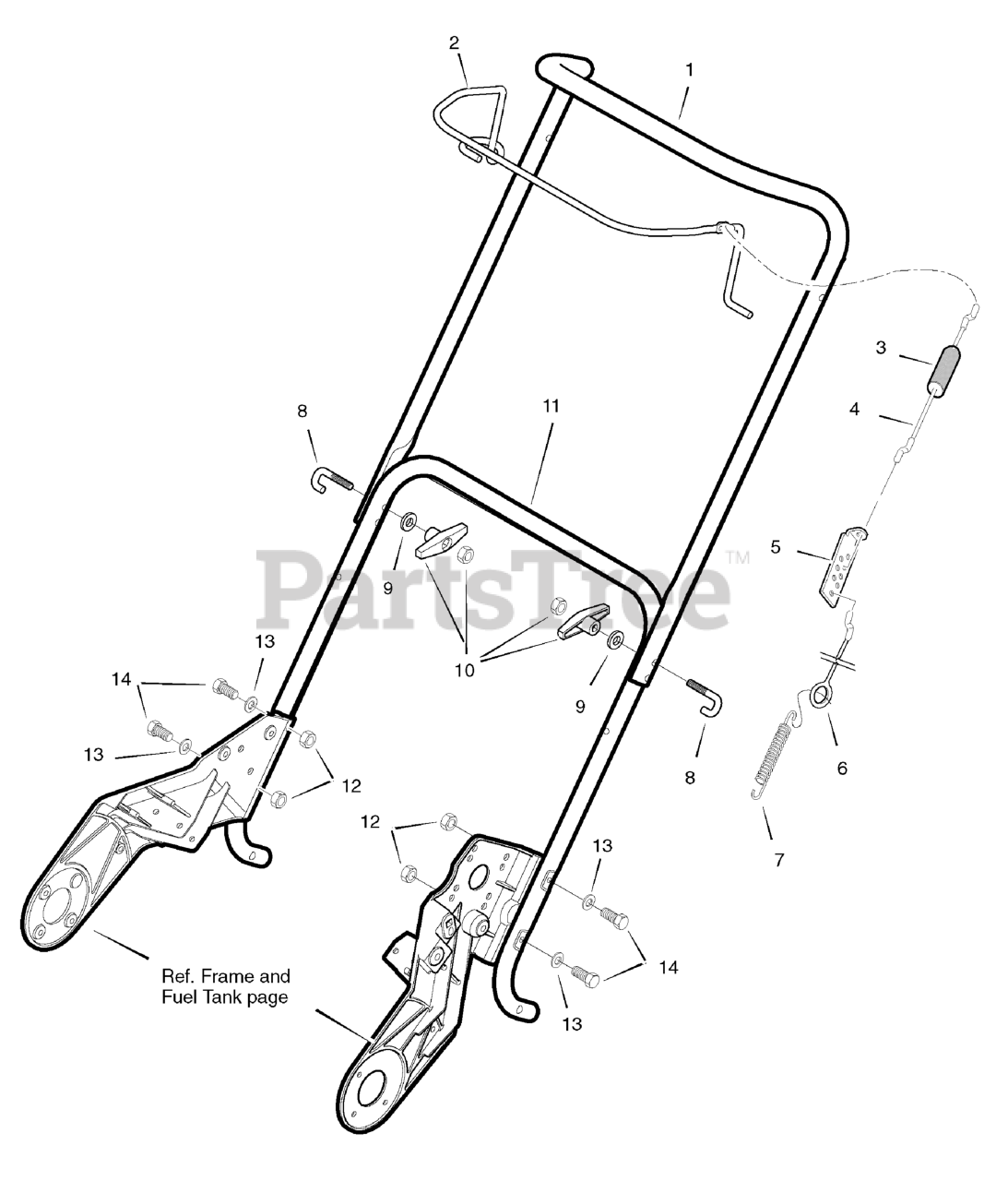

HANDLE & GRIP ASSEMBLY

$119.99

$

Usually ships in 2-12 days

0

2

Murray 1742021HYP

CONTROL, Bail

$50.99

$

Usually ships in 2-12 days

0

3

Murray 308146MA

BOOT, Clutch Spring

$6.49

$

In Stock, only 2 left!

0

4

Murray 1502042MA

CABLE, Upper Control

$14.99

$

Usually ships in 2-12 days

0

5

Murray 313441MA

BRACKET, Control Adjust

$

$

Not available

6

Murray 313448MA

CABLE, Lower Control

$10.99

$

Usually ships in 2-12 days

0

7

Murray 313471MA

SPRING

$4.99

$

In Stock, only 1 left!

0

8

Murray 1501877MA

Bolt, "U"

$6.49

$

Usually ships in 2-12 days

0

9

Murray 311936MA

WASHER

$7.49

$

Usually ships in 2-12 days

0

10

Murray 1740436MA

KNOB, "T"
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

11

Murray 1741982HYP

HANDLE, Lower

$87.99

$

Usually ships in 2-12 days

0

12

Murray 73826MA

NUT
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

13

Murray 71067MA

WASHER

$4.49

$

In Stock, only 1 left!

0

14

Murray 313674MA

SCREW, 1/4 - 20 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0
