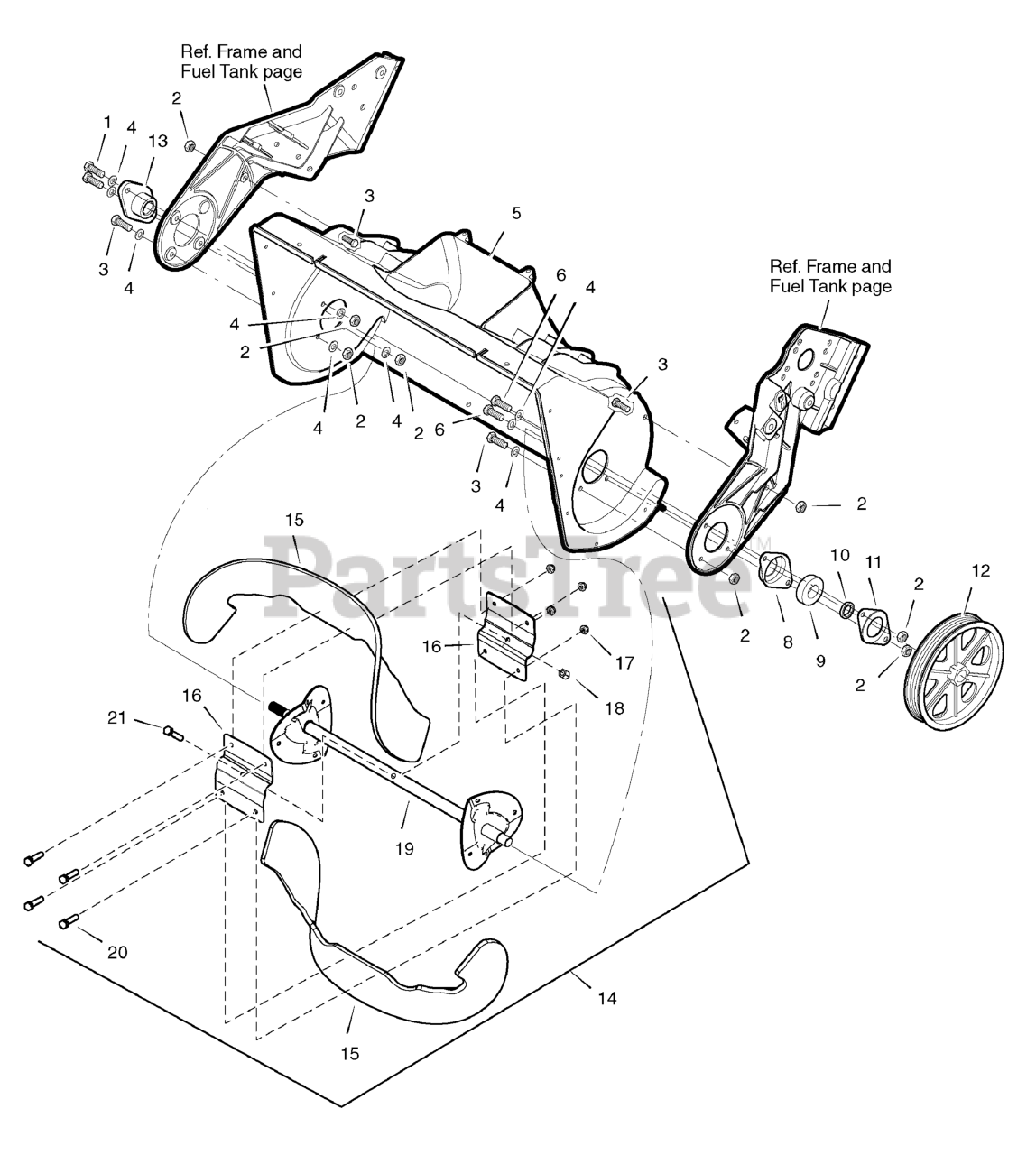

522 E (1695445) - John Deere 22" Snow Thrower (2008-11) Auger and Housing Parts Diagram

22" Snow Thrower

Auger and Housing Parts Diagram

  • Title

1

Murray 710263MA

SCREW, 1/4 - 20 x 1

$3.99

$

Usually ships in 2-12 days

0

2

Murray 73826MA

NUT, Hex, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Murray 302628MA

SCREW, 1/4 - 20 x 3/4

$4.49

$

In Stock, Qty 7

0

4

Murray 71067MA

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

5

Murray 1736375YP

HOUSING ASSEMBLY, Auger

$494.99

$

Usually ships in 2-12 days

0

6

Murray 579052MA

SCREW, 1/4 - 20 x 5/8

$9.99

$

In Stock, only 1 left!

0

8

Murray 580251MA

BEARING, Retainer

$16.99

$

Usually ships in 2-12 days

0

9

Murray 43846MA

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Murray 578101MA

SLEEVE, Spacer

$4.99

$

Usually ships in 2-12 days

0

11

Murray 334287MA

PLATE, Bearing Retainer

$7.49

$

In Stock, only 1 left!

0

12

Murray 333446MA

PULLEY, Auger Drive V6

$22.99

$

Usually ships in 2-12 days

0

13

Murray 577023MA

BEARING, Flange

$5.99

$

In Stock, only 3 left!

0

14

Murray 1735771YP

AUGER HOUSING

Note: (Incl. Ref. Nos. 15, 16, 17, 18, 19, 20, & 21)

$154.99

$

Usually ships in 2-12 days

0

15

Murray 1735606YP

BLADE, Auger, Black

$

$

Not available

16

Murray 1735609YP

BRACKET, Auger, Center

$13.99

$

Usually ships in 2-12 days

0

17

Murray 1920397SM

NUT, Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1919438SM

NUT, Hex-Lock, ESNA Light, 5/16-18, NC3B, Black
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Murray 1735610YP

SHAFT, Sub

$107.99

$

Usually ships in 2-12 days

0

20

Murray 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1921221SM

CAPSCREW, Hex-Head, 5/16-18 x 1-1/2, G5 Black
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0
