522 (71691412) - Allis-Chalmers 22" Snow Thrower, 5hp Transmission-Peerless Model 700-027 Parts Diagram

22" Snow Thrower, 5hp

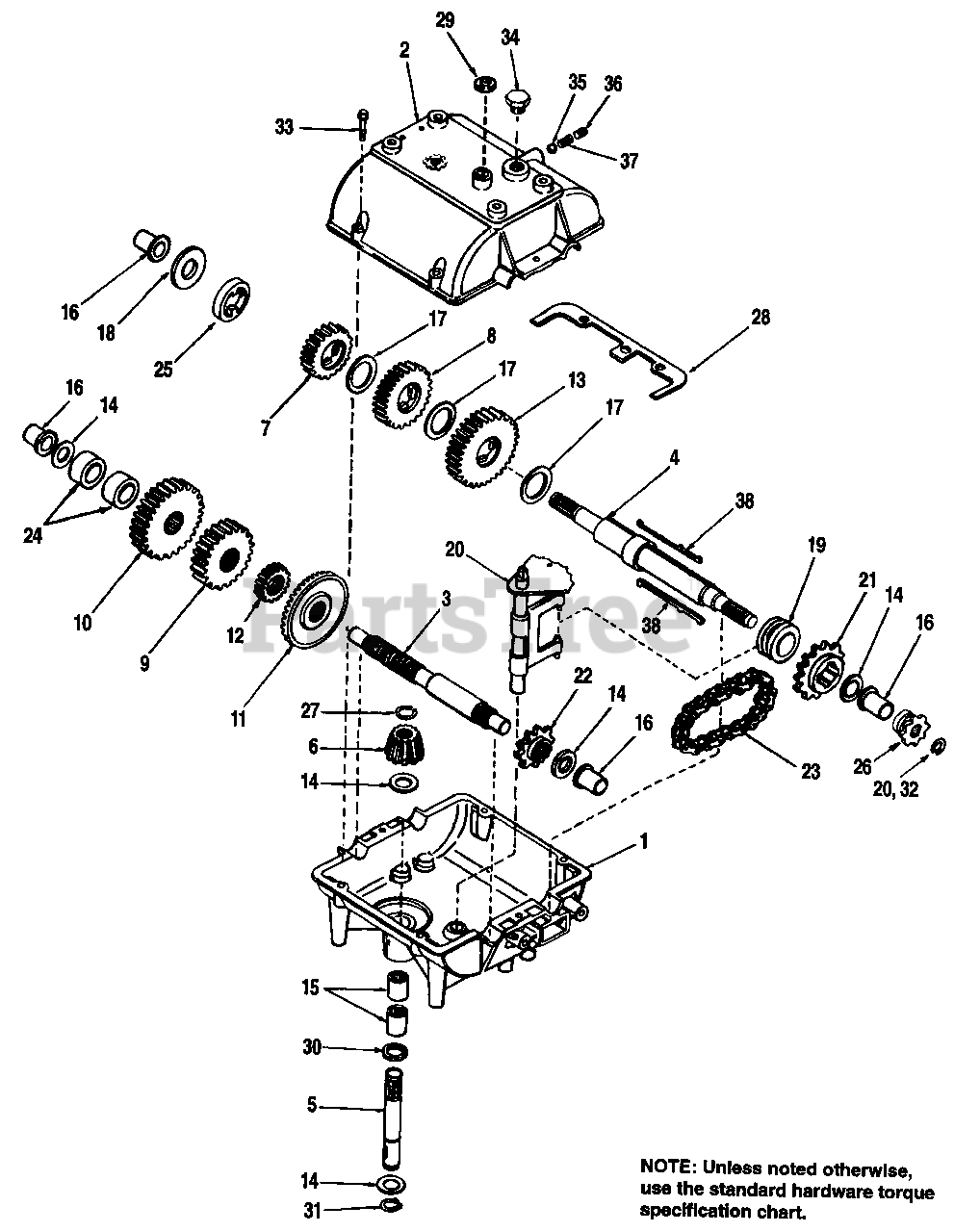

Transmission-Peerless Model 700-027 Parts Diagram

  • Title
1

Simplicity 770061

CASE, Transmission

$18.99

$

In Stock, only 1 left!

0

2

Simplicity 772083

COVER, Transmission

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 776134

SHAFT, Counter

$17.99

$

Usually ships in 2-12 days

0

4

Simplicity 776162

SHAFT, Output & Brake

$

$

Not available

5

Simplicity 776203

SHAFT, Input

$

$

Not available

6

Simplicity 778113A

BEVEL PINION, Input

$

$

Not available

7

Simplicity 778121A

GEAR, Spur (20 teeth)

$

$

Not available

8

Simplicity 778124A

GEAR, Spur (30 teeth)

$

$

Not available

9

Simplicity 778126A

GEAR, Spur (20 teeth)

$

$

Not available

10

Simplicity 778129A

GEAR, Spur (30 teeth)

$

$

Not available

11

Simplicity 778137A

GEAR, Bevel (42 teeth)

$

$

Not available

12

Simplicity 778145

GEAR, Spur (12 teeth)

$

$

Not available

13

Simplicity 778146A

GEAR, Spur (37 teeth)

$

$

Not available

14

Simplicity 780072

WASHER, Thrust

$

$

Not available

15

Simplicity 780086

BEARING, Needle

$

$

Not available

16

Simplicity 780105A

BUSHING, Flanged

$

$

Not available

17

Simplicity 780108

WASHER, Thrust

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 780109

WASHER, Thrust

$

$

Not available

19

Simplicity 784266

COLLAR, Shift

$

$

Not available

20

Simplicity 784270

ROD & FORK ASSY., Shift

$

$

Not available

21

Simplicity 786060

SPROCKET (14 teeth)

$

$

Not available

22

Simplicity 786061

SPROCKET (10 teeth)

$

$

Not available

23

Simplicity 786062A

CHAIN, Roller (No. 41 chain, 22 links)

$

$

Not available

24

Simplicity 786071

SPACER (1-1/8" O.D. x 3/4" I.D. x 3/8" thick)

$

$

Not available

25

Simplicity 786072

SPACER (1-3/8" O.D. x 1/8" I.D. x 3/8" thick)

$

$

Not available

26

Simplicity 786136

SPROCKET, (8 teeth)

$

$

Not available

27

Simplicity 788040

RING, Retaining

$

$

Not available

28

$

$

Not available

29

Simplicity 788069

SEAL, Square Cut

$

$

Not available

30

$

$

Not available

31

Simplicity 792035

RING, Retaining

$

$

Not available

32

Simplicity 792072

RING, Retaining

$172.99

$

Usually ships in 2-12 days

0

33

Simplicity 792073

SCREW, Fl. Hex Hd., Thread Forming, 1/4-20 x 1-1/4

$61.99

$

In Stock, Qty 5

0

34

Simplicity 792074

PLUG, Threaded

$

$

Not available

35

Simplicity 792077

BALL, Steel, 5/16"

$

$

Not available

36

Simplicity 792078

SCREW, Set, 3/8-16 x 3/8

$

$

Not available

37

$

$

Not available

$

$

Not available
