522 (71691022) - Allis-Chalmers 22" Snow Thrower, 5hp Auger Drive Group Parts Diagram

22" Snow Thrower, 5hp

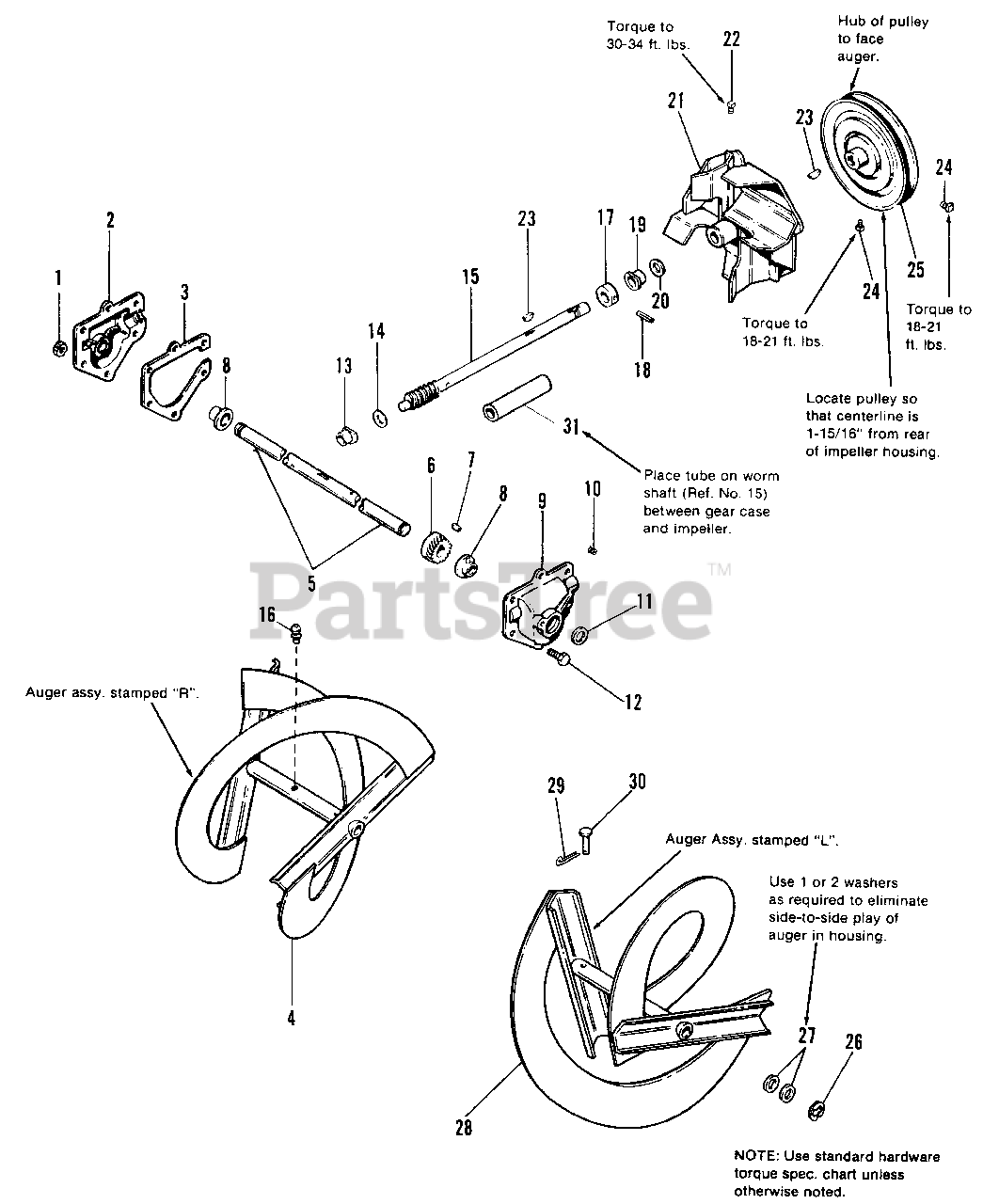

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1923358SM

NUT, Lock. 1 /4-20 (Qty . 5 on 1691011 & 1691181)
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1686821SM

GEAR CASE ASSY., R.H. (1691011 & 1691181 only)

Note: 1685331 includes Ref. No. 2 - 1611794 Gear Case R.H., Ref. No. 3 - 1611784 - Gasket, Ref. No. 8 - 1676026 - Bushing (Qty. 2), Ref. No. 9 - 1611793 Gear Case L.H., and Ref. No. 20 - 1611789 - Oil Seal.

$

$

Not available

2

Simplicity 1686821SM

GEAR CASE ASSY., R.H. (Incl. Ref. No. 8, Qty. 1) (1691411, 1691413, 1691414 only)

$

$

Not available

3

Simplicity 1611792SM

GASKET (1691011 & 1691811 only)

$20.99

$

Usually ships in 2-12 days

0

4

Simplicity 1676328SM

AUGER ASSY., R.H. (Incl. Ref. No. 16, Qty. 1)
(Superseded to 1718781SM)

$148.99

$

Usually ships in 2-12 days

0

5

Simplicity 1675161SM

AUGER, Shaft

$92.99

$

Usually ships in 2-12 days

0

6

Simplicity 1676024SM

GEAR, Worm

$

$

Not available

7

Simplicity 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 16

0

8

Simplicity 1676026SM

BUSHING

$7.99

$

In Stock, only 2 left!

0

9

Simplicity 1686821SM

GEAR CASE ASSY., L.H. (1691011, 1691181 only)

Note: 1685331 includes Ref. No. 2 - 1611794 Gear Case R.H., Ref. No. 3 - 1611784 - Gasket, Ref. No. 8 - 1676026 - Bushing (Qty. 2), Ref. No. 9 - 1611793 Gear Case L.H., and Ref. No. 20 - 1611789 - Oil Seal.

$

$

Not available

10

Simplicity 2817673

PLUG, Pipe, 1/8-NPT

$

$

Not available

11

Simplicity 1676027SM

SEAL, Oil

$

$

Not available

12

Simplicity 1924009SM

CAPSCREW, Hex, 1 4-20 x 7/8 (Qty. 5 on 1691011 & 1691181)
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1666424SM

BUSHING

$27.99

$

Usually ships in 2-12 days

0

14

Simplicity 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 6

0

15

Simplicity 1675162SM

WORM SHAFT

$93.99

$

Usually ships in 2-12 days

0

16

Simplicity 2821133SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1721680SM

COLLAR, Thrust

$

$

Not available

18

Simplicity 2836098SM

PIN, Driv-lok, 3/16 x 1-1/2

$18.99

$

In Stock, Qty 5

0

19

Simplicity 1666425SM

BUSHING

$20.99

$

In Stock, Qty 20+

0

20

Simplicity 1669372SM

SEAL, Oil (1691011 & 1691181 only)

$

$

Not available

21

Simplicity 1611795

IMPELLER ASSY.

$

$

Not available

22

Simplicity 1960474SM

SETSCREW, Sq. Hd., 3/8-16 x 1/2

$5.99

$

In Stock, Qty 5

0

23

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

24

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

25

Simplicity 1679655SM

PULLEY, Input, Auger

$69.99

$

Usually ships in 2-12 days

0

26

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 16

0

27

Simplicity 1960114SM

WASHER (1691011, 1691181) (Use as required on 1691411, 1691413, 1691414)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1718780SM

AUGER ASSY., L.H. (Incl. Ref. No. 16, Qty. 1)

$121.99

$

Usually ships in 2-12 days

0

29

Simplicity 1918447SM

PIN, Cotter, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1612112SM

TUBE

$12.99

$

In Stock, only 1 left!

0
