522 (590-522-150) - Cub Cadet Cloth Collector for 32", 36", 48", 52" Fab Decks att3 Cloth Collector 2008 & After Parts Diagram

Cloth Collector for 32", 36", 48", 52" Fab Decks

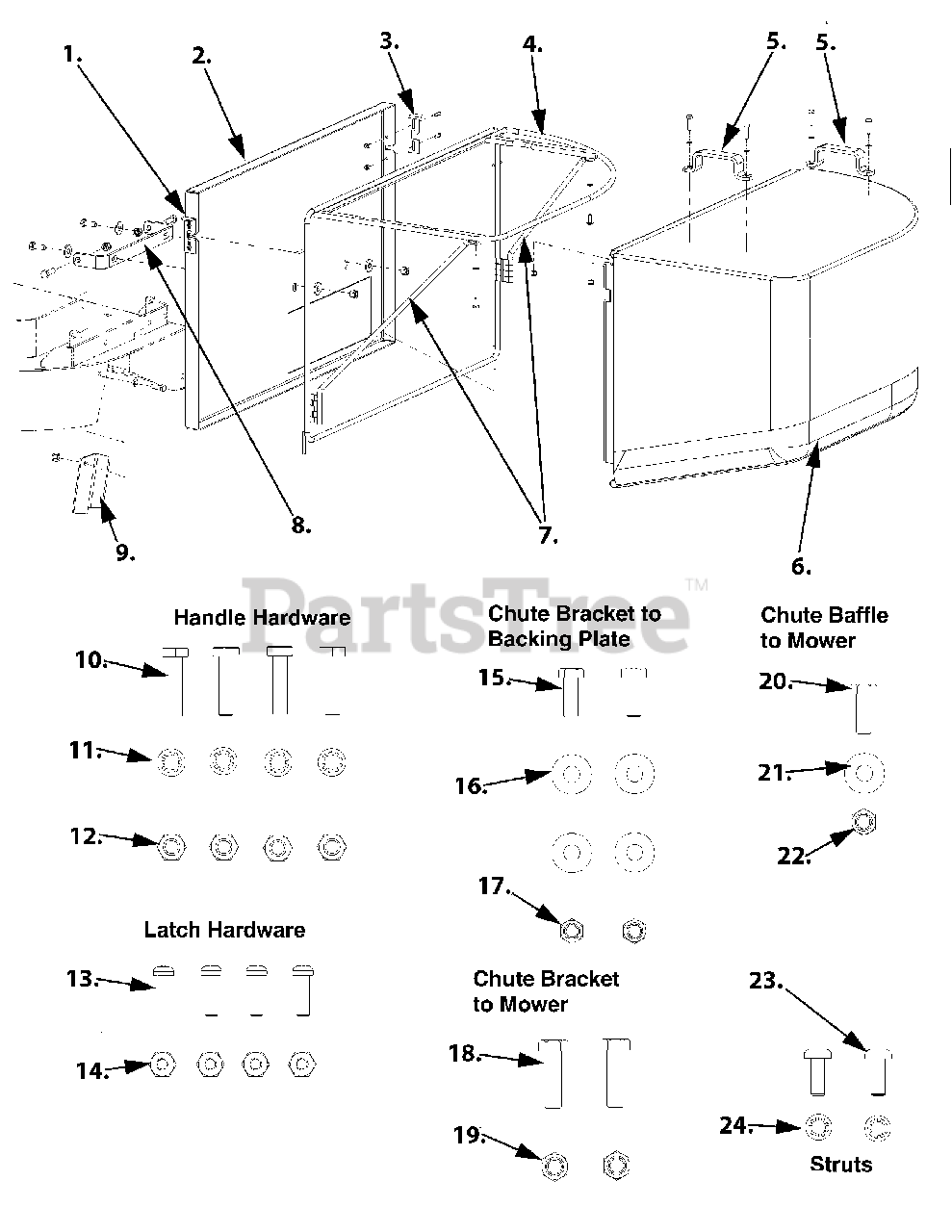

Cloth Collector 2008 & After Parts Diagram

  • Title

1

Cub Cadet 703-06695

Left Latch
(Superseded to 703-06695-0637)

Variations

Cub Cadet 703-06695-0637

LATCH - BAG LEFT - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-06692

Backing Plate
(Superseded to 703-06692-0637)

Variations

Cub Cadet 703-06692-0637

PLATE - BACKING - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-06694

Right Latch
(Superseded to 703-06694-0637)

Variations

Cub Cadet 703-06694-0637

LATCH - BAG RIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 01003986

Bag Frame

$

$

Not available

5

Cub Cadet 703-06696

Handles
(Superseded to 703-06696-0637)

Variations

Cub Cadet 703-06696-0637

HANDLE - GRASS BAG - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 01003221

Cloth Bag

$

$

Not available

7

N/A

Struts

$

$

Not available

8

Cub Cadet 703-06693

Mounting Bracket
(Superseded to 703-06693-0637)

Variations

Cub Cadet 703-06693-0637

Mounting Bracket - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02005727

Chute Baffle

Variations

Cub Cadet 02005727-0637

BAFFLE - CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 01000944

Screw, Hex Cap, 1/4-20 x 1.00

Note: Handle Hardware

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 02005631

Internal Tooth Washers

Note: Handle Hardware

$

$

Not available

12

Cub Cadet 00012152

Nylock Nuts 1/4-20

Note: Handle Hardware

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 00030906

Pan Head Screws 10-32 x 5/8

Note: Latch Hardware

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00014608

Nylock Nuts 10-32
(Superseded to 712-05003)

Note: Latch Hardware

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet 00012171

Screw, Hex Cap, 3/8-16 x 1.00

Note: Chute Bracket to Backing Plate

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 01000723

Flat Washers 3/8
(Superseded to 736-3052)

Note: Chute Bracket to Backing Plate

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 00012173

Nylock Nuts 3/8-16
(Superseded to 712-04065)

Note: Chute Bracket to Backing Plate

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 00011444

Screw, Hex Cap, 3/8-16 x 1.25

Note: Chute Bracket to Mower

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 00012173

Nylock Nuts 3/8-16
(Superseded to 712-04065)

Note: Chute Bracket to Mower

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 00013092

Screw, Hex Cap, 5/16-18 x 1.00
(Superseded to 710-0376)

Note: Chute Baffle to Mower

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet 00012169

Flat Washers 5/16

Note: Chute Baffle to Mower

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 00012165

Nylock Nuts 5/16-18

Note: Chute Baffle to Mower

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02005630

Screw 1/4-20 x 5/8

Note: Struts

$

$

Not available

24

Cub Cadet 02005631

Washers

Note: Struts

$

$

Not available
