521E (1695702) - Snapper 21" Snow Thrower, 5hp Chute Rod Group Parts Diagram

21" Snow Thrower, 5hp

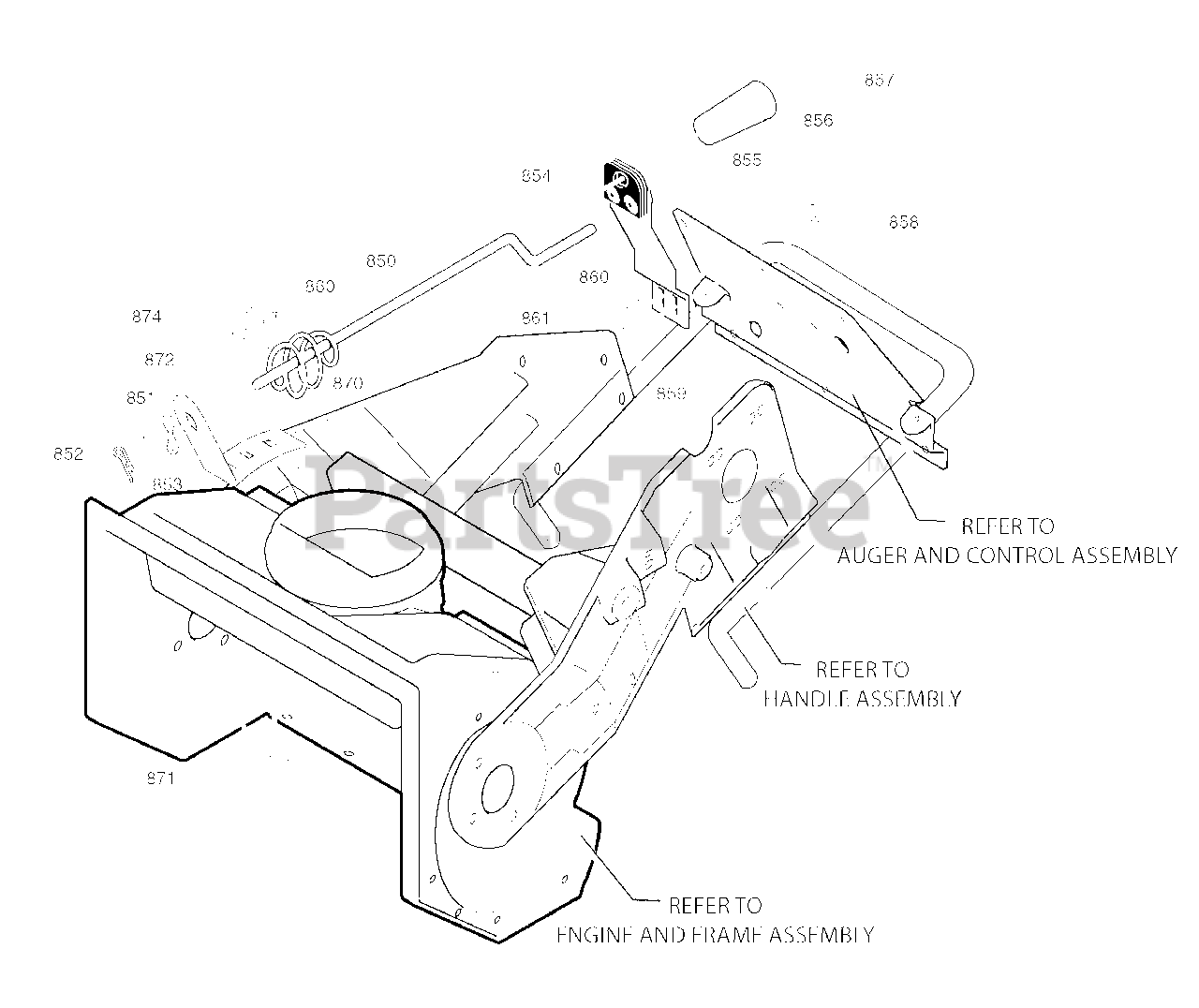

Chute Rod Group Parts Diagram

  • Title
850

Snapper 728594

ROD, CHUTE
(Superseded to 337941MA)

$

$

Not available

851

Snapper 725332

WASHER, Flat, 13/32 x 13/16

$

$

Not available

852

Snapper 1742051

PIN, Hair
(Superseded to 703800)

$3.99

$

In Stock, Qty 8

0

853

Snapper 723255

WASHER, Curved
(Superseded to 313431MA)

$4.99

$

In Stock, only 1 left!

0

854

Snapper 728588

CHUTE CRANK ASSEMBLY
(Superseded to 335264MA)

$

$

Not available

855

Snapper 725332

WASHER, Flat, 13/32 x 13/16

$

$

Not available

856

Snapper 724508

KNOB, Sleeve
(Superseded to 57082MA)

$7.99

$

Usually ships in 2-12 days

0

857

Snapper 723600

NUT, Push, 3/8

$

$

Currently unavailable

858

Snapper 727983

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 340715MA)

$5.49

$

Usually ships in 2-12 days

0

859

Snapper 725331

WASHER, Flat, 11/32 X 11/16
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

860

Snapper 725326

WASHER, Split Lock, 5/16 x 37/64
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

861

Snapper 728134

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

870

Snapper 1742103H

BRACKET, Chute Rotate
(Superseded to 1742103HYP)

$23.99

$

Usually ships in 2-12 days

0

871

Snapper 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Snapper 725331

WASHER, Flat, 11/32 X 11/16
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

874

Snapper 725320

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
