52161x89A - Yard King 52" Garden Tractor (1999) Front Axle Parts Diagram

52" Garden Tractor

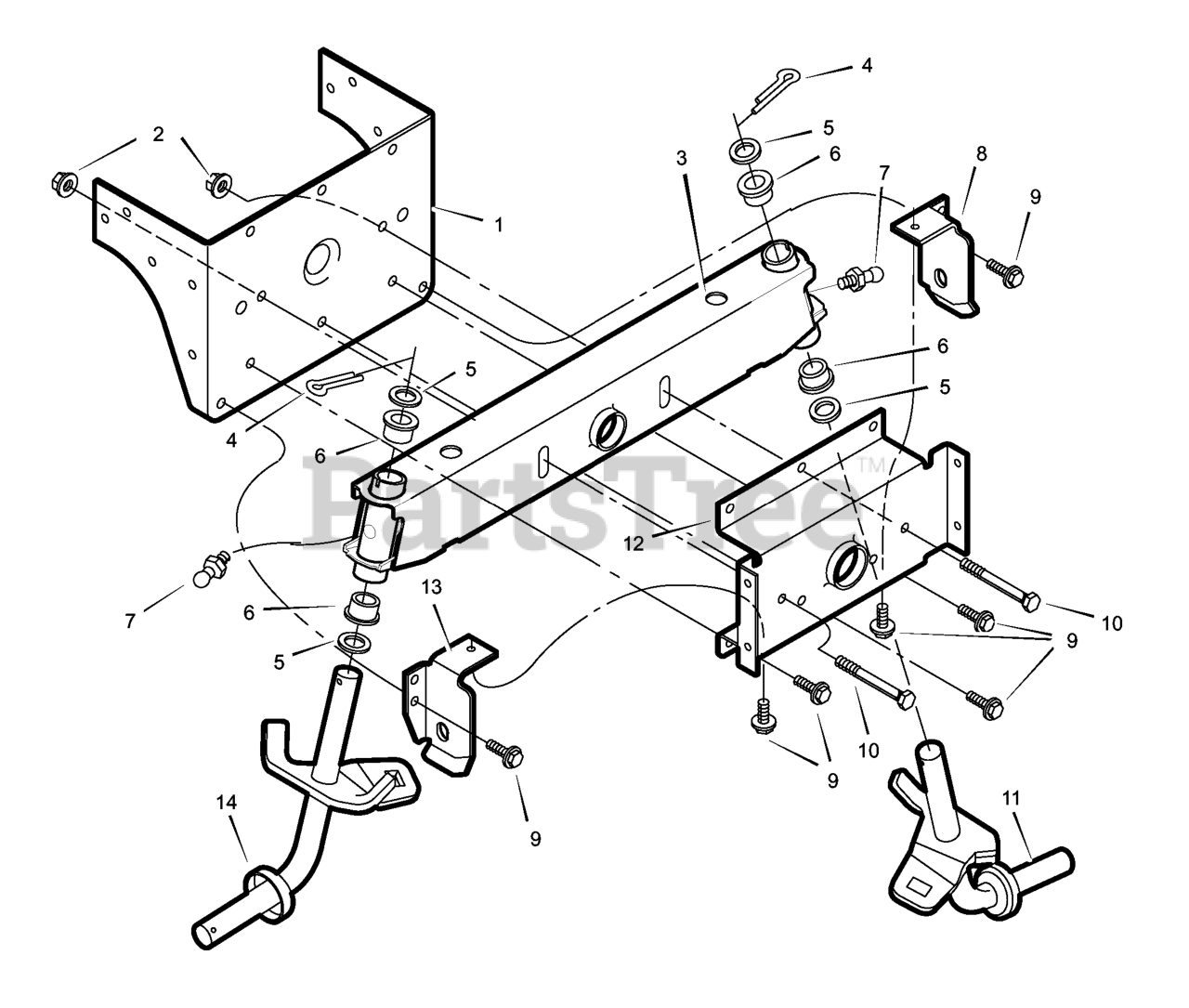

Front Axle Parts Diagram

  • Title
1

Murray 690067E700

Bracket, Rear Hanger

$

$

Not available

2

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

3

Murray 690210MA

Axle Assembly
(Superseded to 7601037MA)

$347.99

$

Usually ships in 2-12 days

0

4

Murray 030X49MA

Pin, Hair

$4.49

$

In Stock, Qty 11

0

5

$3.99

$

In Stock, only 1 left!

0

6

Murray 093058MA

Bearing, Spindle

$8.49

$

In Stock, Qty 6

0

7

Murray 092530MA

Fitting, Lub

$5.49

$

Usually ships in 2-12 days

0

8

Murray 690198E700

Hanger, Left Deck

$

$

Currently unavailable

9

$

$

Not available

10

$3.99

$

Usually ships in 2-12 days

0

11

Murray 690179E700

Spindle Assembly, Left

$

$

Currently unavailable

12

Murray 094007E700

Hanger, Axle

$

$

Currently unavailable

13

Murray 690199E700

Hanger, Right Deck

$

$

Currently unavailable

14

Murray 690178E700

Spindle Assembly, Right

$

$

Currently unavailable
