521613x89A - Yard King 52" Garden Tractor (2001) Mower Housing Parts Diagram

52" Garden Tractor

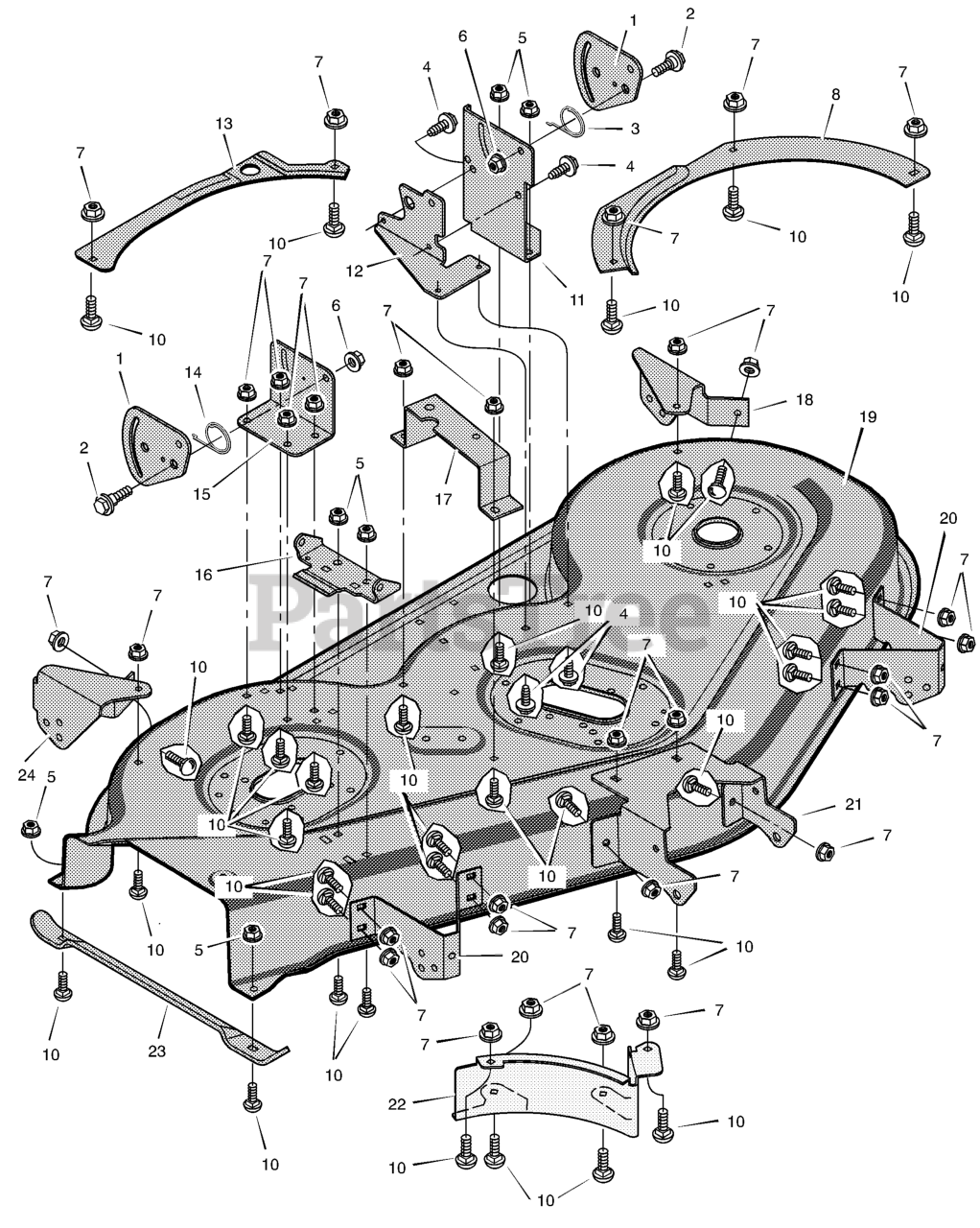

Mower Housing Parts Diagram

  • Title

1

Murray 690128E700

Plate, Suspension

$11.99

$

Usually ships in 2-12 days

0

2

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

3

Murray 166X43MA

Spring, Left Torsion

$4.99

$

In Stock, only 2 left!

0

4

Murray 26X249MA

Screw

$

$

Not available

5

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

6

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Murray 094118E700

Baffle, Left

$

$

Currently unavailable

10

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

11

Murray 690164E700

Bracket, Left Lifter

$

$

Currently unavailable

12

Murray 690078E700

Brace, Lifter

$

$

Currently unavailable

13

Murray 094117E700

Baffle, Bottom

$24.99

$

Usually ships in 2-12 days

0

14

Murray 166X42MA

Spring, Right Torsion

$4.99

$

In Stock, Qty 8

0

15

Murray 094694E700

Bracket, Right Lifter

$

$

Currently unavailable

16

Murray 092104E700

Bracket, Hinge

$

$

Currently unavailable

17

Murray 690118E700

Bracket, Bellcrank

$

$

Currently unavailable

18

Murray 094717E700

Bracket, Left Gage Wheel

$

$

Not available

19

Murray 094400E700

Housing, Blade

$

$

Currently unavailable

20

Murray 095180E700

Bracket, Front Gage Wheel

$

$

Currently unavailable

21

Murray 094693E700MA

Bracket, Front Deck
(Superseded to 7300802DYP)

$66.99

$

Usually ships in 2-12 days

0

22

Murray 690092E701

Baffle, Right

$54.99

$

Usually ships in 2-12 days

0

23

Murray 095176E701MA

Bracket, Chute Support

$9.99

$

Usually ships in 2-12 days

0

24

Murray 094716E700

Bracket, Rear Gage Wheel

$

$

Currently unavailable
