521613x71A - Murray 52" Garden Tractor (2001) Hood And Dash Parts Diagram

52" Garden Tractor

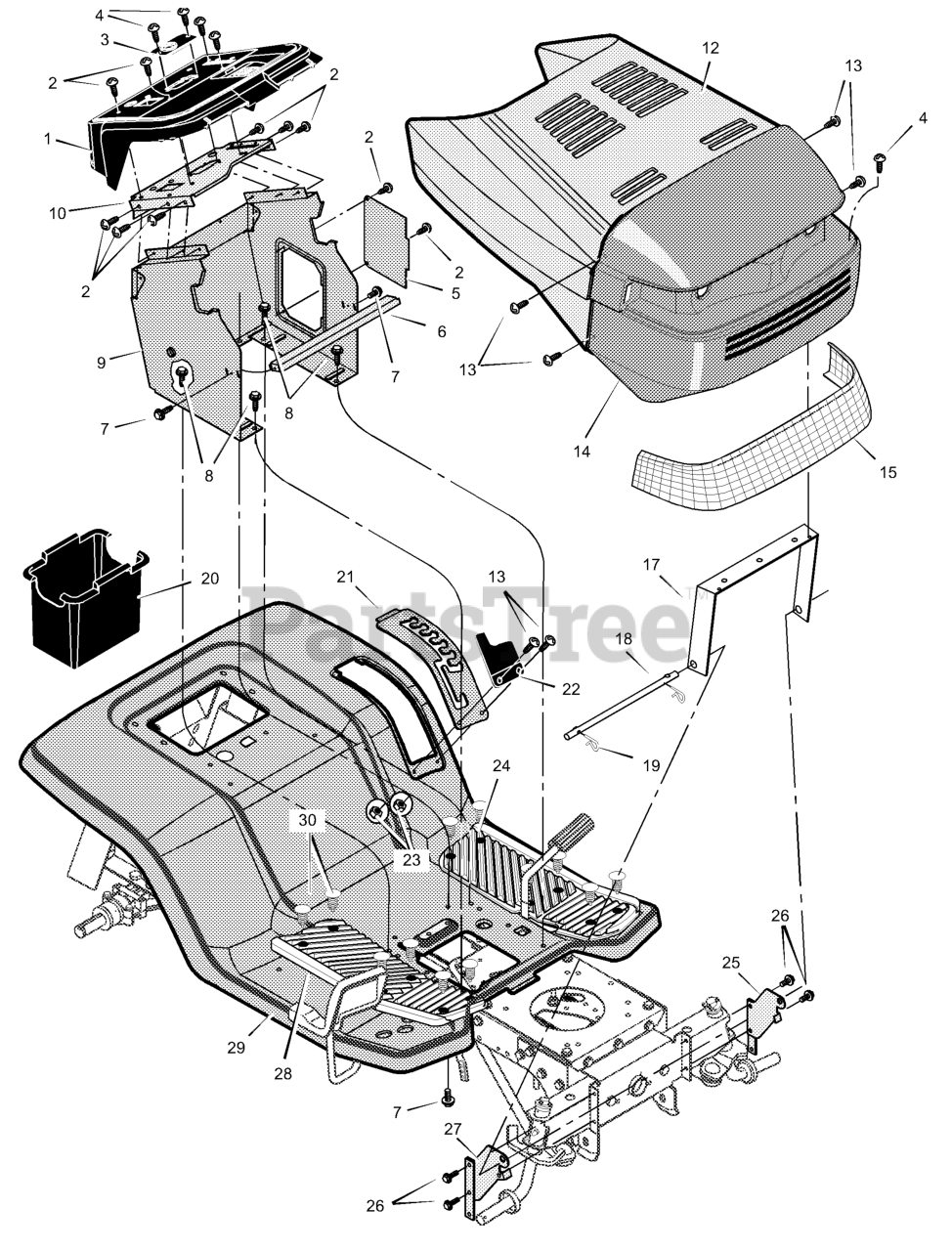

Hood And Dash Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 094219MA

Bearing, Upper Steering

$

$

Not available

4

$4.99

$

Usually ships in 2-12 days

0

5

Murray 093007E700

Panel, Side Access

$

$

Currently unavailable

6

Murray 095081E700

Channel, Support

$

$

Currently unavailable

7

$4.99

$

In Stock, only 1 left!

0

8

$

$

Not available

9

Murray 095082E700

Support, Dash

$

$

Currently unavailable

10

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

12

Murray 093215E700MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

13

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

14

Murray 093149MA

Grille

Note: (Includes Lens)

$253.99

$

Usually ships in 2-12 days

0

15

$95.99

$

Usually ships in 2-12 days

0

17

Murray 093190MA

Brace, Grille

$50.99

$

Usually ships in 2-12 days

0

18

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

19

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

20

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

21

Murray 094194E700

Plate, Lift Detent

$

$

Currently unavailable

22

$7.49

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 2-12 days

0

24

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

25

Murray 690547E700

Support, Left Grille

$

$

Currently unavailable

26

$

$

Not available

27

Murray 690546E700

Support, Right Grille

$

$

Currently unavailable

28

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

29

Murray 1001285E700

Deck, Seat

$

$

Currently unavailable

30

Murray 0193X1MA

Fastener

$3.99

$

In Stock, only 1 left!

0
