521613x189A - Yard King 52" Garden Tractor (2001) Mower Housing Suspension Parts Diagram

52" Garden Tractor

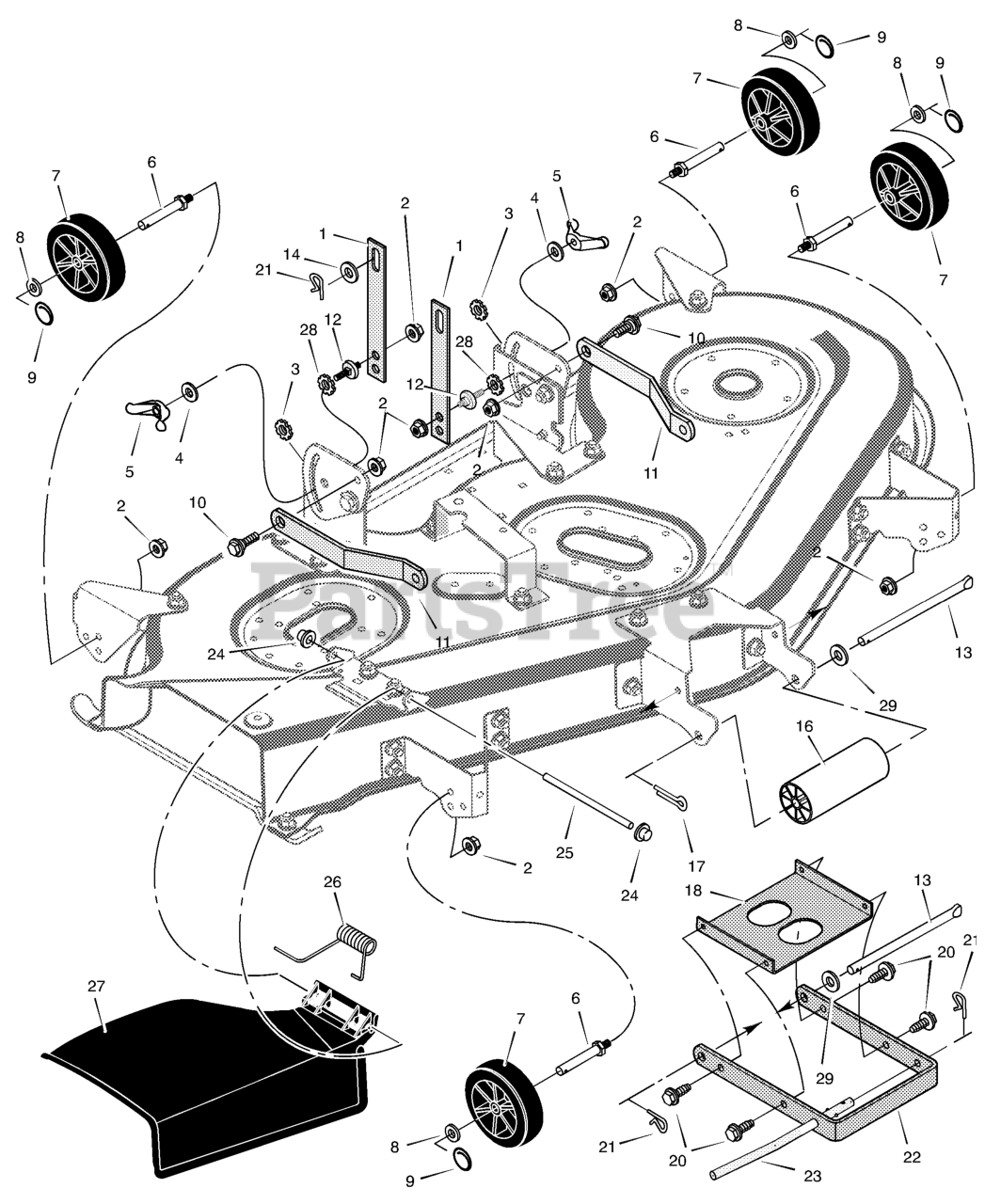

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 690550E700

Link, Lift

$

$

Currently unavailable

2

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 019X44MA

Washer

$4.99

$

Usually ships in 2-12 days

0

4

Murray 017X45MA

Washer

$

$

Not available

5

Murray 095004MA

Wingnut

$7.49

$

In Stock, only 2 left!

0

6

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

7

Murray 092683MA

Wheel, Gage

$15.99

$

In Stock, only 3 left!

0

8

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

9

Murray 031X11MA

Pin, Hair

$4.49

$

In Stock, only 2 left!

0

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E700

Bracket, Rear Suspension

$

$

Currently unavailable

12

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

13

Murray 094996MA

Rod, Deck Suspension

$

$

Not available

14

Murray 017X91 Z

Washer

$

$

Currently unavailable

16

Murray 1001252MA

Roller

$20.99

$

Usually ships in 2-12 days

0

17

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

18

Murray 094604E700

Stiffener

$

$

Currently unavailable

20

Murray 26X249MA

Screw

$

$

Not available

21

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 690539E700

Hanger, Front

$

$

Currently unavailable

23

Murray 094158ZMA

Rod, Front Hanger

$28.99

$

Usually ships in 2-12 days

0

24

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

25

Murray 092159ZMA

Rod, Deflector

$

$

Not available

26

Murray 166X34MA

Spring

$9.49

$

Usually ships in 2-12 days

0

27

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

28

Murray 019X44MA

Lockwasher

$4.99

$

Usually ships in 2-12 days

0

29

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0
