5216 G (1691559) - Simplicity Lawn Tractor, 16hp Decal Group (All Tractors & Mowers) Parts Diagram

Lawn Tractor, 16hp

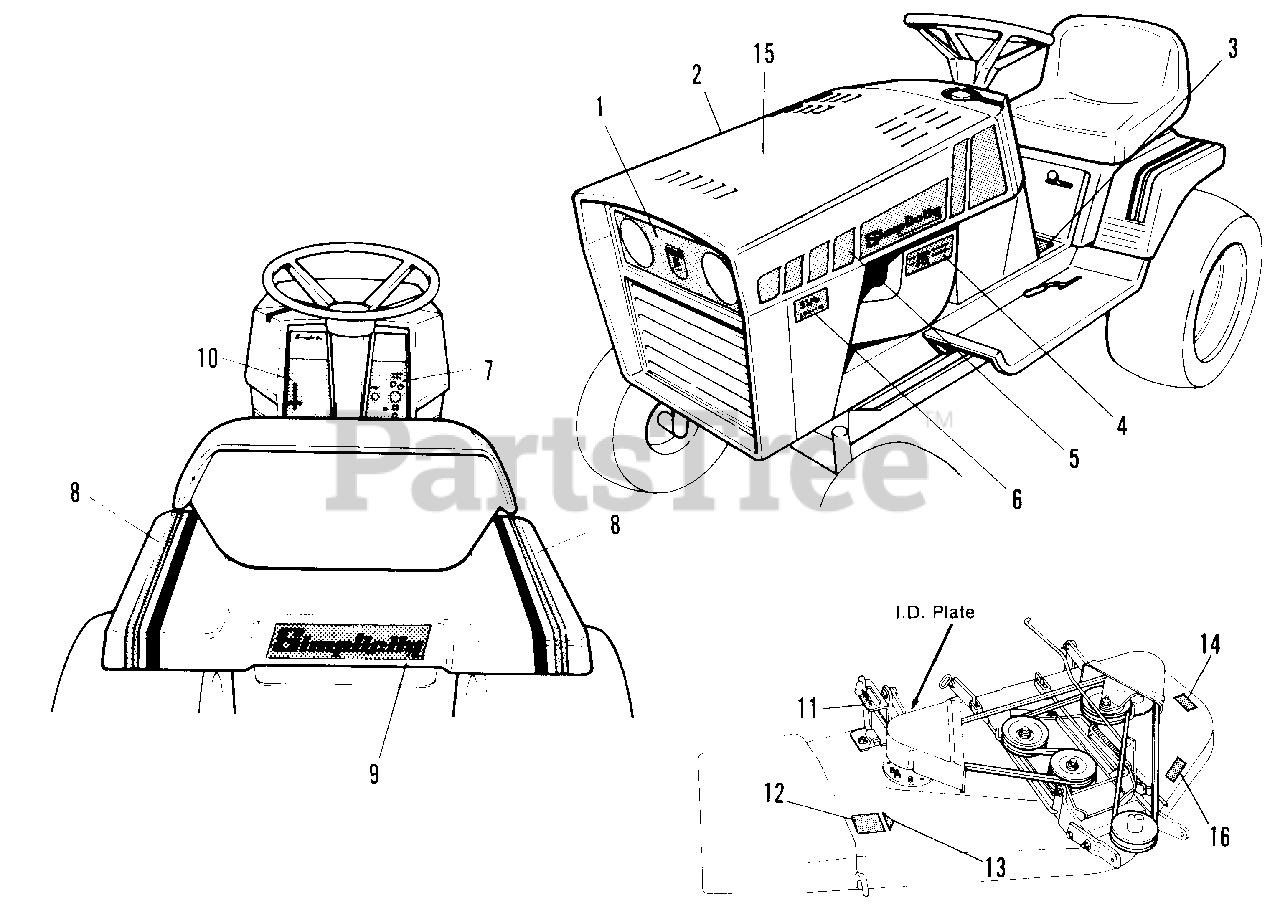

Decal Group (All Tractors & Mowers) Parts Diagram

  • Title

1

Simplicity 1669367

DECAL, Grille

$

$

Not available

2

Simplicity 1668195

DECAL, Hood, R.H.

$

$

Not available

3

Simplicity 1708277

DECAL, Shift

$

$

Not available

4

Simplicity 1669577

DECAL, Engine (1691558)

$

$

Not available

4

Simplicity 1679143

DECAL, Engine (1691431)

$

$

Not available

5

Simplicity 1668196

DECAL, Hood, L H.

$

$

Not available

6

Simplicity 1673486

DECAL, 5216 Special (1691558)

$

$

Not available

6

Simplicity 1678635

DECAL, 5212.5 Special (1691431)

$

$

Not available

6

Simplicity 1700122

DECAL, 5212 Special (1691554)

$

$

Not available

7

Simplicity 1669368

DECAL, Dash, R H. (1691431, 1691558)

$

$

Not available

7

Simplicity 1676975

DECAL, Dash, R.H. (1691554)

$

$

Not available

8

Simplicity 1668201

DECAL, Seat Deck

$

$

Not available

9

Simplicity 1722551SM

DECAL, Simplicity

$11.99

$

In Stock, Qty 14

0

10

Simplicity 1668200

DECAL, Dash, L.H. (1691431, 1691558)

$

$

Not available

10

Simplicity 1677050

DECAL, Dash, L.H. (1691554)

$

$

Not available

11

Simplicity 1656855

DECAL, Mower Height

$

$

Not available

12

Simplicity 1704277SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

13

DECAL, OPEI

$

$

Not available

14

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

15

Simplicity 1676979

DECAL, Drive Belts (Inside Hood)

$

$

Not available

16

Simplicity 1702114

DECAL, Caution

$

$

Not available
