5216 (1690925) - Simplicity Lawn Tractor, 16hp Steering & Front Wheel Group - For 1690915, 1690950, 1690934 & 1690958 Parts Diagram

Lawn Tractor, 16hp

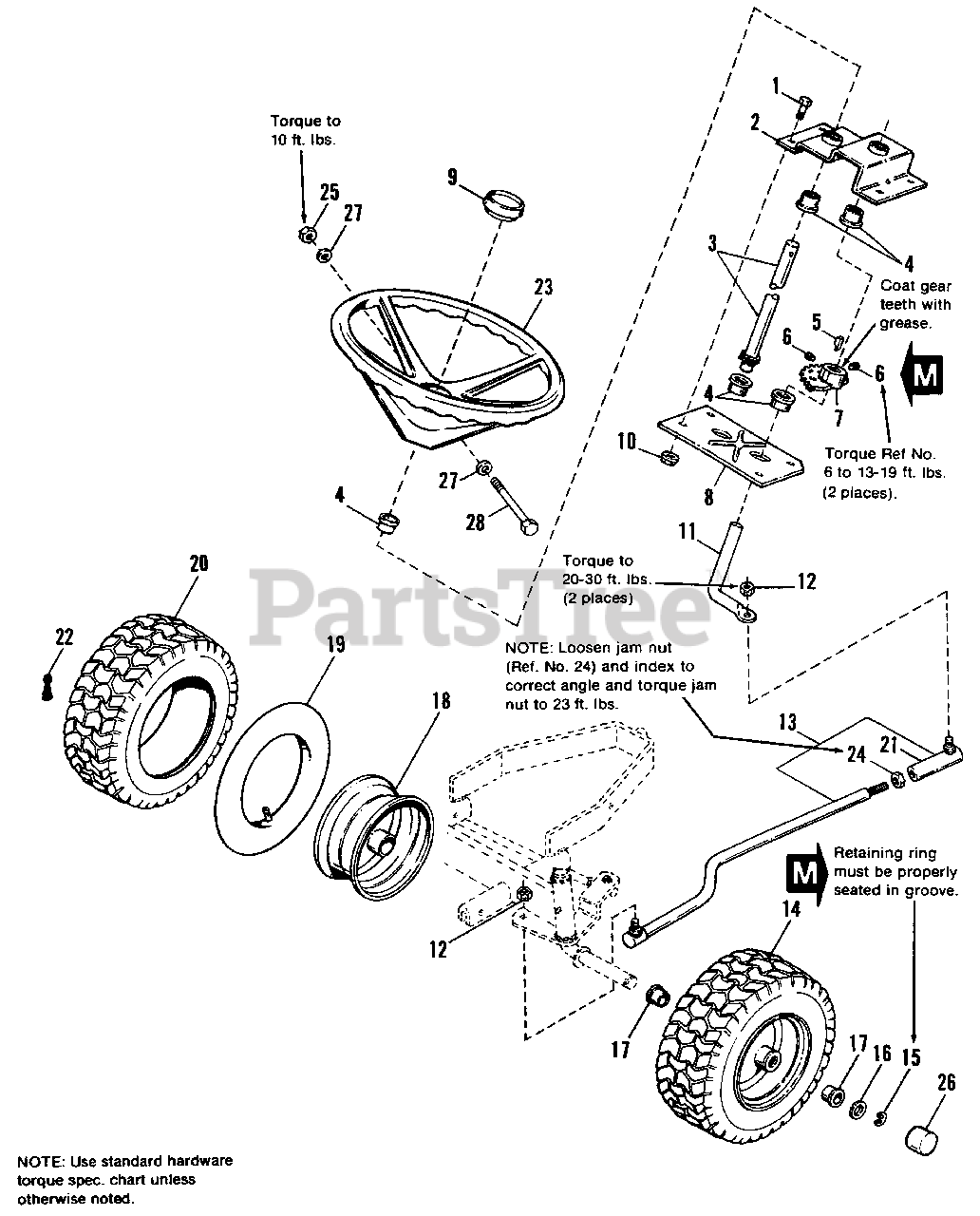

Steering & Front Wheel Group - For 1690915, 1690950, 1690934 & 1690958 Parts Diagram

  • Title

1

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

2

Simplicity 1667513SM

PLATE, Steering
(Superseded to 1667513ASM)

$102.99

$

Usually ships in 2-12 days

0

3

Simplicity 1701266SM

SHAFT ASSY., Steering

$108.99

$

Usually ships in 2-12 days

0

4

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1667622SM

KEY

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

7

Simplicity 1675388SM

GEAR, Steering
(Superseded to 1685168SM)

$

$

Not available

8

Simplicity 1652743SM

PLATE, Base, Steering
(Superseded to 1652743ASM)

$

$

Not available

9

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

10

Simplicity 2835048

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

11

Simplicity 1674076SM

ROD, Steering

$

$

Not available

12

Simplicity 1668927SM

NUT, Special, 3/8-24

$6.49

$

In Stock, only 1 left!

0

13

Simplicity 1686668SM

LINK ASSY., Drag (Incl. Ref. No. 21 & 24)

$

$

Not available

14

Simplicity 1709856SM

WHEEL & TIRE ASSY.

$137.99

$

Usually ships in 2-12 days

0

15

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 18

0

16

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 2156316SM

BEARING

$11.99

$

In Stock, only 4 left!

0

18

Simplicity 1715032

WHEEL ASSY. 15 x 6.00-6
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

19

Simplicity 1664090SM

TUBE, 4.10/3.50-6 (For Service Only)

$26.99

$

In Stock, only 3 left!

0

20

Simplicity 1713166SM

TIRE, (Carlisle)

$113.99

$

Usually ships in 2-12 days

0

21

Simplicity 1669567SM

BALL JOINT ASSY.

$15.99

$

In Stock, Qty 10

0

22

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

23

Simplicity 1686651SM

WHEEL, Steering, Bolt Mounted

$190.99

$

In Stock, only 1 left!

0

24

Simplicity 2818403

NUT, Jam 3/8-24

$

$

Not available

25

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

26

Simplicity 1673333SM

HUB CAP, Threaded

$5.49

$

In Stock, Qty 5

0

27

Simplicity 2819326

WASHER, Plain

$

$

Not available

28

Simplicity 2825690

BOLT, 5/16-18 x 3-1/2

$

$

Not available
