5216 (1690810) - Simplicity Lawn Tractor, 16hp Front Axle Group Parts Diagram

Lawn Tractor, 16hp

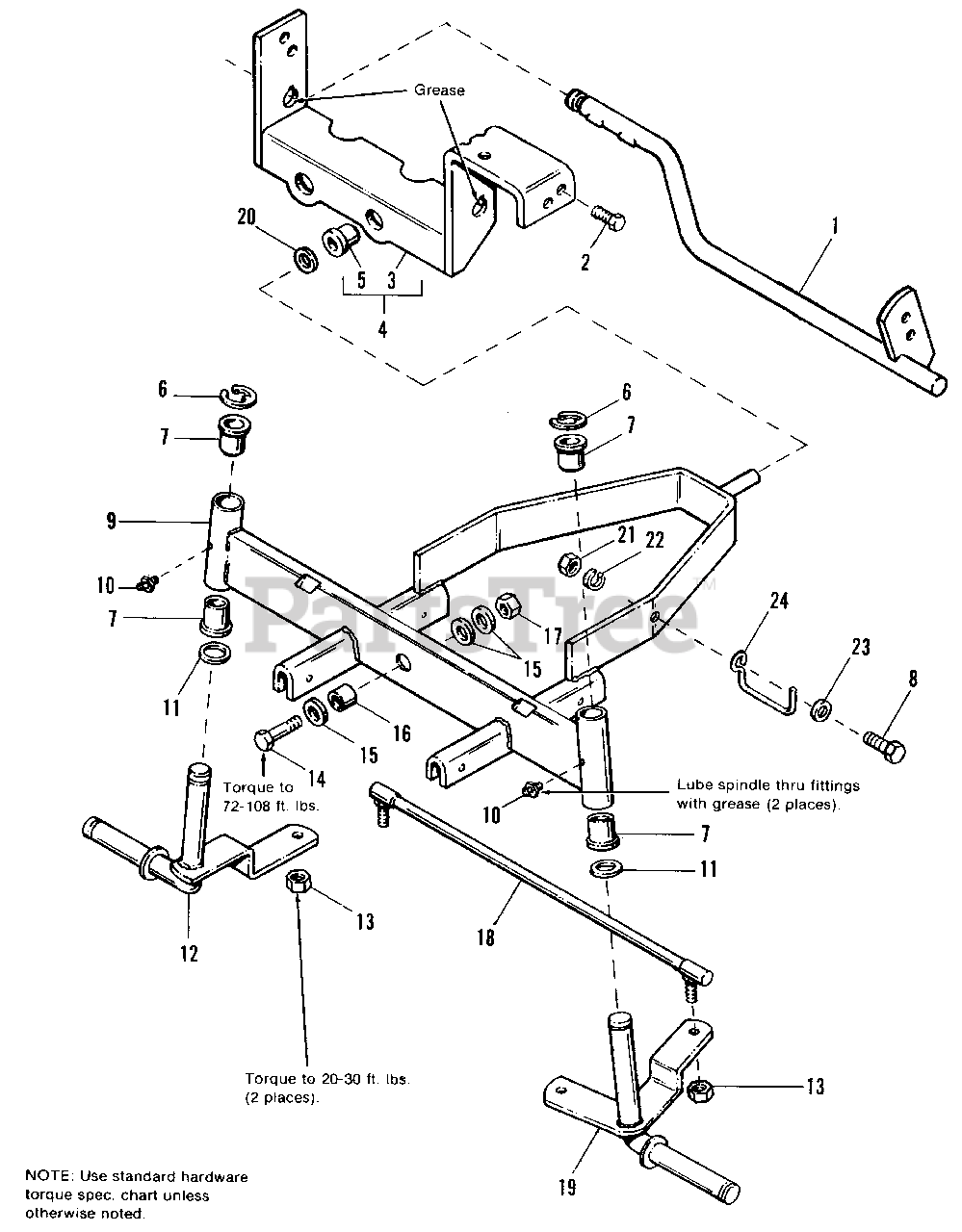

Front Axle Group Parts Diagram

  • Title

1

Simplicity 1672012

LEVER ASSY., Brake

$

$

Not available

2

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

SUPPORT ASSY., Axle, Rear (See Ref. No. 4)

$

$

Not available

4

Simplicity 1665601

SUPPORT ASSY., Rear

Note: Ref. No. 4 Includes Ref. Nos. 3 & 5.

$

$

Not available

5

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 2827794SM

"E" RING, Ext. 3/4

$3.49

$

In Stock, Qty 17

0

7

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

9

Simplicity 1671548

AXLE ASSY., Front

Note: Ref. No. 9 Includes Ref. Nos. 7, 14, 16 & 17.

$

$

Not available

10

Simplicity 2814687

FITTING, Lube, 1/4-20

$

$

Not available

11

Simplicity 2108181

WASHER

$

$

Not available

12

Simplicity 1668072SM

SPINDLE ASSY., R.H.

$

$

Not available

13

Simplicity 1668927SM

LOCKNUT, Hex, 3/8-24, Gr. 8

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 2821525

CAPSCREW, Hex, 1/2-13 x 1-3/4, Gr. 8

$

$

Not available

15

Simplicity 1926192SM

WASHER, 9/16

$19.99

$

Usually ships in 2-12 days

0

16

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 2830648

LOCKNUT, Hex, 1/2-13

$

$

Not available

18

Simplicity 1667247SM

TIE ROD ASSY.

$108.99

$

In Stock, only 1 left!

0

19

Simplicity 1668071SM

SPINDLE ASSY., L.H.
(Superseded to 1668071ASM)

$85.99

$

Usually ships in 2-12 days

0

20

Simplicity 2819387

WASHER, 5/8

$

$

Not available

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2817642

WASHER, 5/16

$

$

Not available

24

Simplicity 1668147SM

GUIDE, Drag Link

$

$

Not available
