5216 (1690810) - Simplicity Lawn Tractor, 16hp Frame Group Parts Diagram

Lawn Tractor, 16hp

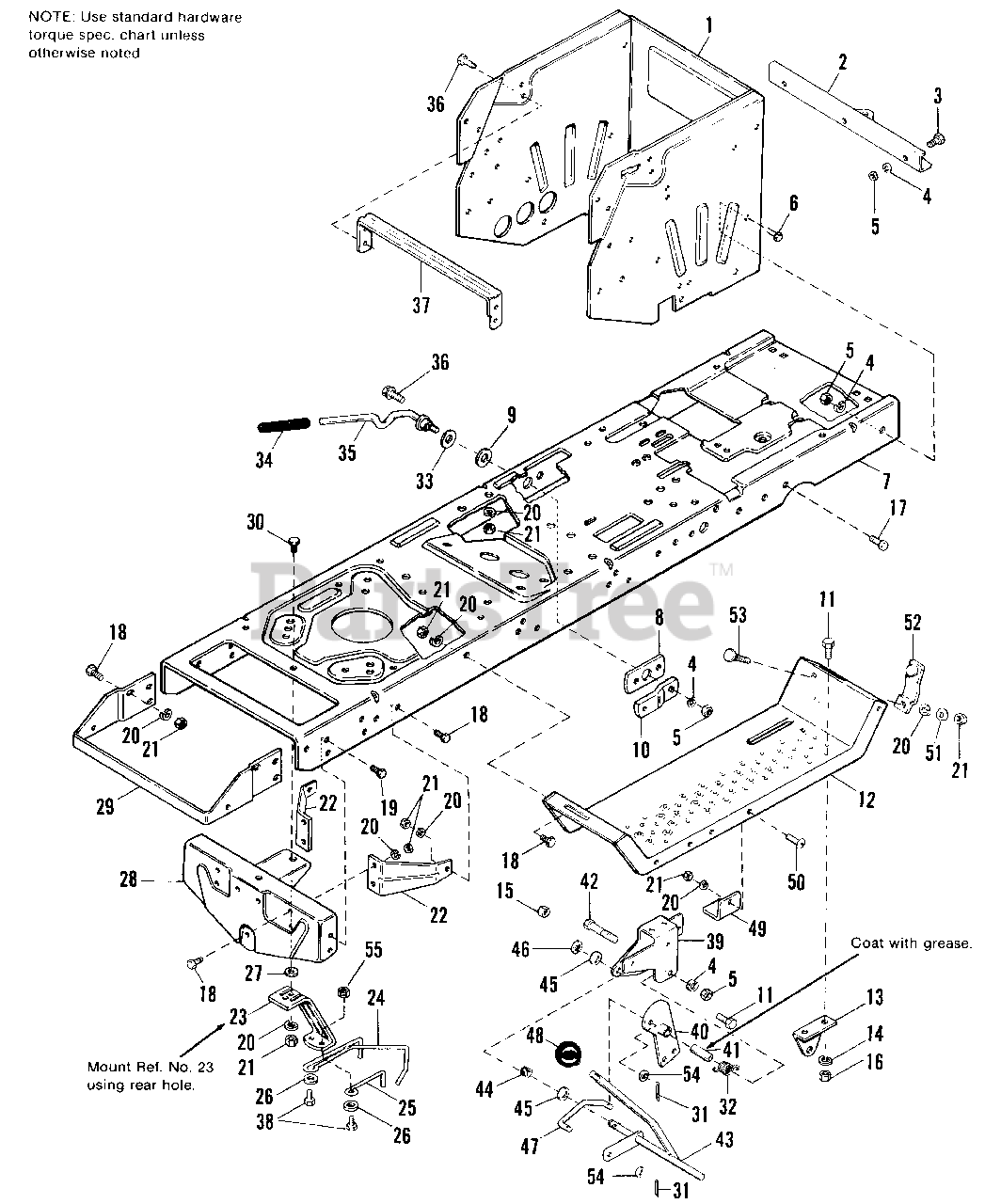

Frame Group Parts Diagram

  • Title

1

Simplicity 1672237

SUPPORT, Axle, Wrapper

$

$

Not available

2

Simplicity 1655591SM

BAR, Draw
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 921974

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

7

Simplicity 1672542

FRAME

$

$

Not available

8

Simplicity 1656754SM

BAR, Support
(Superseded to 1656754ASM)

$7.49

$

In Stock, only 1 left!

0

9

Simplicity 2156116

WASHER

$

$

Not available

10

Simplicity 1656755SM

ARM, Support
(Superseded to 1656755ASM)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

12

Simplicity 1669278

FOOTREST

$

$

Not available

13

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

14

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 2830641

NUT, Flange, Whizlock, 1/4-20

$

$

Not available

16

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2821965

CAPSCREW, 3/8-16 x 3/4

$

$

Not available

18

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

19

Simplicity 1664847SM

SCREW, Hex Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

23

Simplicity 1665803SM

SUPPORT

$

$

Not available

24

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

25

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

26

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

27

Simplicity 2819381

WASHER, Plain, 5/16

$

$

Not available

28

Simplicity 1663855

SUPPORT, Axle

$

$

Not available

29

Simplicity 1666954

SUPPORT, Hood

$

$

Not available

30

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

31

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

32

Simplicity 1669339

SPRING

$

$

Not available

33

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1686647SM

HANDLE, Lift

$198.99

$

Usually ships in 2-12 days

0

36

Simplicity 2824856

SCREW, Hex Washer Hd., Taptite, 5/16-18 x 1/2

$

$

Not available

37

Simplicity 1654707

BRACE, Seat

$

$

Not available

38

Simplicity 1922127SM

CAPSCREW, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

39

Simplicity 1669113

BRACKET, P.T.O.

$

$

Not available

40

Simplicity 1669108

ARM ASSY., P.T.O. Rod

$

$

Not available

41

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

42

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2/1-4

$

$

Not available

43

Simplicity 1669112

HANDLE ASSY., P.T.O.

$

$

Not available

44

Simplicity 1669197

BUSHING

$

$

Not available

45

Simplicity 2153072

WASHER on P.T.O. Link

$

$

Not available

46

Simplicity 2158399SM

RING, Snap
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

47

Simplicity 1669104

LINK, P.T.O.

$

$

Not available

48

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

49

Simplicity 1669168

UP-STOP, Mower

$

$

Not available

50

Simplicity 2818249

SCREW, Truss Hd., Slotted, 5/16-18 x 3/4

$

$

Not available

51

Simplicity 2817642

WASHER

$

$

Not available

52

Simplicity 1672075

LATCH ASSY.

$

$

Not available

53

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

54

Simplicity 2824940

WASHER

$

$

Not available

55

Simplicity 2823362

LOCKNUT, 5/16-18

$

$

Not available
