52145 (RE 12E) - Lawn-Boy 30" Rear-Engine Riding Mower (SN: 900000001 - 999999999) (1989) Steering, Front Wheels And Axle Parts And Parts List Parts Diagram

30" Rear-Engine Riding Mower

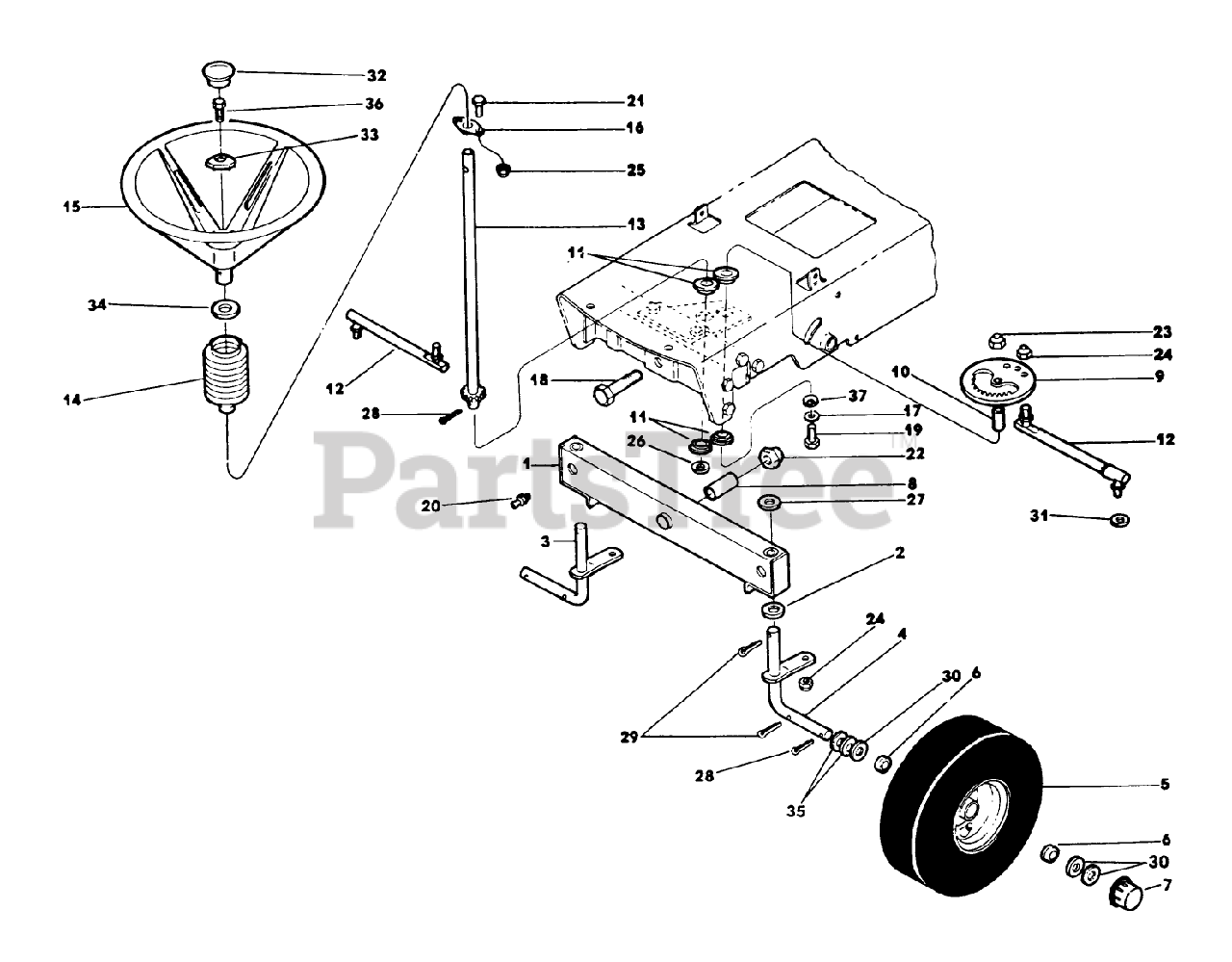

Steering, Front Wheels And Axle Parts And Parts List Parts Diagram

  • Title

1

Lawn-Boy 740572

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 700126

See Supercession: 702982
(Superseded to 702982)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$9.99

$

In Stock, Qty 5

0

3

Lawn-Boy 740564

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 740566

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 740508

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 701803

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 701803

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 701803

DISCONTINUED

Note: Parts not shown.

$

$

Not available

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: Parts not shown.

$6.99

$

In Stock, Qty 14

0

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: Parts shown with bullet included with assembly above.

$6.99

$

In Stock, Qty 14

0

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 14

0

Lawn-Boy 740506

See Supercession: 740505
(Superseded to 740505)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$113.26

$

In Stock, only 1 left!

0

Lawn-Boy 740506

See Supercession: 740505
(Superseded to 740505)

Note: Parts shown with bullet included with assembly above.

$113.26

$

In Stock, only 1 left!

0

Lawn-Boy 740506

See Supercession: 740505
(Superseded to 740505)

Note: Parts not shown.

$113.26

$

In Stock, only 1 left!

0

6

Lawn-Boy 700997

See Supercession: 110513
(Superseded to 110513)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$21.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 700781

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 701824

SPACER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 701821

See Supercession: 701821A1
(Superseded to 701821A1)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$187.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 701816

SPACER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 701813

BEARING - FLANGE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 740568

See Supercession: 744473
(Superseded to 744473)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$248.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 740560

STEERING SHAFT WA

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$686.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 701276

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 701286

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 740166

BEARING AY.

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$13.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 700050

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 701819

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

19

Lawn-Boy 701818

See Supercession: 3211-9
(Superseded to 3211-9)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 700041

See Supercession: 302-5
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 10

0

22

Lawn-Boy 700687

NUT-HEX CONE LOK

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 700149

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 701817

HEX NUT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 146375

NUT-LOCK, CONE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 700809

SPACER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 700683

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 701582

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 700682

See Supercession: 3272-12
(Superseded to 3272-12)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 17

0

30

Lawn-Boy 700815

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 701827

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 701281

CAP

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701297

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

34

Lawn-Boy 701282

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 700812

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 701820

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available
