52145 A (RE 12E) - Lawn-Boy 30" Rear-Engine Riding Mower (SN: K00000001 - K99999999) (1991) Lift And Mower Drive Parts List Models: 52144a 52145a Parts Diagram

30" Rear-Engine Riding Mower

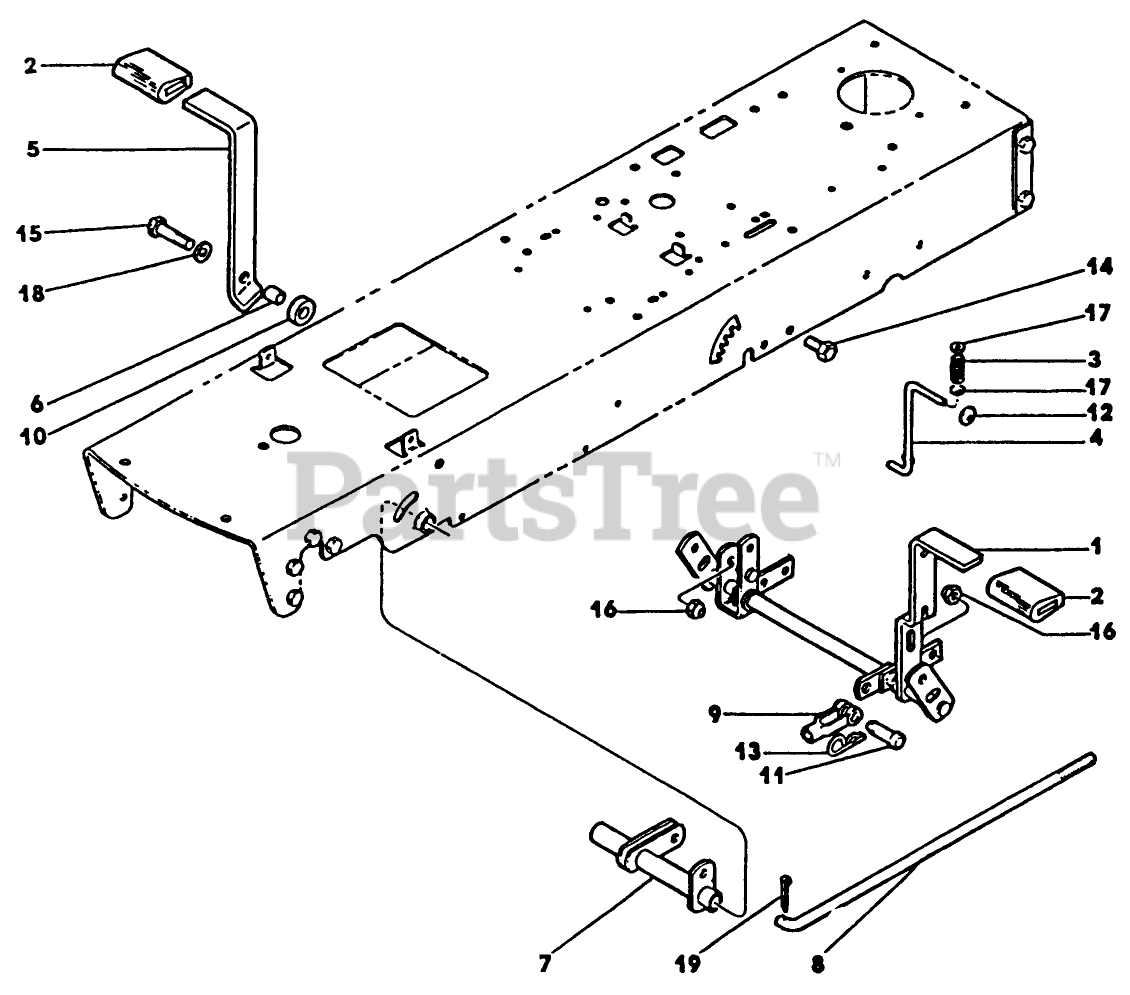

Lift And Mower Drive Parts List Models: 52144a 52145a Parts Diagram

  • Title

1

Lawn-Boy 740431

DISCONTINUED
(Superseded to 740430)

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 701967

GRIP

Note: NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 701606

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 701618

DISCONTINUED
(Superseded to 710515)

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 709911

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 701604

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 740426

CROSS SHAFT WA*B

Note: NOTE: Replacement parts may not always be available in matching colors.

$239.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 701617

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 701611

See Supercession: 100-7338
(Superseded to 100-7338)

Note: NOTE: Replacement parts may not always be available in matching colors.

$60.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 701609

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 700799

PIN CLEVIS

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 701607

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 146428

PIN - SPRING CLIP

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 146208

See Supercession: 323-4
(Superseded to 323-4)

Note: NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 146504

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 700032

NUT-LOCKING

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 700324

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 146304

WASHER

Note: NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 701598

See Supercession: 3272-7
(Superseded to 3272-7)

Note: NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 14

0
