52138 (LT 12) - Lawn-Boy Lawn Tractor (SN: 800000001 - 899999999) (1988) 12 H.p. Electrical, Engine And Gas Tank Parts List Model 52138 Parts Diagram

Lawn Tractor

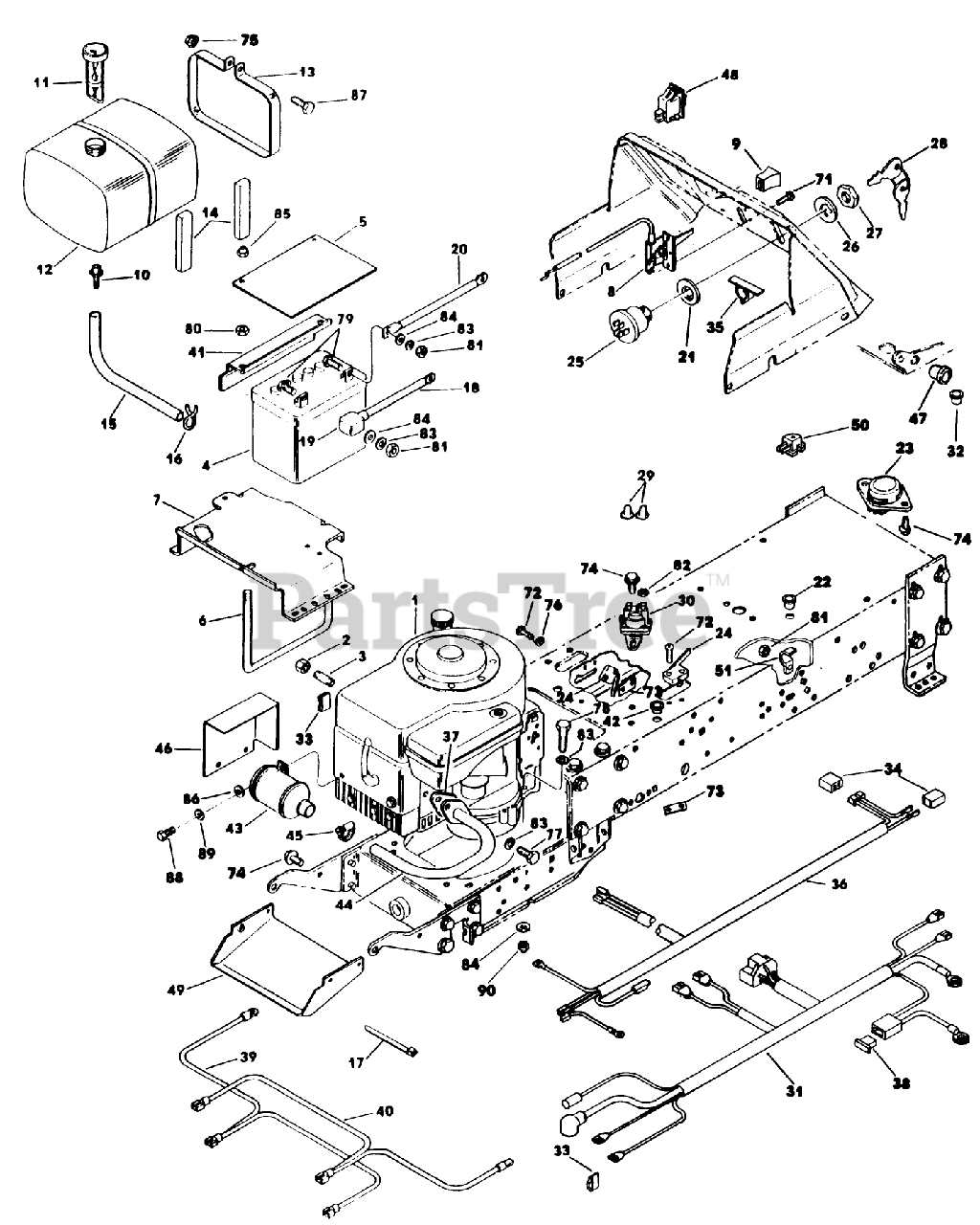

12 H.p. Electrical, Engine And Gas Tank Parts List Model 52138 Parts Diagram

  • Title

1

Engine 12 H.P. BS Model #281707 Type #0130-01

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 27547

DISCONTINUED
(Superseded to 701140)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 237625

DISCONTINUED
(Superseded to 701143)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 243651

DISCONTINUED
(Superseded to 740252)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 234642

See Supercession: 740205
(Superseded to 740205)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 231237

DISCONTINUED
(Superseded to 700946)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 231184

See Supercession: 701137
(Superseded to 701137)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 245559

DISCONTINUED
(Superseded to 740759)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 245555

See Supercession: 700966
(Superseded to 700966)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$29.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 12189

See Supercession: 701135
(Superseded to 701135)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 234264

See Supercession: 740256
(Superseded to 740256)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 231139

DISCONTINUED
(Superseded to 740255)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 233203

See Supercession: 700967
(Superseded to 700967)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 234402

DISCONTINUED
(Superseded to 701136)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 234866

See Supercession: 700765
(Superseded to 700765)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 16486

See Supercession: 700322
(Superseded to 700322)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 207232

See Supercession: 147198
(Superseded to 147198)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 218595

See Supercession: 740203
(Superseded to 740203)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$45.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 36606

See Supercession: 700932
(Superseded to 700932)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 36688

See Supercession: 740165
(Superseded to 740165)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 6296

See Supercession: 700042
(Superseded to 700042)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 245527

DISCONTINUED
(Superseded to 700800)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 243033

See Supercession: 740274
(Superseded to 740274)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$134.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 234494

See Supercession: 740171
(Superseded to 740171)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 36457

See Supercession: 99-8595
(Superseded to 99-8595)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$33.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 28554

See Supercession: 9201604
(Superseded to 9201604)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, only 3 left!

0

27

Lawn-Boy 28555

See Supercession: 700168
(Superseded to 700168)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 12981

See Supercession: 1-603511
(Superseded to 1-603511)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 242522

DISCONTINUED
(Superseded to 700753)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 212655

See Supercession: 740207
(Superseded to 740207)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$34.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 245761

DISCONTINUED
(Superseded to 744415)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 36399

See Supercession: 701288
(Superseded to 701288)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 12824

See Supercession: 700798
(Superseded to 700798)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 243738

DISCONTINUED
(Superseded to 740211)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 228756

See Supercession: 147229
(Superseded to 147229)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 246034

DISCONTINUED
(Superseded to 740182)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 243241

See Supercession: 701144
(Superseded to 701144)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$9.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 236879

DISCONTINUED
(Superseded to 702030)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 32084

See Supercession: 741619
(Superseded to 741619)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 32083

See Supercession: 741620
(Superseded to 741620)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 213515

See Supercession: 741045
(Superseded to 741045)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 234019

Snap Bushing

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

43

Lawn-Boy 243232

See Supercession: 740261
(Superseded to 740261)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 243233

DISCONTINUED
(Superseded to 740262)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 2891

See Supercession: 701115
(Superseded to 701115)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 233220

See Supercession: 700984
(Superseded to 700984)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 207525

DISCONTINUED
(Superseded to 701287)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 212651

See Supercession: 740209
(Superseded to 740209)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 213482

See Supercession: 700983
(Superseded to 700983)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 245957

See Supercession: 740275
(Superseded to 740275)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$20.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 245383

DISCONTINUED
(Superseded to 701516)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 237314

See Supercession: 701293
(Superseded to 701293)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

72

Lawn-Boy 238837

DISCONTINUED

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

73

Lawn-Boy 238836

See Supercession: 147664
(Superseded to 147664)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.18

$

In Stock, only 1 left!

0

74

Lawn-Boy 245648

See Supercession: 701193
(Superseded to 701193)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

75

Lawn-Boy 213296

DISCONTINUED
(Superseded to 700791)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

76

Lawn-Boy 1037

See Supercession: 700429
(Superseded to 700429)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 70138

See Supercession: 146299
(Superseded to 146299)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

78

Lawn-Boy 70164

See Supercession: 146210
(Superseded to 146210)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

79

Lawn-Boy 70143

See Supercession: 146209
(Superseded to 146209)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

80

Lawn-Boy 70600

See Supercession: 146507
(Superseded to 146507)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

81

Lawn-Boy 70549

See Supercession: 146259
(Superseded to 146259)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

82

Lawn-Boy 70571

See Supercession: 700755
(Superseded to 700755)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

83

Lawn-Boy 70646

Lock Washer 5/16 Plated
(Superseded to 325-34)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 2 left!

0

84

Lawn-Boy 70685

See Supercession: 3256-23
(Superseded to 3256-23)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

85

Lawn-Boy 70628

See Supercession: 146375
(Superseded to 146375)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

86

Lawn-Boy 70699

See Supercession: 146251
(Superseded to 146251)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

87

Lawn-Boy 71174

See Supercession: 146309
(Superseded to 146309)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

88

Lawn-Boy 70093

See Supercession: 700138
(Superseded to 700138)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

89

Lawn-Boy 70643

See Supercession: 3253-3
(Superseded to 3253-3)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

90

Lawn-Boy 70629

See Supercession: 146501
(Superseded to 146501)

Note: All assemblies taht list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 3 left!

0
