5212.5 G (1691429) - Simplicity Lawn Tractor, 12.5hp Frame Group Parts Diagram

Lawn Tractor, 12.5hp

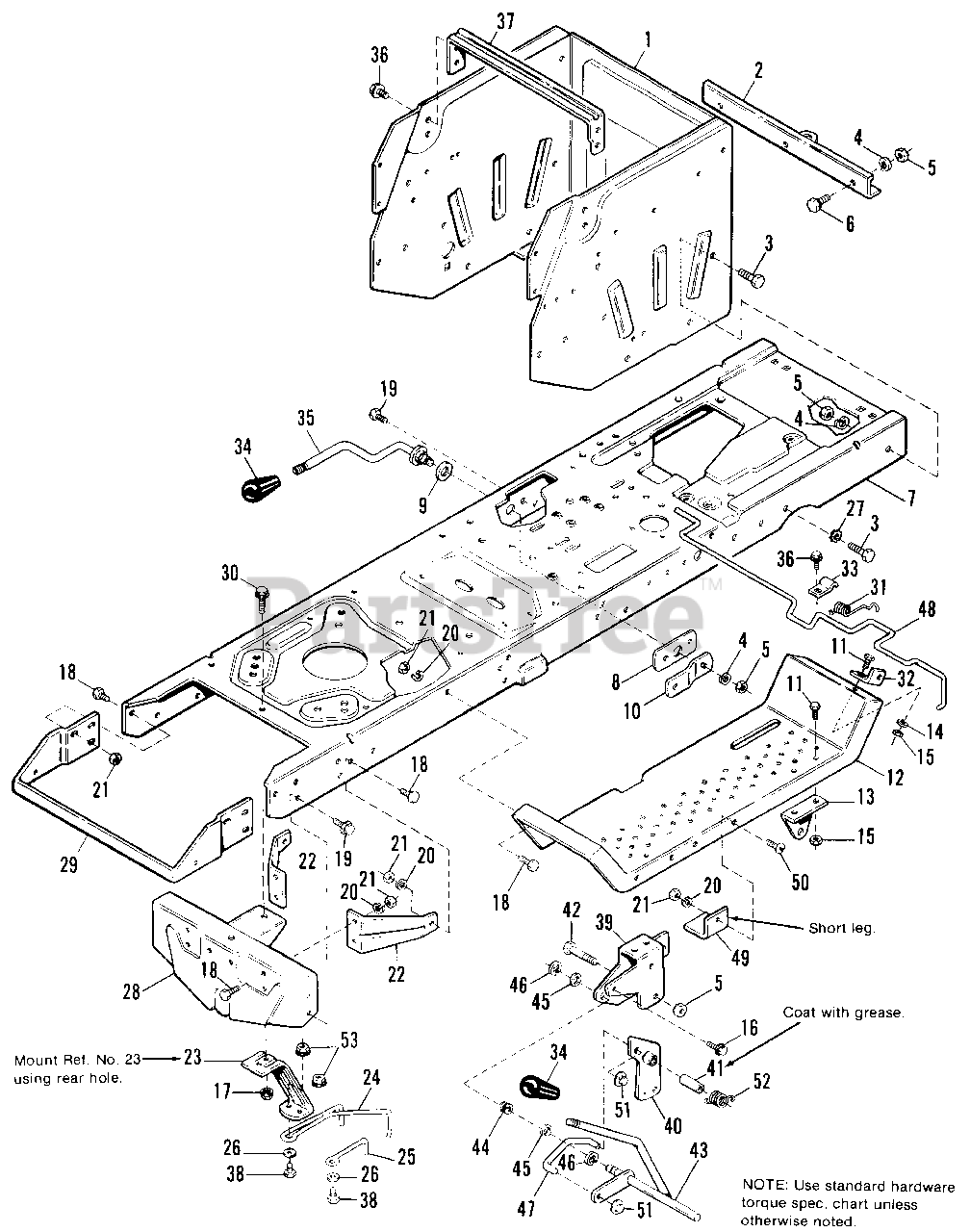

Frame Group Parts Diagram

  • Title

1

Simplicity 1702395

SUPPORT, Axle, Wrapper

$

$

Not available

2

Simplicity 1655591SM

BAR, Draw
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921210SM

CAPSCREW Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1679987

FRAME

$

$

Not available

8

Simplicity 1656754SM

BAR, Support
(Superseded to 1656754ASM)

$7.49

$

In Stock, only 1 left!

0

9

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

10

Simplicity 1656755SM

ARM, Support
(Superseded to 1656755ASM)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921959SM

CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

12

Simplicity 1679938

FOOTREST

$

$

Not available

13

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

14

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 1916622SM

NUT, Hex, Full 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 1927557SM

NUT, Flange, Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 1664847SM

SCREW, Hex, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

23

Simplicity 1665803SM

SUPPORT

$

$

Not available

24

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

25

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

26

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1920427SM

LOCKWASHER, Ext. Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1663855

SUPPORT, Axle

$

$

Not available

29

Simplicity 1666954

SUPPORT, Hood

$

$

Not available

30

Simplicity 1930595SM

SCREW, Hex Flange Hd., 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

31

Simplicity 1701314

SPRING, Torsion

$

$

Not available

32

Simplicity 1700670

BRACKET, Seat Latch

$

$

Not available

33

Simplicity 1678388

CLIP

$

$

Not available

34

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

35

Simplicity 1686647SM

HANDLE, Lift

$198.99

$

Usually ships in 2-12 days

0

36

Simplicity 1924856SM

SCREW, Hex, Wash. Hd., Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

37

Simplicity 1654707

BRACE, Seat

$

$

Not available

38

Simplicity 1923325SM

CAPSCREW, Taptite, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

39

Simplicity 1700677

BRACKET, P.T.O.

$

$

Not available

40

Simplicity 1701431

ARM ASSY, P.T.O. Rod

$

$

Not available

41

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

42

Simplicity 1922130SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

43

Simplicity 1702437

HANDLE ASSY, P T.O.

$

$

Not available

44

Simplicity 1669197

BUSHING

$

$

Not available

45

Simplicity 1960206SM

WASHER

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 2158399SM

RING, Snap
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

47

Simplicity 1701434

LINK, P.T.O.

$

$

Not available

48

Simplicity 1701268

ROD, Latch, Seat

$

$

Not available

49

Simplicity 1669168

UP-STOP, Mower

$

$

Not available

50

Simplicity 1918249SM

SCREW, Truss Hd., Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

51

Simplicity 1960093SM

PAL NUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

52

Simplicity 1669339

SPRING

$

$

Not available

53

Simplicity 1935048SM

NUT, Lock, Hex, Fl., 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
