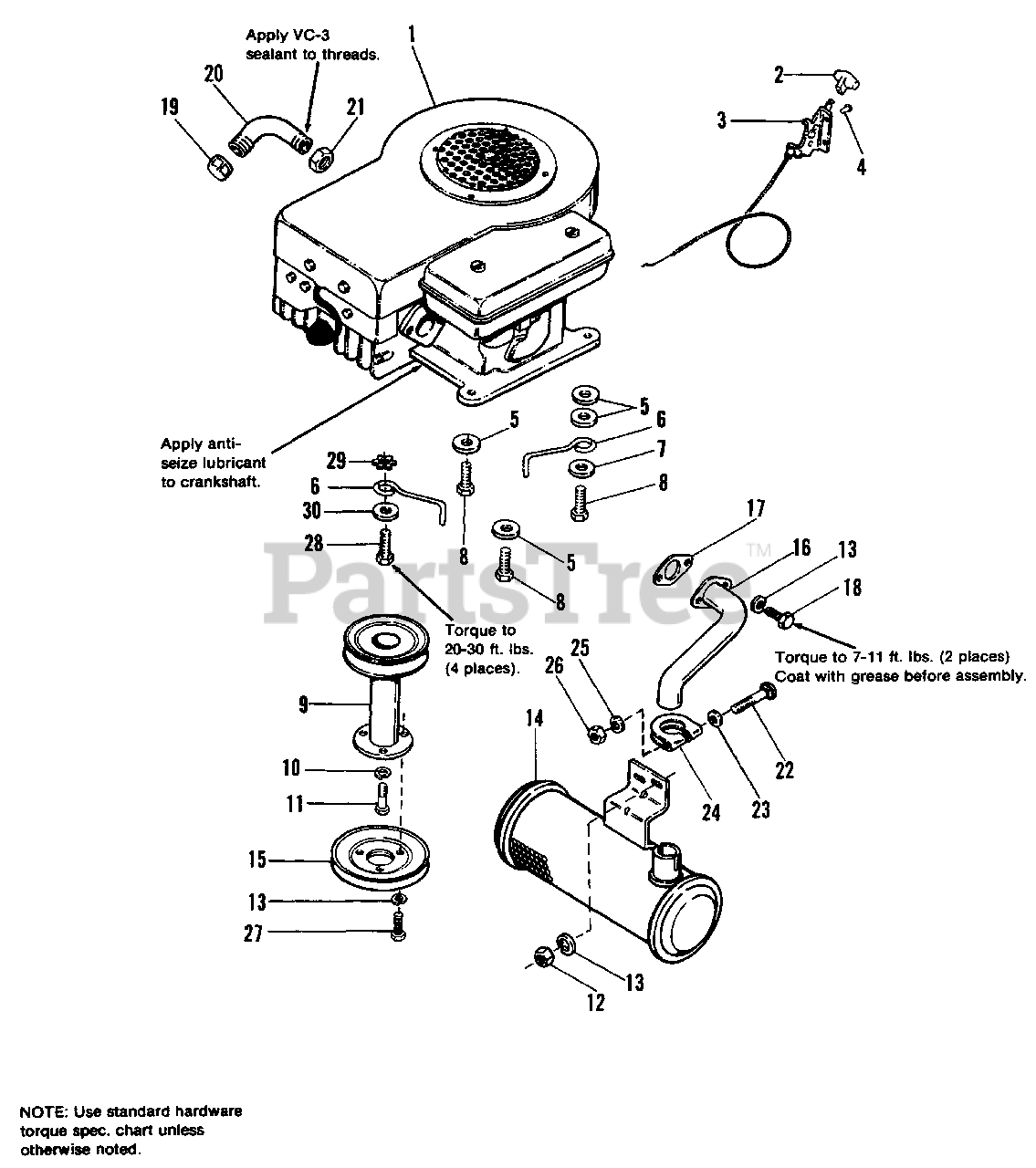

5212 (1691326) - Simplicity Lawn Tractor, 12hp Engine Group Parts Diagram

Lawn Tractor, 12hp

Engine Group Parts Diagram

  • Title

1

ENGINE, 11 HP, Briggs & Stratton

$

$

Not available

ENGINE, 12 HP, Briggs & Stratton

$

$

Not available

2

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1687058SM

CONTROL ASSY., Throttle

$54.99

$

Usually ships in 2-12 days

0

4

Simplicity 2860241

RIVET, Pop, 1/4

$

$

Not available

5

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

6

Simplicity 1674558SM

STOP, Belt

$104.99

$

Usually ships in 2-12 days

0

7

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1669749SM

PULLEY ASSY., Engine

$262.99

$

Usually ships in 2-12 days

0

10

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1928038SM

CAPSCREW, Hex, 7/16-20 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1669143SM

MUFFLER

$

$

Not available

15

Snapper 1669752SM

PULLEY

$

$

Not available

16

Simplicity 1669146

PIPE, Exhaust

$

$

Not available

17

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 1921332SM

CAPSREW. Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 1667346SM

CAP, Pipe

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 1658032SM

PIPE, Oil Drain (Incl. Ref. Nos. 19 & 21)

$21.99

$

Usually ships in 2-12 days

0

21

Simplicity 1932849SM

LOCKNUT, Conduit

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1931342SM

BOLT, Carriage 5/16-18 x 3-2//4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

24

Simplicity 1676183SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1917356SM

LOCKWASHER. 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1921677SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 Full Thrd.

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2 Zinc Plt.

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 2820427SM

LOCKWASHER, Ext., 3/8, Zinc Plt.
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 2822755

WASHER, 3/8 Zinc Plt.
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0
