5211 - Troy-Bilt Junior III Rear-Tine Tiller (SN: M0067999 - M0075089) TINES & WHEELS Parts Diagram

Junior III Rear-Tine Tiller

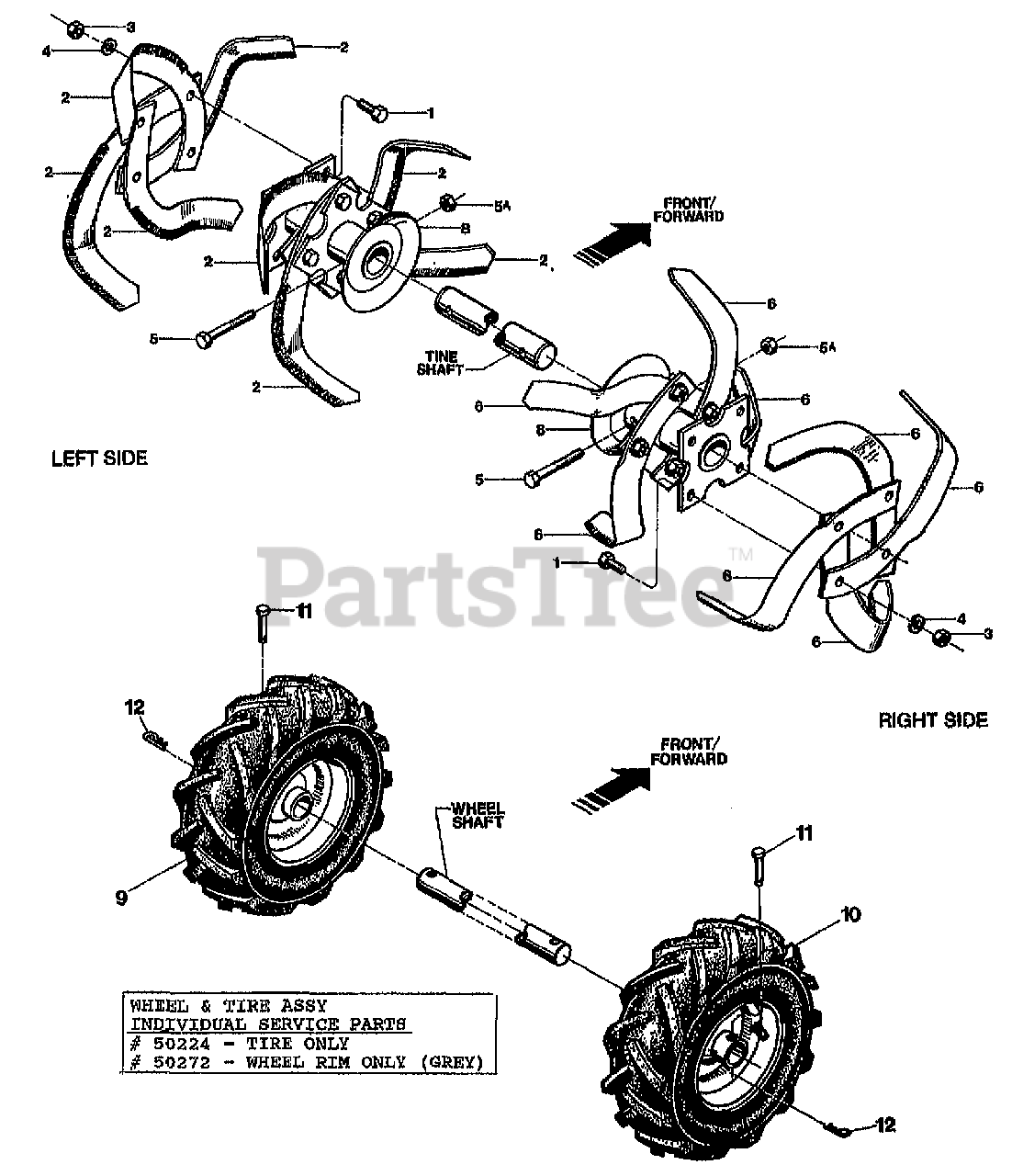

TINES & WHEELS Parts Diagram

  • Title
1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 50049-01

TINE-BOLO RIGHT
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9761

SCR-HH 3/8-16X2.00 G8

$

$

Currently unavailable

5A

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

6

Troy-Bilt 50049-02

TINE-BOLO LEFT
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 50219

HOLDER-TINE JUNIOR

$

$

Currently unavailable

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY
(Superseded to GW-1901)

$

$

Not available

9

Troy-Bilt 50223-1

ASSM-WHEEL&TIRE LT

$

$

Currently unavailable

10

Troy-Bilt 50223-2

ASSM-WHEEL&TIRE

$

$

Currently unavailable

Troy-Bilt 50224

TIRE 3.25-5

$

$

Currently unavailable

Troy-Bilt 50272

RIM-WHEEL 5" GRAY

$

$

Currently unavailable

11

Troy-Bilt 9098

PIN-CLEVIS

$

$

Currently unavailable

12

Troy-Bilt 9368

PIN-HITCH ZP

$

$

Currently unavailable
