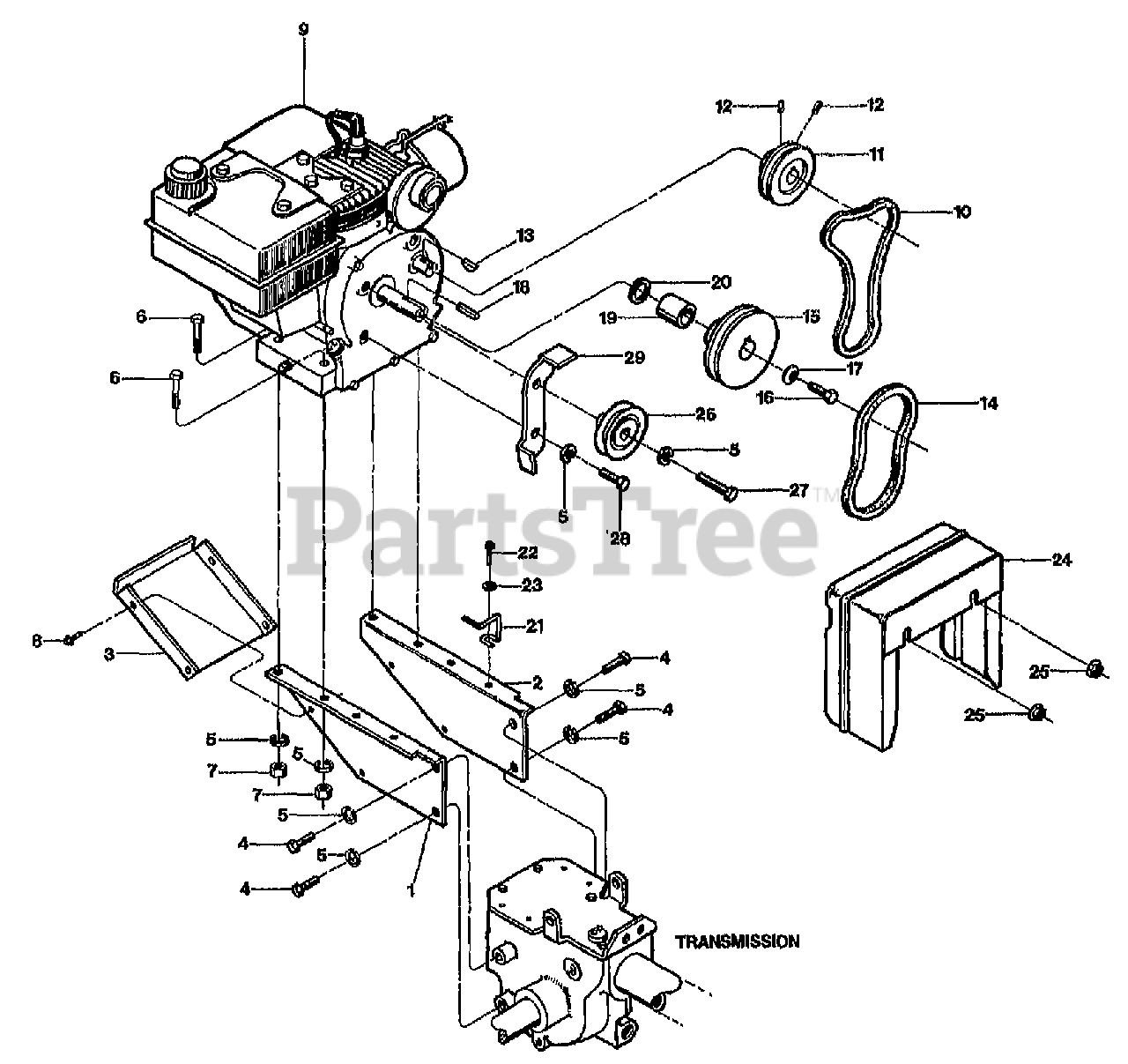

5211 - Troy-Bilt Junior III Rear-Tine Tiller (SN: M0067999 - M0075089) ENGINE, SUPPORTS, PULLEYS & BELTS Parts Diagram

Junior III Rear-Tine Tiller

ENGINE, SUPPORTS, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 (Brackets to Transmission)

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

7

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

8

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 ZP (Sems w/ permanent washer.)

$

$

Currently unavailable

9

0

Tecumseh, Model H35, Type 45593S

Note: 3 1/2HP Standard Recoil start w/ electronic solid state ignition.

$

$

Not available

9

0

Tecumseh, Model H35, Type 45606S

Note: 3 1/2HP Electric start w/ electronic solid state ignition.

$

$

Not available

10

Troy-Bilt 9095

BELT-V (Reverse; see V-Belt Set #11018)

$

$

Currently unavailable

11

Troy-Bilt 50210

PULLEY-REVERSE MACH (Engine driven, 1 groove, single belt.)

$

$

Currently unavailable

12

MTD 9561

SCR-SS 1/4-20 X .25 (Secures reverse engine pulley.)

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5 (Reverse pulley to reverse PTO shaft)

$

$

Not available

14

Troy-Bilt 20565

BELT-V GROOVE FWD SMFRAME (See V-Belt Set #11018)

$

$

Currently unavailable

15

MTD 20765

PULLEY-ENGINE MACH (Engine driven, 1 groove single belt)

$

$

Not available

16

Troy-Bilt 9549

SCR-HH 3/8-24X1.0 G5 ZP (Attaches forward pulley)

$

$

Currently unavailable

17

MTD 9925

WASHER-.994X.413X.145 (disc spring; concave surface faces forward pulley.)

$

$

Not available

18

Troy-Bilt 9301

KEY-.188 SQX1.0 (Forward pulley to forward PTO shaft)
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 9046

SPACER-.755X.937X1.375 (on forward PTO shaft between shim and forward pulley.)

$

$

Currently unavailable

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031 (On forward PTO shaft between Engine and spacer.)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

24

Troy-Bilt 50240

COVER - Shields belts and pulleys
(Superseded to 791-181482)

$4.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

26

Troy-Bilt 50190

IDLER-V-GROOVE (Reverse Idler (Internal bushing type)

$

$

Currently unavailable

27

Troy-Bilt 9708

BOLT-HH 5/16-24 X 1.5 ZP

$

$

Currently unavailable

28

Troy-Bilt 9563

SCR-HH 5/16-24X.50

$

$

Currently unavailable

29

Troy-Bilt 50198

GUIDE-BELT REV PNT

$

$

Currently unavailable

Troy-Bilt 11018

KIT-BELT P/J (Inc. #10 & #14)

$

$

Currently unavailable
