52100x92A - Murray 52" Garden Tractor (1999) Blade Drive Parts Diagram

52" Garden Tractor

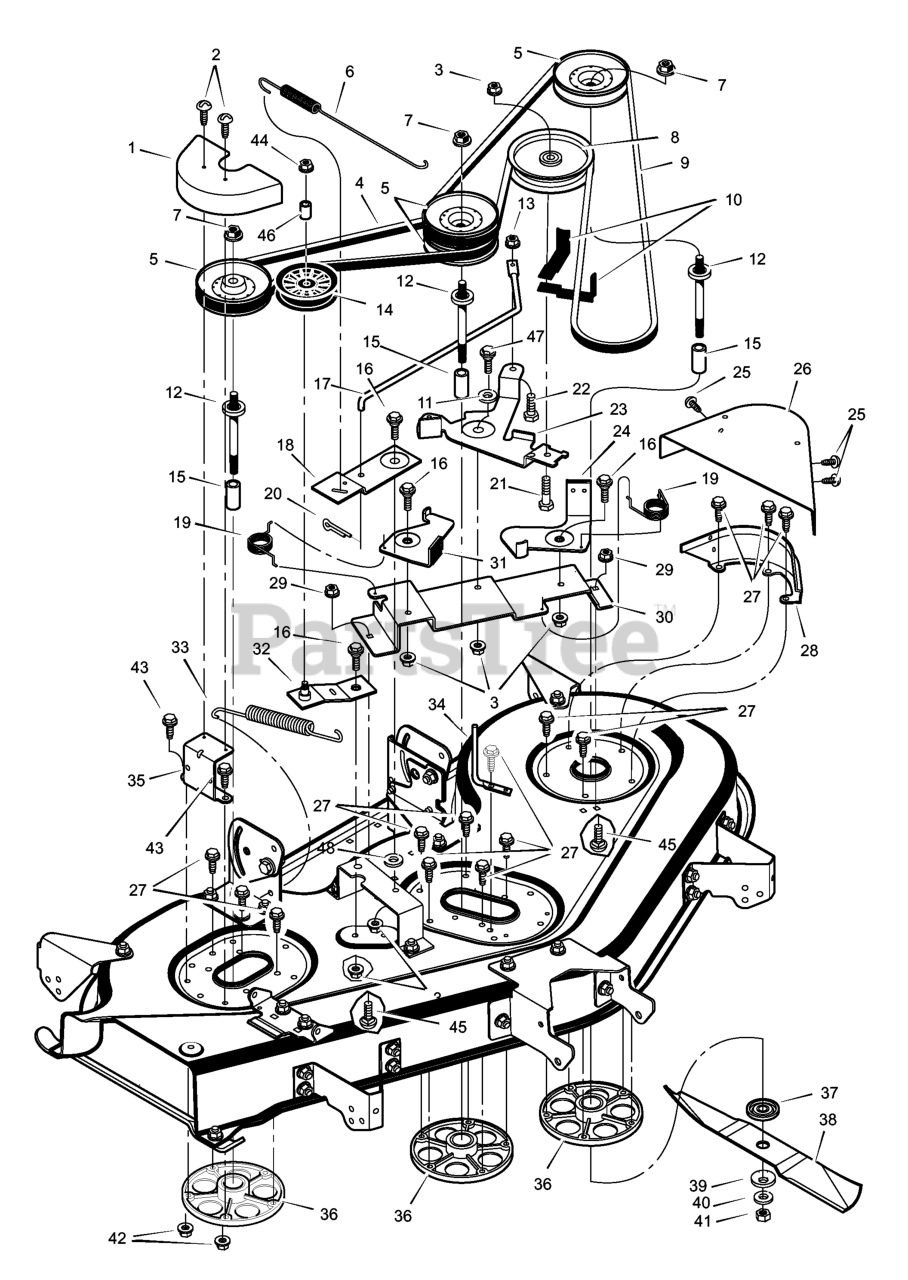

Blade Drive Parts Diagram

  • Title

1

Murray 094607E700

Cover, Right Pulley

$

$

Currently unavailable

2

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, Qty 11

0

3

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 037X92MA

Belt, Secondary

$27.99

$

In Stock, only 1 left!

0

5

Murray 690444MA

Pulley

$54.99

$

In Stock, only 1 left!

0

6

Murray 165X138MA

Spring, Extension

$15.99

$

In Stock, only 1 left!

0

7

Murray 15X121

Nut

$9.99

$

In Stock, Qty 7

0

8

Murray 095068MA

Pulley, Idler

$52.99

$

Usually ships in 2-12 days

0

9

Murray 037X93MA

Belt, Primary

$64.99

$

In Stock, only 1 left!

0

10

Murray 094809MA

Spring, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

11

Murray 17X149MA

Washer

$

$

Not available

12

Murray 094129

Mandrel

$21.99

$

In Stock, Qty 11

0

13

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

14

Murray 690549MA

Pulley, Backside Idler

$

$

Not available

15

Murray 094130MA

Spacer

$5.99

$

In Stock, Qty 12

0

16

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

17

Murray 690119 Z

Link

$

$

Currently unavailable

18

Murray 094808E700

Bellcrank

$

$

Currently unavailable

19

Murray 166X41MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

20

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

21

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

22

Murray 009X54MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

23

Murray 690068E700

Bracket, Idler

$

$

Currently unavailable

24

Murray 095074

Assembly, Brake Arm & Pad

$

$

Currently unavailable

25

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

26

Murray 094645E700

Cover, Left Pulley

$

$

Currently unavailable

27

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

28

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

29

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Murray 690414E700

Bracket, Brake

$

$

Currently unavailable

31

Murray 094698

Assembly, Brake Arm & Pad

$

$

Currently unavailable

32

Murray 094701

Assembly, Idler Arm

$

$

Currently unavailable

33

Murray 165X130MA

Spring, Extension

$7.99

$

Usually ships in 2-12 days

0

34

Murray 092424

Guide, Belt

$49.99

$

Usually ships in 2-12 days

0

35

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

36

Murray 092574

Housing, Jackshaft

$

$

Currently unavailable

37

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

38

Murray 094692E701MA

Blade
(Superseded to 721334AYP)

$27.99

$

Usually ships in 2-12 days

0

39

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

40

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

41

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 10

0

42

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

43

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

44

Murray 015X98MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

45

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

46

Murray 690369MA

Spacer

$

$

Not available

47

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

48

Murray 17X174MA

Washer
(Superseded to 17X174ZMA)

$6.49

$

Usually ships in 2-12 days

0
