5210 RS - Troy-Bilt 21" Snow Thrower (SN: B350100101 - B350299999) (Sears) MAIN ASSEMBLY Parts Diagram

21" Snow Thrower

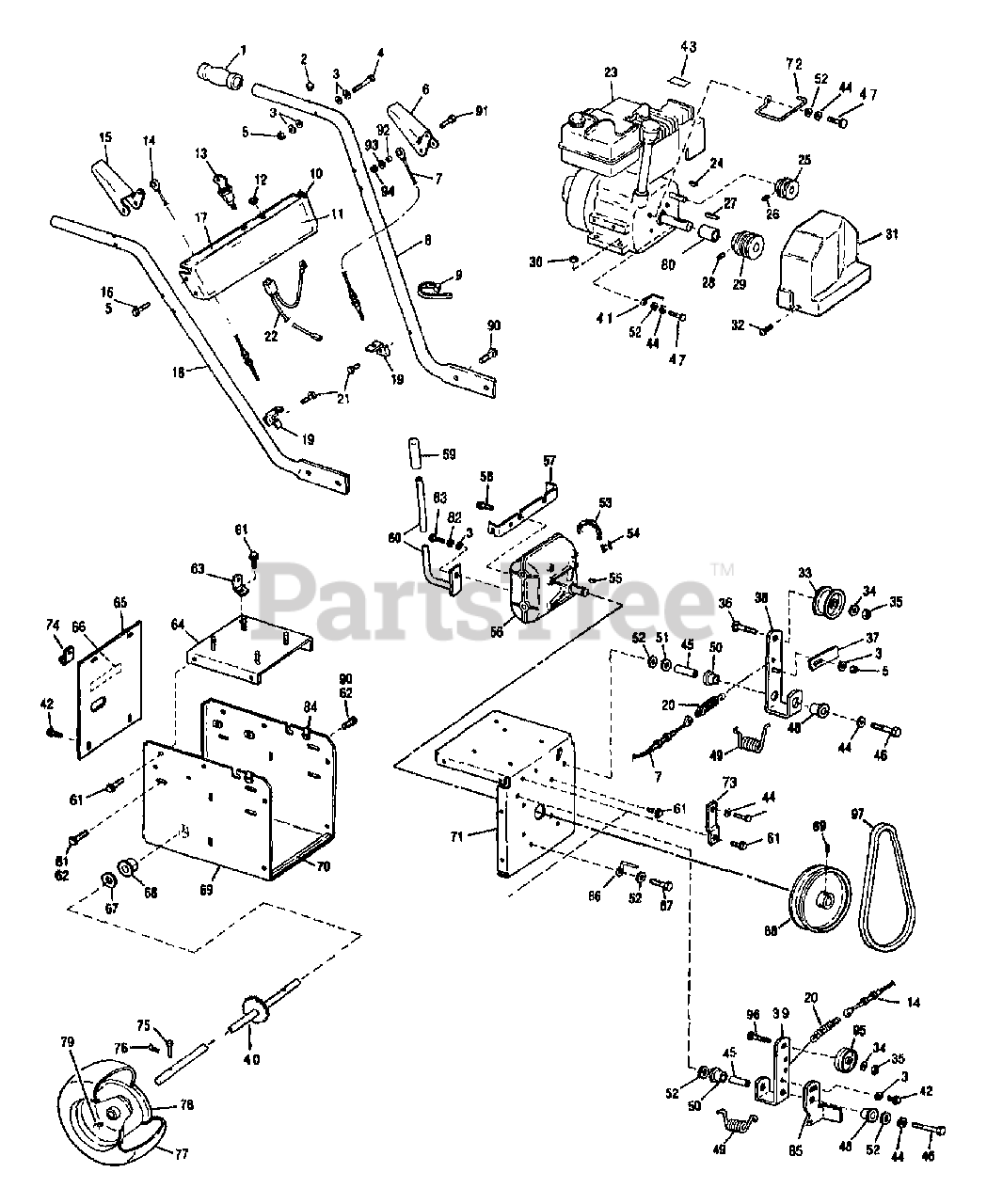

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1750782

GRIP-HANDLE

$

$

Currently unavailable

2

MTD 1750796

BUMPER-RUBBER

$

$

Not available

3

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

4

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

5

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

Troy-Bilt 1745672001

LEVER-CONTROL

$

$

Not available

7

Troy-Bilt 1756078

CABLE-CONTROL
(Superseded to 1771727P)

$101.99

$

In Stock, Qty 6

0

8

MTD 1754176GAR

HANDLEBAR-LH

$

$

Not available

9

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

10

MTD 1748492GAR

CONSOLE

$

$

Not available

11

Troy-Bilt 1757855

DECAL-LOGO @ DEPL

$

$

Currently unavailable

12

MTD 1185585

GROMMET-FLIP

$

$

Not available

13

Troy-Bilt 1727321

SWITCH-IGN W/HDW & KEYS
(Superseded to 925-0873)

$

$

Not available

13

MTD 1718266

KEY-IGNITION

$

$

Not available

14

Troy-Bilt 1756078

CABLE-CONTROL
(Superseded to 1771727P)

$101.99

$

In Stock, Qty 6

0

15

MTD 1745673001

LEVER-CONTROL

$

$

Not available

16

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

17

MTD 1757851

DECAL-INST

$

$

Not available

18

MTD 1754177GAR

HANDLEBAR-RH

$

$

Not available

19

Troy-Bilt 1749977

BRKT-CONTROL CABLE
(Superseded to 1749977001)

$

$

Not available

20

MTD 1752500

SPRING-EXT

$

$

Not available

21

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

22

MTD 1740404

ASSM-LEAD

$

$

Not available

23

0

ENGINE, TECUMSEH MODEL HSSK50-67257F

$

$

Not available

24

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available

25

MTD 1740121

SHEAVE-PTO

$

$

Not available

26

MTD 1100113

SCR-SET 1/4-20X3/8 CONE

$

$

Not available

27

Troy-Bilt 1108852

KEY-.187 SQ X .75

$

$

Not available

28

MTD 1185596

SCR-SET 5/16-18 X 5/16

$

$

Not available

29

MTD 1752211

SHEAVE-ENGINE

$

$

Not available

30

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

31

MTD 1757892

COVER-BELT SC

$

$

Not available

32

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

33

MTD 1729440

PULLEY-IDLER

$

$

Not available

34

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

36

MTD 1740130

SCR-CARR 3/8-16X1.50 G5 ZP

$

$

Not available

37

MTD 1751017

STOP-IDLER ARM

$

$

Not available

38

MTD 1751019

ASSM-IDLER ARM

$

$

Not available

39

MTD 1748443

ARM-IDLER

$

$

Not available

40

Troy-Bilt 1754525

ASSM-AXLE

$

$

Currently unavailable

41

Troy-Bilt 1720717

GUIDE-BELT

$

$

Not available

42

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

43

MTD 1754328

DECAL-WARN.HOT SURFACES

$

$

Not available

44

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 1748659

SPACER-.5X.334X1.79

$

$

Not available

46

MTD 1111608

SCR-HH 5/16-18X2.5

$

$

Not available

47

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

48

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

49

MTD 1740102

SPRING-TORSION

$

$

Not available

50

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

Usually ships in 3-6 days

0

51

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

52

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

53

MTD 1740103

CHAIN-DRIVE #41

$

$

Not available

54

Troy-Bilt 1185013

LINK-CONNECTOR #41 CHAIN
(Superseded to 913-0723)

$

$

Not available

55

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

56

0

PEERLESS MODEL TRANSMISSION

$

$

Not available

57

MTD 1740139GAR

BRKT-REINFORCMENT

$

$

Not available

58

Troy-Bilt 1740496

SCR-HFLK 5/16-18X.625 STH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 1737041

GRIP-HANDLE
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

60

MTD 1749290GAR

ASSM-SHIFT HANDLE

$

$

Not available

61

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

62

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

63

MTD 1754424

SUPPORT-CRANK

$

$

Not available

64

Troy-Bilt 1748617GAR

ASSM-DOUBLER PLATE

$

$

Currently unavailable

65

MTD 1749291GAR

COVER-REAR

$

$

Not available

66

MTD 1757862

DECAL-SHIFT

$

$

Not available

67

MTD 1739463

WASHER-FLAT

$

$

Not available

68

Troy-Bilt 1739470

BEARING-FLANGE

$36.99

$

In Stock, Qty 7

0

69

MTD 1756065GAR

ASSM-FRAME

$

$

Not available

70

MTD 1750799

PAD-RUBBER

$

$

Not available

71

MTD 1749299GAR

ASSM-FRAME COVER

$

$

Not available

72

MTD 1754163

GUIDE-BELT

$

$

Not available

73

MTD 1754158

BRKT-ENGINE SUPPORT

$

$

Not available

74

Troy-Bilt 1754159

CLAMP-CABLE
(Superseded to 726-0175)

$

$

Not available

75

MTD 1724760

PIN-CLEVIS .25X1.88

$

$

Not available

76

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

77

MTD 1755828

TIRE-4.10/3.50 X 4.00

$

$

Not available

78

MTD 1757891

RIM-WHEEL

$

$

Not available

79

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

80

MTD 1740124

SPACER-1.03X.875X1.25

$

$

Not available

?81

MTD 1100029

SCR-HH 5/16-24X.75 G5 ZP

$

$

Not available

82

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

Troy-Bilt 1100002

SCR-HH 1/4-28X.75 G5 ZP
(Superseded to 710-0412)

$5.99

$

In Stock, Qty 9

0

84

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

85

MTD 1752228

ARM-BRAKE

$

$

Not available

86

MTD 1750704

GUIDE-BELT

$

$

Not available

87

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

MTD 1740127

SHEAVE-TRANS

$

$

Not available

89

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

90

Troy-Bilt 1186328

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

91

Troy-Bilt 1741455

SCR-HH #10-24X.875 G5 @ DE

$

$

Currently unavailable

92

MTD 1746888

SPACER

$

$

Not available

93

Troy-Bilt 1802230

WASHER-.505X.22X.05
(Superseded to 1103959)

$4.99

$

In Stock, Qty 14

0

94

Troy-Bilt 1741460

NUT-HFLK 10-24
(Superseded to 1186387)

$

$

Not available

95

Troy-Bilt 1710566

IDLER-FLAT

$

$

Currently unavailable

96

MTD 1748393

SCR-CARR 3/8-16X1.75 G5 ZP

$

$

Not available

97

Troy-Bilt 1746379

BELT-V
(Superseded to 1720938)

$46.99

$

In Stock, only 3 left!

0

Troy-Bilt 1756276

CHAINS-521 SNOWTHROWER

$

$

Currently unavailable
