5210 R - Troy-Bilt 21" Snow Thrower (SN: B270100101 - B270299999) TRANSMISSION BREAKDOWN Parts Diagram

21" Snow Thrower

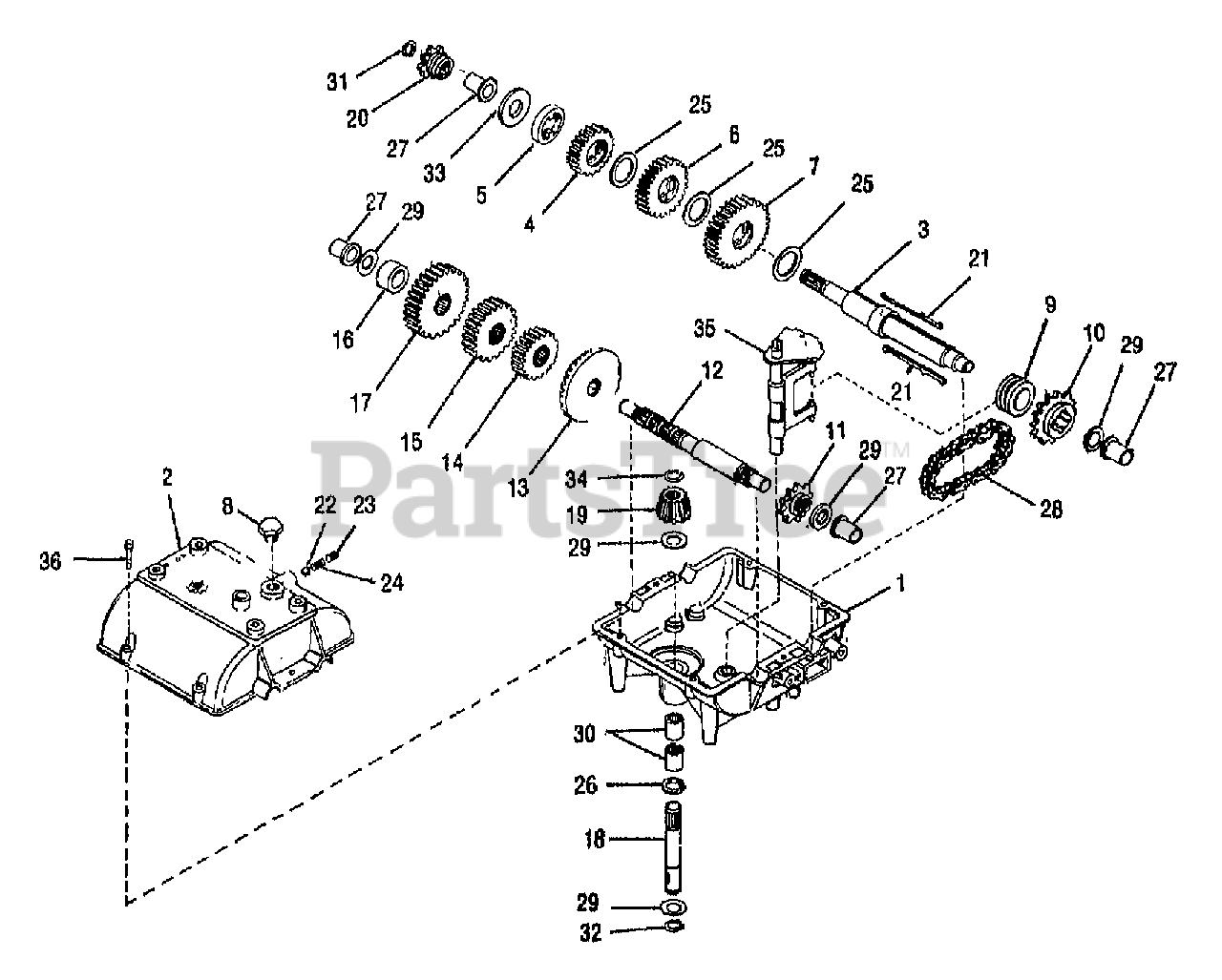

TRANSMISSION BREAKDOWN Parts Diagram

  • Title
1

Troy-Bilt 770061

TRANSMISSION CASE

$

$

Currently unavailable

$

$

Currently unavailable

3

Troy-Bilt 776171

OUTPUT SHAFT

$

$

Currently unavailable

4

Troy-Bilt 778121A

SPUR GEAR

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Troy-Bilt 778124A

SPUR GEAR
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 778125

SPUR GEAR

$

$

Currently unavailable

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Troy-Bilt 786060

SPROCKET

$

$

Currently unavailable

11

Troy-Bilt 786061

SPROCKET

$

$

Currently unavailable

12

Troy-Bilt 776134

COUNTERSHAFT

$

$

Currently unavailable

13

Troy-Bilt 778137A

BEVEL GEAR
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

14

Troy-Bilt 778136

SPUR GEAR

$

$

Currently unavailable

15

Troy-Bilt 778126A

SPUR GEAR

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Troy-Bilt 778129A

SPUR GEAR

$

$

Currently unavailable

18

Troy-Bilt 776135

INPUT SHAFT

$

$

Currently unavailable

19

Troy-Bilt 778113A

INPUT PINION
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 786047

SPROCKET

$

$

Currently unavailable

21

Troy-Bilt 792089A

SHIFT KEY

$

$

Currently unavailable

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Troy-Bilt 792079

SPRING
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

25

Troy-Bilt 780108

WASHER
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

26

Troy-Bilt 792001

O RING
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 9

0

27

Troy-Bilt 780105A

BUSHING
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

28

Troy-Bilt 786062

ROLLER CHAIN

$

$

Currently unavailable

29

Troy-Bilt 780072

WASHER
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780086

NEEDLE BEARING

$

$

Currently unavailable

31

Troy-Bilt 792072

RET RING

$

$

Currently unavailable

32

Troy-Bilt 792035

RET RING
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

33

$

$

Currently unavailable

34

Troy-Bilt 788040

RET RING

$

$

Currently unavailable

35

Troy-Bilt 784270

ROD & FORK

$

$

Currently unavailable

36

$

$

Currently unavailable
