5210 R - Troy-Bilt 21" Snow Thrower (SN: B270100101 - B270299999) GEAR CASE ASSEMBLY Parts Diagram

21" Snow Thrower

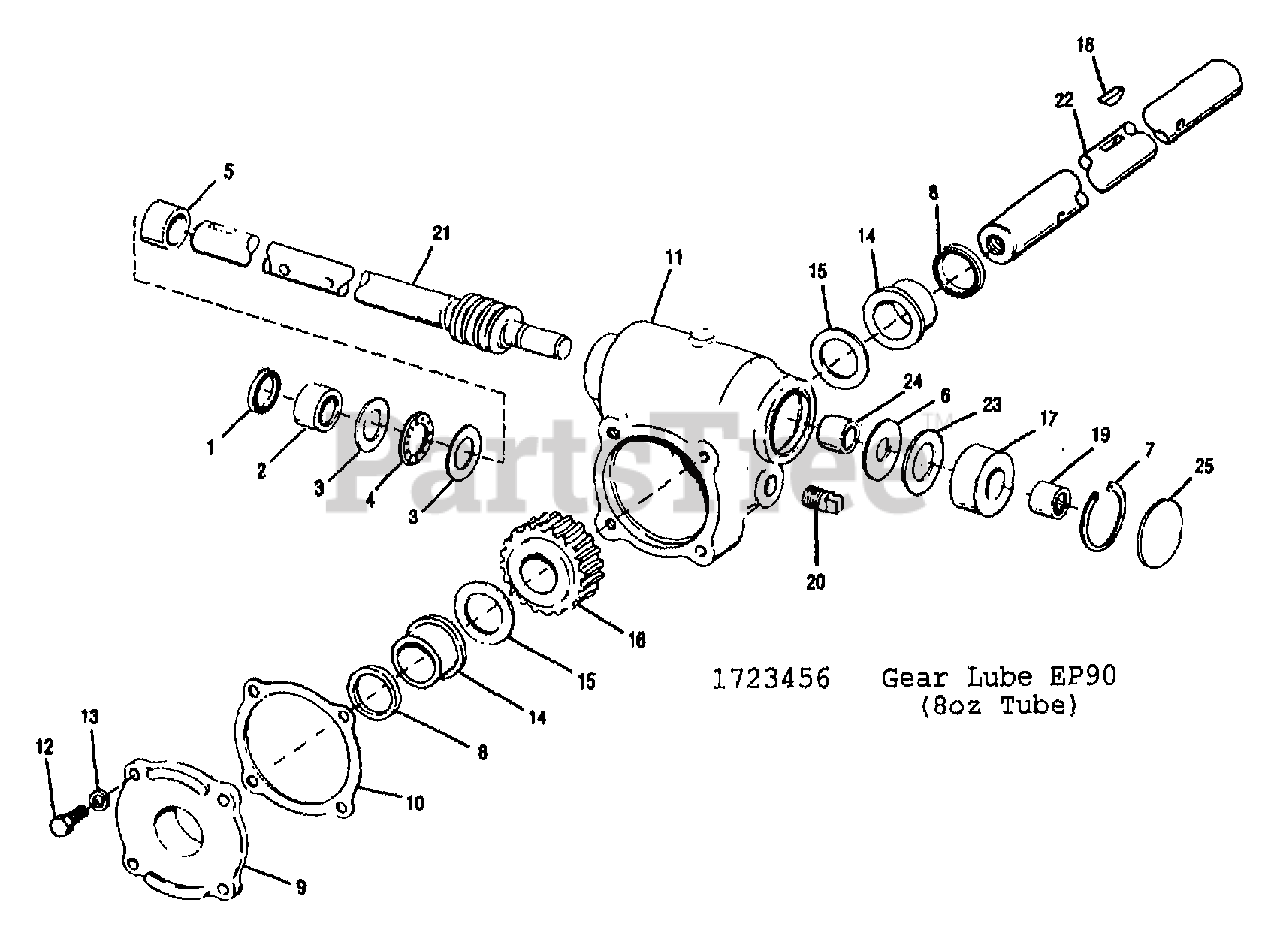

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1185224

SEAL-OIL 3/4 DIAMETER

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 1185374

BEARING-NEEDLE
(Superseded to 741-0665)

$21.99

$

In Stock, only 2 left!

0

3

MTD 1185841

RACE-THRUST

$

$

Not available

4

Troy-Bilt 1185431

BEARING-THRUST
(Superseded to IH-324105-R92)

$11.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1741774

SPACER-1.0X.752X.302

$11.99

$

Usually ships in 3-6 days

0

6

MTD 1185842

WASHER

$

$

Not available

7

MTD 1118726

RING-RETAINING INTERNAL

$

$

Not available

8

Troy-Bilt 1185266

SEAL-OIL
(Superseded to 921-0175)

$9.99

$

In Stock, Qty 8

0

9

MTD 1720910GAR

COVER-FLANGED

$

$

Not available

10

MTD 1720941

GASKET-COVER

$

$

Not available

11

MTD 1735894GAR

CASE ONLY-GEAR

$

$

Not available

12

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

Troy-Bilt 1185728

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1185815

RACE-THRUST
(Superseded to 736-0745)

$12.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1720933

GEAR-WORM 20 TEETH

$

$

Not available

17

MTD 1720763

SPACER-1.503X.749X.56

$

$

Not available

18

Troy-Bilt 1100276

KEY-WOODRUFF .25X.875

$3.49

$

Usually ships in 3-6 days

0

19

MTD 1185568

BEARING-NEEDLE

$

$

Not available

20

Troy-Bilt 1105620

PLUG-SQ HEAD 1/4-18 NPT

$4.49

$

In Stock, only 4 left!

0

21

MTD 1740468

ASSM-SHAFT IMPELLER 21"

$

$

Not available

22

MTD 1740472

SHAFT-AUGER

$

$

Not available

23

Troy-Bilt 1185840

RACE-THRUST

$

$

Not available

24

MTD 1741775

SPACER-.812X.566X.448

$

$

Not available

25

Troy-Bilt 1112634

PLUG-EXPANSION

$

$

Not available

Troy-Bilt 1723456

LUBE-EP90 8OZ

$

$

Currently unavailable
