5210 R - Troy-Bilt 21" Snow Thrower (SN: B270100101 - B270299999) BLOWER HOUSING ASSEMBLY Parts Diagram

21" Snow Thrower

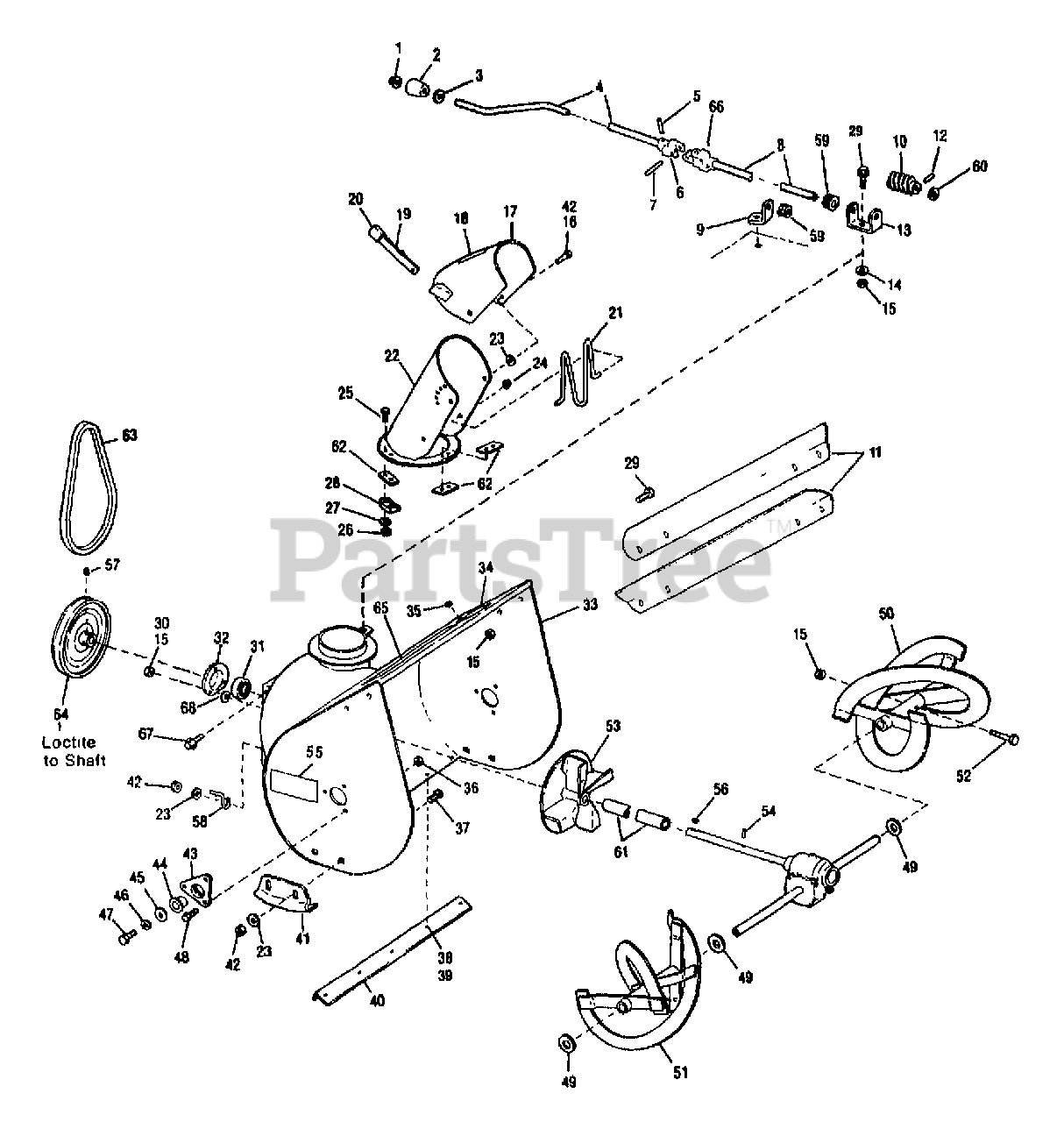

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

2

Troy-Bilt 1735868

KNOB
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1890945

WASHER-FLAT .375DIA
(Superseded to 936-0140)

$

$

Not available

4

MTD 1756066

CRANK-CHUTE CONTROL

$

$

Not available

5

Troy-Bilt 1185389

PIN-ROLL .156X.75
(Superseded to 715-0119)

$

$

Not available

6

Troy-Bilt 1756063

ASSM-U JOINT

$

$

Currently unavailable

7

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

8

MTD 1756067

SHAFT-CHUTE CONTROL

$

$

Not available

9

Troy-Bilt 1744424

CRANK SUPPORT

$

$

Currently unavailable

10

MTD 1724870

GEAR-WORM LH

$

$

Not available

11

Troy-Bilt 1715427GAR

KIT-SLICER DRIFT (2)

$

$

Currently unavailable

12

Troy-Bilt 1724885

PIN-DRIVE .09X.75

$

$

Not available

13

MTD 1735869

SUPPORT-GEAR

$

$

Not available

14

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 10

0

15

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

17

Troy-Bilt 1749275GAR

CAP

$

$

Currently unavailable

18

MTD 1750692

DECAL-WARNING

$

$

Not available

19

MTD 1723643

LEVER-ADJUSTING

$

$

Not available

20

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

21

MTD 1722501

GUARD-CHUTE

$

$

Not available

22

MTD 1749280GAR

ASSM-CHUTE @DEPL1771723010

$

$

Not available

23

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

24

MTD 1186048

NUT-PUSH 3/16

$

$

Not available

25

Troy-Bilt 1752461

SCR-HW M10-24X.88 EXTTOOTH

$4.99

$

In Stock, Qty 13

0

26

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

27

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

28

Troy-Bilt 1724869

CLIP-HOLD DOWN
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

30

MTD 1103195

SCR-HH 5/16-18X.63 G5

$

$

Not available

31

Troy-Bilt 1185809

BEARING-BALL
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

32

MTD 1739488

RETAIN-BEARING

$

$

Not available

33

Troy-Bilt 1749260GAR

HOUSING ASSY

$

$

Currently unavailable

34

MTD 1750691

DECAL-WARNING

$

$

Not available

35

MTD 1750969

PLUG

$

$

Not available

36

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

37

Troy-Bilt 1186126

BOLT-3/8-16 X 3/4
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

38

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1712059

SCR-CARR 5/16-18X.50 G5 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1749281GAR

BLADE-SCRAPER
(Superseded to 1749281010)

$48.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1728567GAR

RUNNER-SKIP
(Superseded to 1728567001)

$

$

Not available

42

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

43

MTD 1720922

SUPPORT-BEARING

$

$

Not available

44

MTD 1185846

BUSHING-FLANGE

$

$

Not available

45

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

46

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

47

MTD 1100053

SCR-HH 1/2-13X.75 G5 ZP

$

$

Not available

48

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1740491STB

ASSM-AUGER BLADE LH

$

$

Currently unavailable

51

MTD 1740490STB

ASSM-AUGER BLADE RH

$

$

Not available

52

Troy-Bilt 1750515

SCR-SHEAR 5/16-18X1.75

$8.49

$

In Stock, Qty 10

0

53

MTD 1740462STB

ASSM-IMPELLER

$

$

Not available

54

Troy-Bilt 1185348

PIN-ROLL 1/4 X 1-1/4
(Superseded to 915-0143)

$

$

Not available

55

MTD 1757861

DECAL-HOUSING SIDE

$

$

Not available

56

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

58

MTD 1750703

GUIDE-BELT

$

$

Not available

59

MTD 1714243

BUSHING-NYLON

$

$

Not available

60

MTD 1724892

WASHER-BOW .75X.385X.01

$

$

Not available

61

MTD 1753356

SLEEVE

$

$

Not available

62

Troy-Bilt 1752460

SHIM

$4.99

$

In Stock, Qty 10

0

63

Troy-Bilt 1752194

BELT-V 36.00

$32.99

$

In Stock, only 4 left!

0

64

MTD 1752212

SHEAVE-AUGER DRIVE

$

$

Not available

65

Troy-Bilt 1757859

DECAL-LOGO

$

$

Currently unavailable

66

Troy-Bilt 1756062

U-JOINT YOKO

$

$

Currently unavailable

67

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

68

MTD 1719271

SHIM-1.75X1.26X.02

$

$

Not available
