521 SSE (621502x37NA) - Husqvarna 21" Snow Blower (2006-11) Top Cover Group Parts Diagram

21" Snow Blower

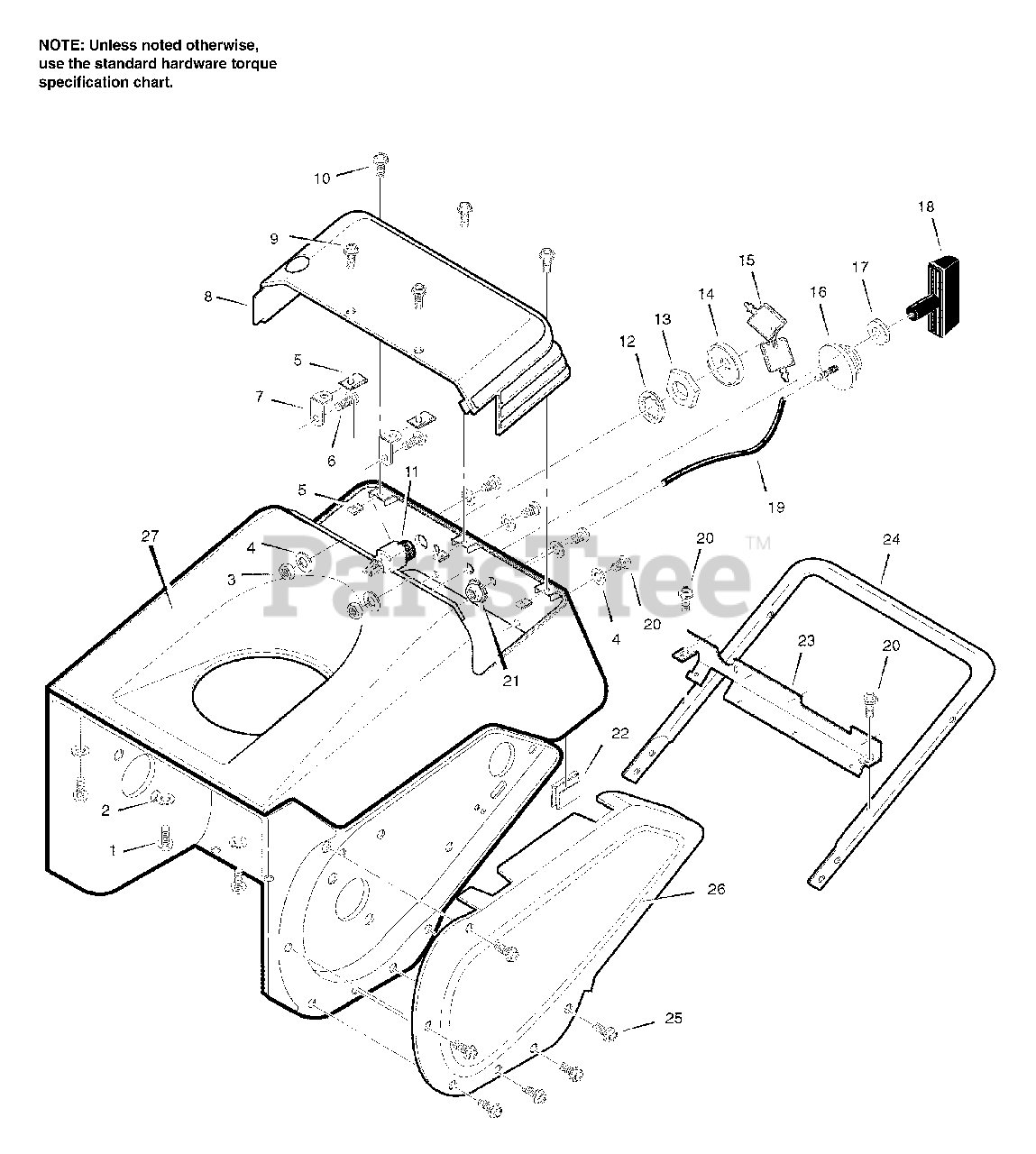

Top Cover Group Parts Diagram

  • Title

1

Husqvarna 601001787

SCREW 10-14 x .63

$

$

Not available

2

Husqvarna 601400084

WASHER, FLAT

$

$

Not available

3

Husqvarna 601400078

NUT, LOCK 10-24

$

$

Not available

4

Husqvarna 601001703

WASHER, FLAT

$

$

Not available

5

Husqvarna 601001788

NUT, U TYPE

$

$

Not available

6

Husqvarna 601400002

SCREW 10-24 x .50

$

$

Not available

7

Husqvarna 601400040

BRACKET, ACCESS COVER

$

$

Not available

8

Husqvarna 601400012

COVER, ENGINE ACCESS

$

$

Not available

9

Husqvarna 601400039

SCREW 10-16 x .62

$

$

Not available

10

Husqvarna 601400041

SCREW 10-16 x .75

$

$

Not available

11

Husqvarna 601001358

IGNITION SWITCH

$

$

Not available

12

Husqvarna 601400044

WASHER, INTERNAL LOCK

$

$

Not available

13

Husqvarna 601000111

NUT, .62-32 PLASTIC

$

$

Not available

14

Husqvarna 601000112

BOOT, SWITCH

$

$

Not available

15

Husqvarna 601400076

KEYS & RING

$28.99

$

Usually ships in 3-10 days

0

16

Husqvarna 601001362

PRIMER BULB

$

$

Not available

17

Husqvarna 601400070

GROMMET & WASHER

$

$

Not available

18

Husqvarna 601400056

KNOB, STANDARD T

$

$

Not available

19

Husqvarna 601001363

HOSE, PRIMER

$

$

Not available

20

Husqvarna 601400034

SCREW 10-24 x .63

$

$

Not available

21

Husqvarna 601001790

NUT .25-20 KEPS

$

$

Not available

22

Husqvarna 601400042

CLIP, S

$

$

Not available

23

Husqvarna 601400031

BRACKET, SHROUD MTG

$

$

Not available

24

Husqvarna 601400035

LOWER HANDLE

$

$

Not available

25

Husqvarna 601400036

SCREW 10-24 x .38

$

$

Not available

26

Husqvarna 601400024

COVER, BELT

$

$

Not available

27

Husqvarna 601400010

COVER, TOP

$

$

Not available
